YRKK710-6W 1850 kW 4160 V High Voltage Wound Rotor Slip Ring Motor and TRQ-1850 kW Liquid Resistor Starter Cabinet were shipped for Peru on Sep. 1
Update time：01th,Sep,2020

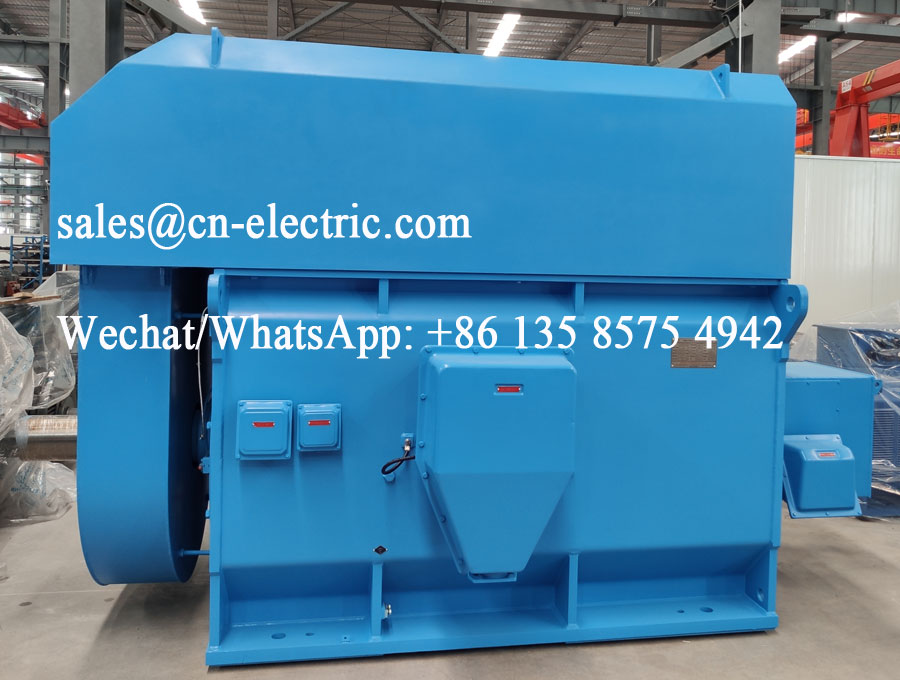

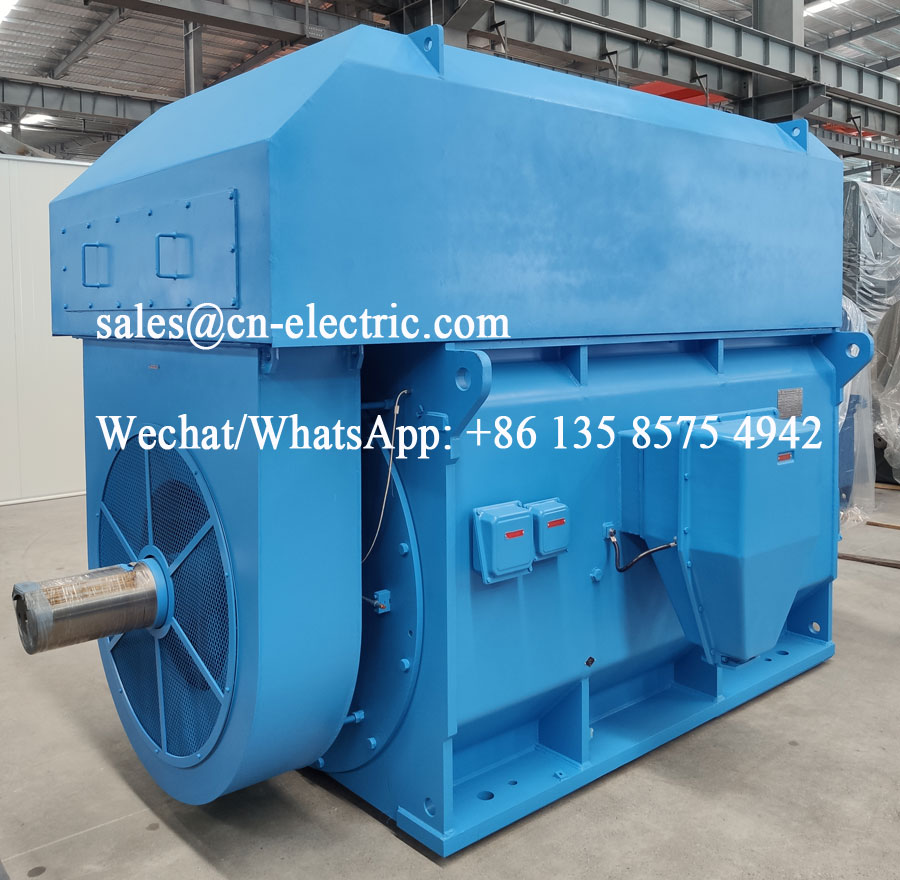

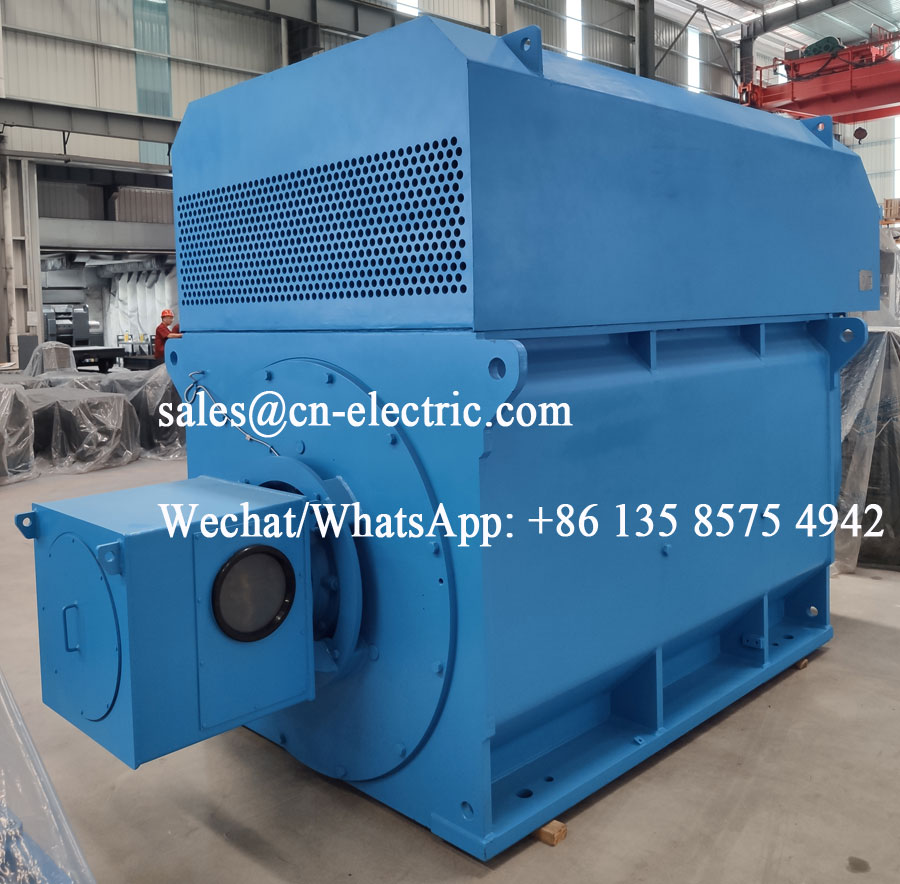

1 PC YRKK710-6W outdoor installation 1850 kW 4160 V High Voltage Wound Rotor Slip Ring Motor and 1 PC TRQ-1850 kW Liquid Resistor Starter Cabinet were shipped for Callao, Peru on Sep. 1st, 2020.Main Parameter for YRKK710-6W 1850 kW 4160 V High Voltage Wound Rotor Slip Ring Motor:
Type: YRKK710-6W Power factor: 0.83 Rated power: 1850 kW
Mounting: IMB3 Duty: S1 continuous Insulation class F
Stator voltage: 4160 V Stator current: 300.5 A Stator connection: Y star
Rotor voltage: 1793 V Rotor current: 633.2 A Rotor connection: Y star
Cooling type: IC611 Enclosure protection: IP55 outdoor Rated speed: 1191 r/min
Bearing brand: SKF Rated frequency: 60 Hz
With 8 pcs PT100 in windings and bearings.
With 220 V 60 Hz single phase anti-condensation space heater

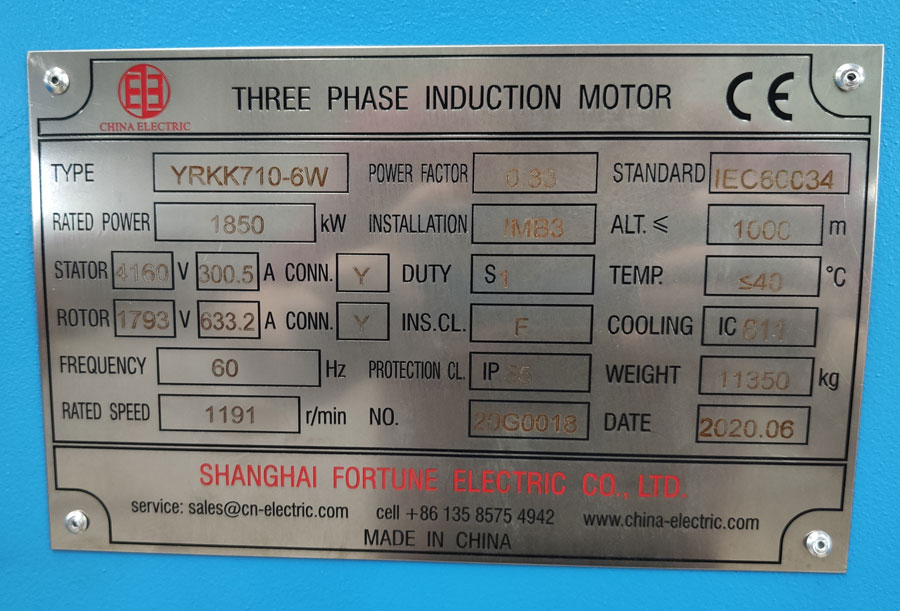

Nameplate for YRKK710-6W 1850 kW 4160 V High Voltage Wound Rotor Slip Ring Motor
Pictures for Nameplate for YRKK710-6W 1850 kW 4160 V 60 Hz 3 Phase High Voltage Wound Rotor Slip Ring Motor
