Z4-315-22 315 kW 1000/1800 rpm Armature 600 V Field 214.63 V ICW37A86 Air-Water Cooled DC Motor with speed switch was shipped for Saudi Arabia on Sep. 2
Update time：02th,Sep,2020
1 PC Z4-315-22 315 kW 1000/1800 rpm Armature 600 V, Field 214.63 V, ICW37A86 Air-Water Cooled DC Motor with encoder & speed switch was shipped for Jeddah, Saudi Arabia on Sep. 2nd, 2020.Model: Z4-315-22 Rated power: 315 kW Rated speed: 1000 rpm Max speed: 1800 rpm
Armature voltage: 600 V Armature current: 569 A Field voltage: 214.63 V Field current: 14.5 A
Cooling type: ICW37A86 Protection: IP54 Insulation class F Duty: S1 continuous
Bearing brand: SKF Mounting: B3 (IM1001)
With PTC in windings and PT100 in bearings.
With 220 V 60 Hz single phase anti-condensation space heater
With encoder and speed switch, type HVS1024B1/208.809/A-SB1980 C-2A-1104K/1104K

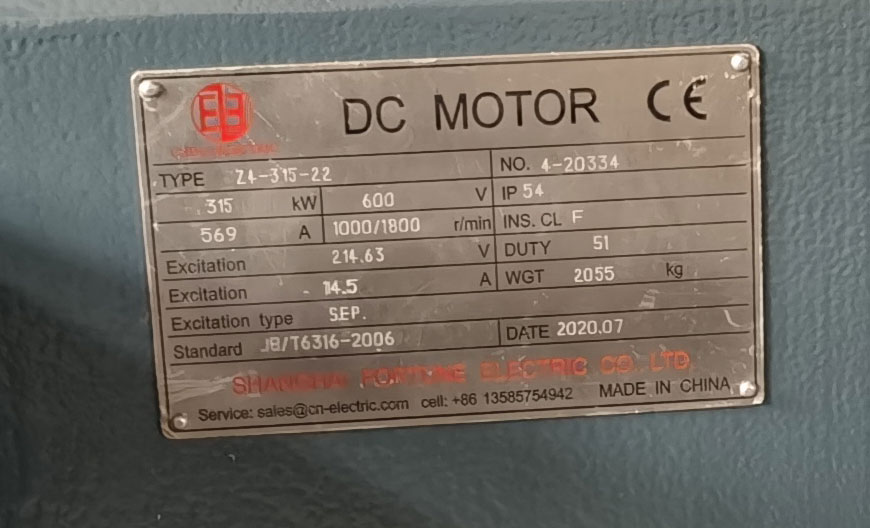

Nameplate for Z4-315-22 315 kW 1000/1800 rpm 600 V DC Motor

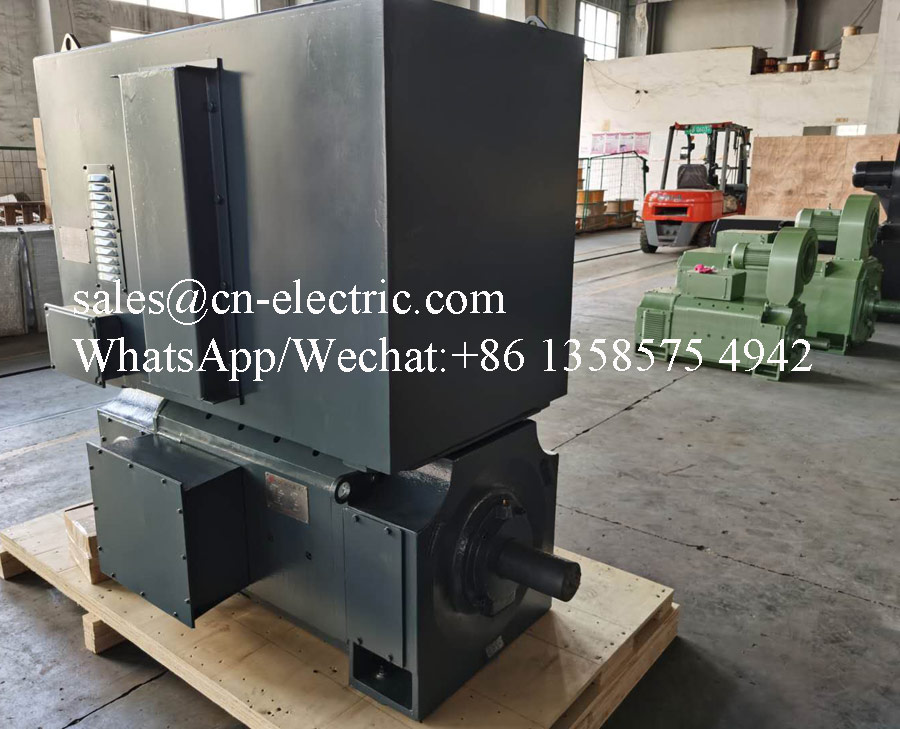

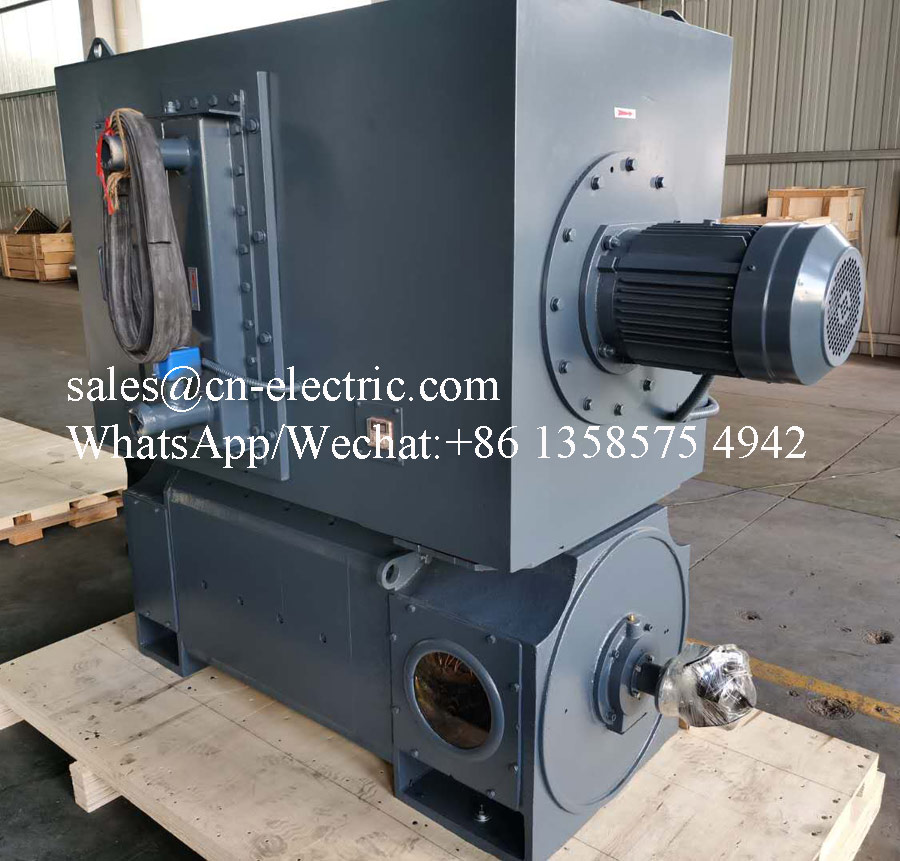

Pictures for Z4-315-22 315 kW 1000/1800 rpm 600 V DC Motor

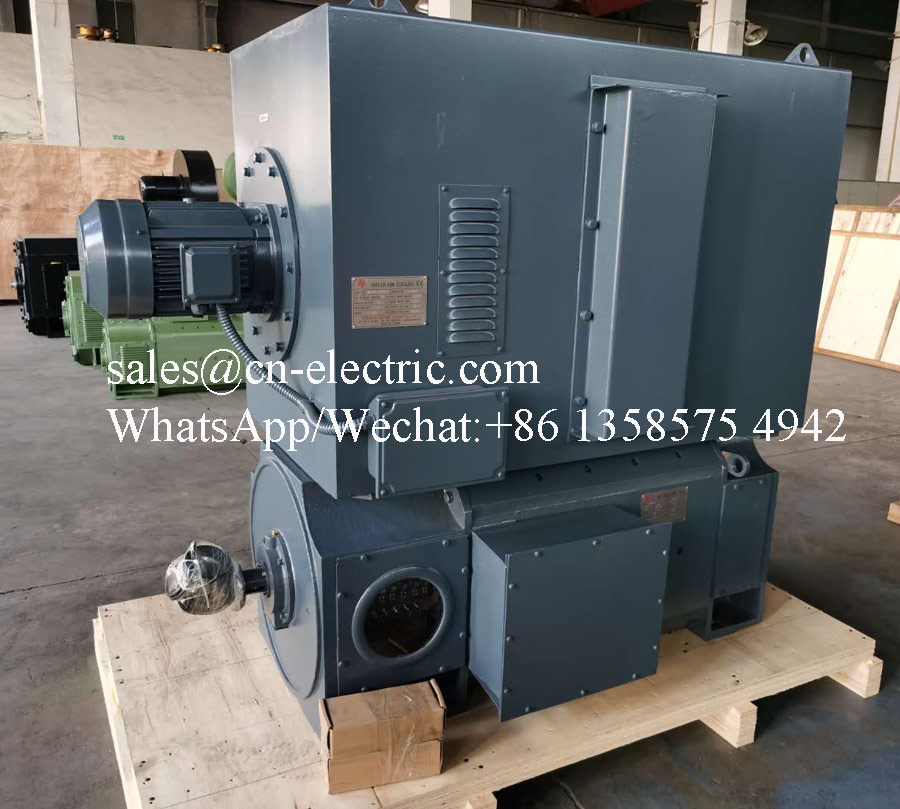

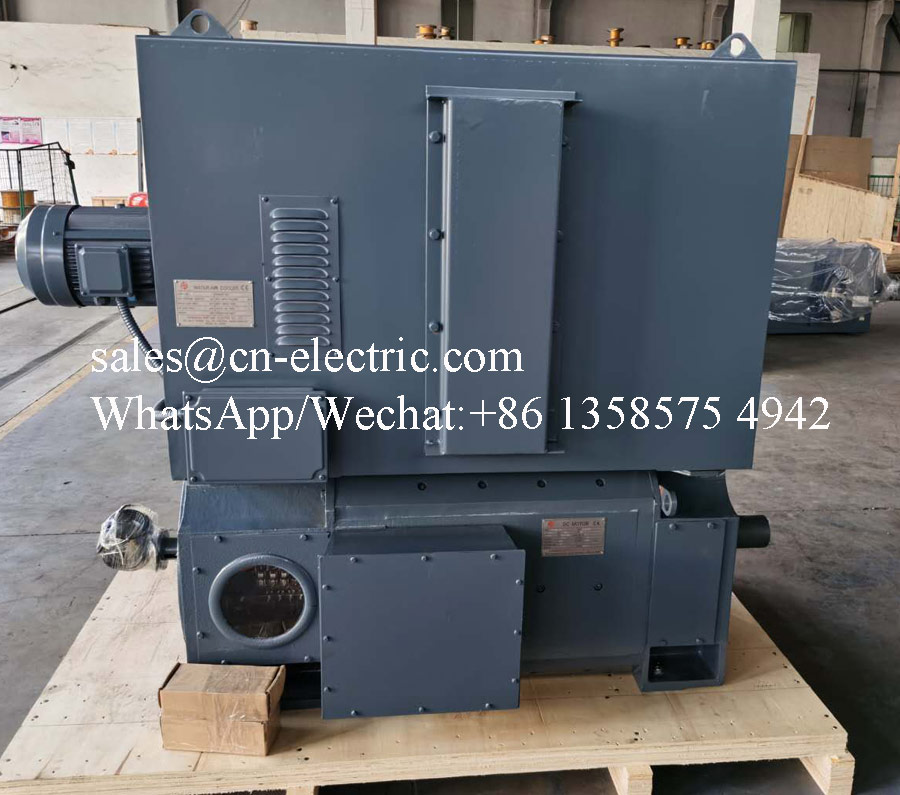

Pictures for Z4-315-22 315 kW 1000/1800 rpm 600 V DC Motor
The encoder and speed switch, type HVS1024B1/208.809/A-SB1980 C-2A-1104K/1104K
