YKK710-10 1600 kW 6000 V 50 Hz 3 Phase High Voltage Squirrel Cage Motor for driving industrial fan was shipped for RUSSIA on Aug. 29
Update time：29th,Aug,2020
1 PC YKK710-10 1600 kW 6000 V 50 Hz 3 Phase High Voltage Squirrel Cage Motor for driving big industrial fan was shipped for VLADIVOSTOK COMMERCIAL PORT, RUSSIA on August 29th, 2020.Moment of flywheel for the fan's rotor GD2：20000 kg.m2
Main Parameter for YKK710-10 1600 kW 6000 V High Voltage Squirrel Cage Motor:
Type: YKK710-10 Power factor: 0.82 Rated power: 1600 kW
Mounting: IMB3 Duty: S1 continuous Insulation class F
Rated voltage: 6000 V Rated current: 197 A Stator connection: Y star
Cooling type: IC611 Enclosure protection: IP54 Rated speed: 594 r/min
Bearing brand: SKF Rated frequency: 50 Hz
With 8 pcs PT100 in windings and bearings.
With 220 V 50 Hz single phase anti-condensation space heater

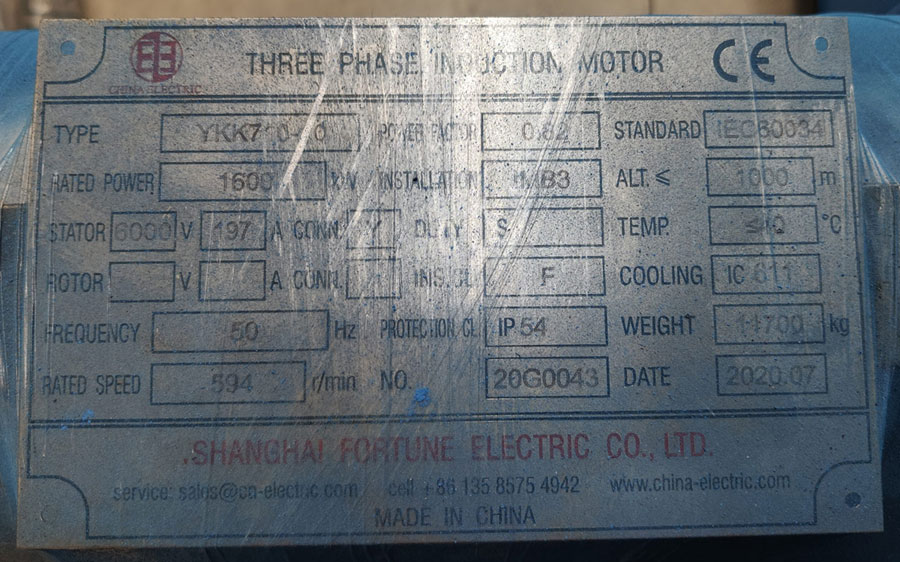

Nameplate for YKK710-10 1600 kW 6000 V 50 Hz 3 Phase High Voltage Squirrel Cage Motor

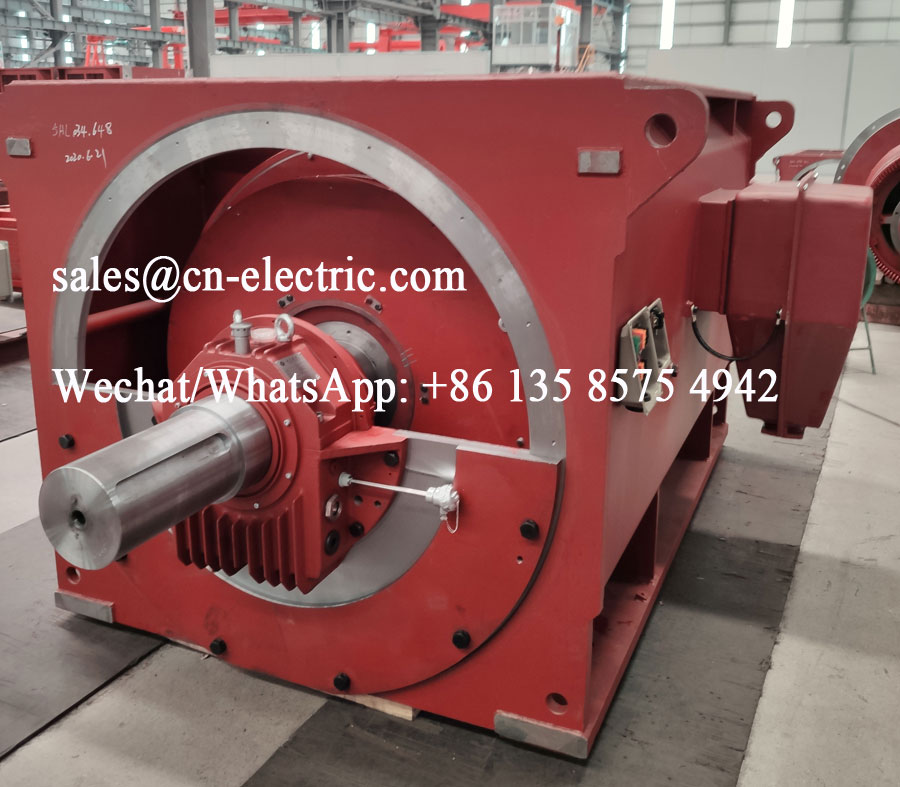

Pictures for YKK710-10 1600 kW 6000 V 50 Hz 3 Phase High Voltage Squirrel Cage Motor
