Z4-315-32 434 kW 1530-1700 rpm armature voltage 600 VDC field 310 V IC17 IP23S DC Electric Motor was shipped for Pakistan on April 22

Update time：22th,Apr,2021

1 PC Z4-315-32 434 kW 1530-1700 rpm armature voltage 600 VDC field 310 V IC17 IP23S DC Electric Motor was shipped for Karachi, Pakistan on April 22nd, 2021.

Main parameters:
Model: Z4-315-32                              Rated power: 434 kW              Rated speed: 1530 rpm        Max speed: 1700 rpm
Armature voltage: 600 VDC               Armature current: 767 A           Field voltage: 310 VDC         Field current: 7 A
Cooling type: IC17                              Protection: IP23S                   Insulation class H                  Duty: S1 continuous
Bearing brand: SKF                            Mounting: IMB3 (IM1001)

With PT100 in windings and bearings.

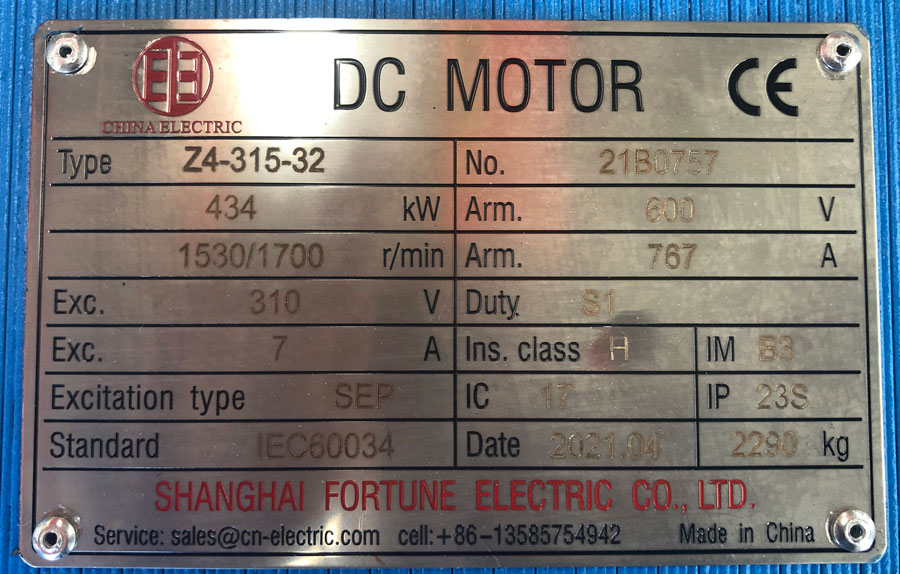

Nameplate for Z4-315-32 434 kW 1530/1700 rpm, armature voltage 600 V DC Electric Motor

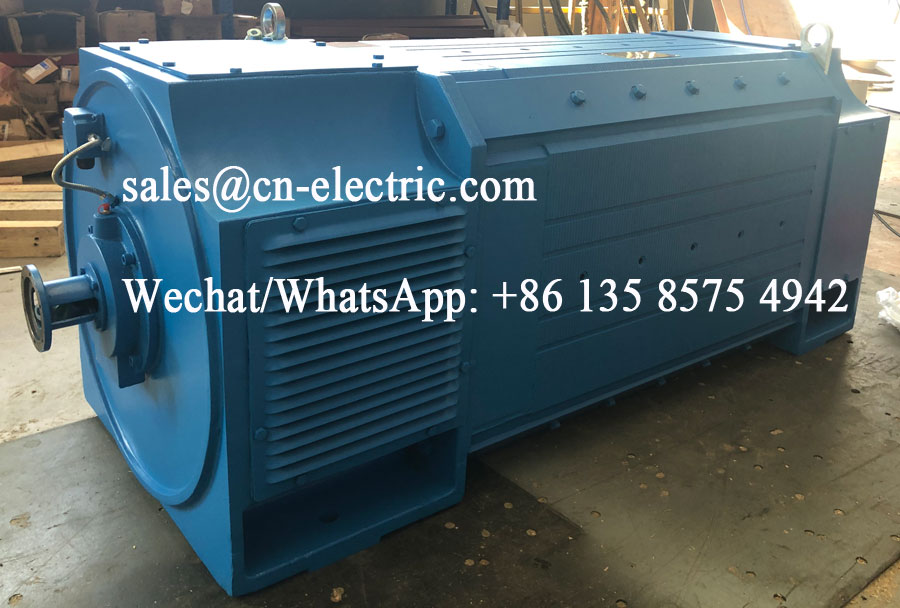

Pictures for Z4-315-32 434 kW 1530/1700 rpm, armature voltage 600 V DC Electric Motor
