YRKK630-8 900 kW 6 kV 50 Hz 3 Phase High Voltage Wound Rotor Slip Ring Motor for driving Ball Mill was shipped for IRAN on April 20
Update time：20th,Apr,2021
1 PC YRKK630-8 900 kW 6 kV 50 Hz 3 Phase High Voltage Wound Rotor Slip Ring Motor for driving Ball Mill was shipped for BANDAR ABBAS PERSIAN GULF, IRAN on April 20th, 2021.Main Parameters for YRKK630-8 900 kW 6000 V High Voltage Wound Rotor Slip Ring Motor:
Type: YRKK630-8 Power factor: 0.81 Rated power: 900 kW
Mounting: IMB3 (IM1001) Duty: S1 continuous Insulation class F
Stator voltage: 6000 V Stator current: 113.4 A Stator connection: Y star
Rotor voltage: 1064 V Rotor current: 508 A Rotor connection: Y star
Cooling type: IC666 Enclosure protection: IP55 Rated speed: 743 r/min
Bearing brand: FAG Rated frequency: 50 Hz
With 8 pcs PT100 in windings and bearings.
With 220 V 50 Hz single phase anti-condensation space heater

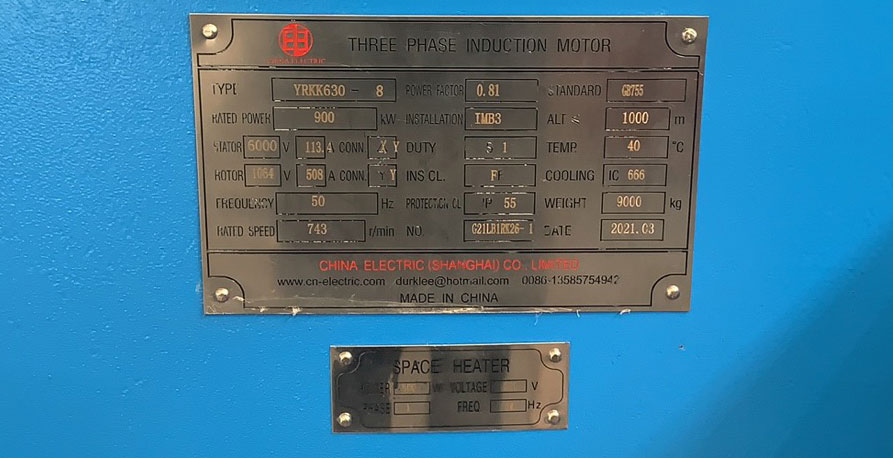

Nameplate for YRKK630-8 900 kW 6000 V High Voltage Wound Rotor Slip Ring Motor

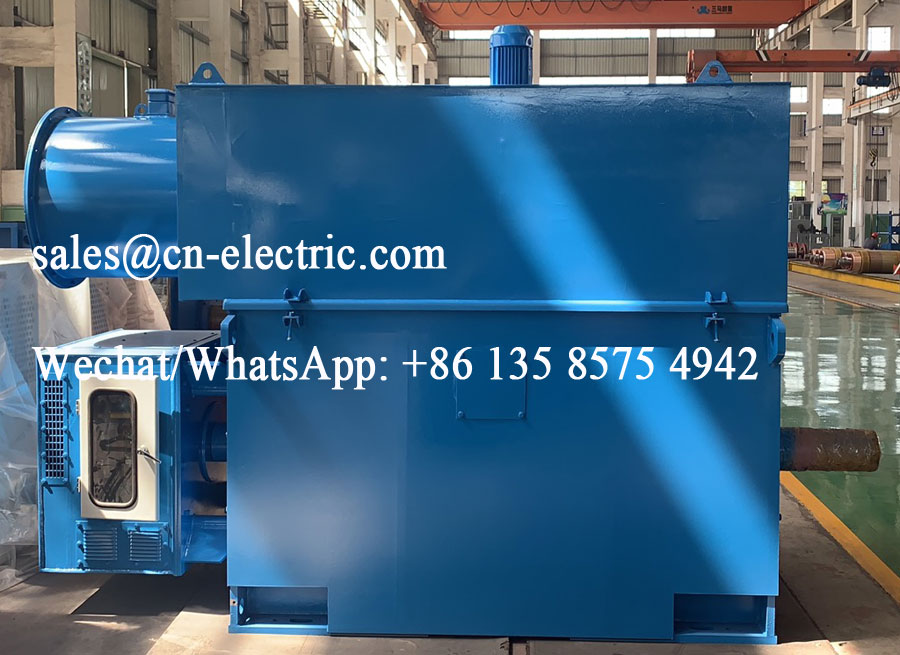

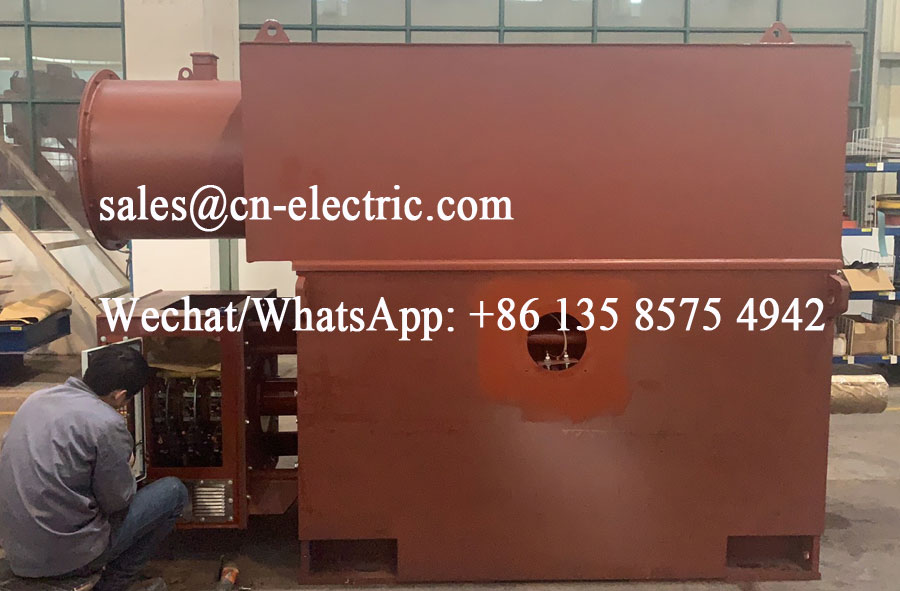

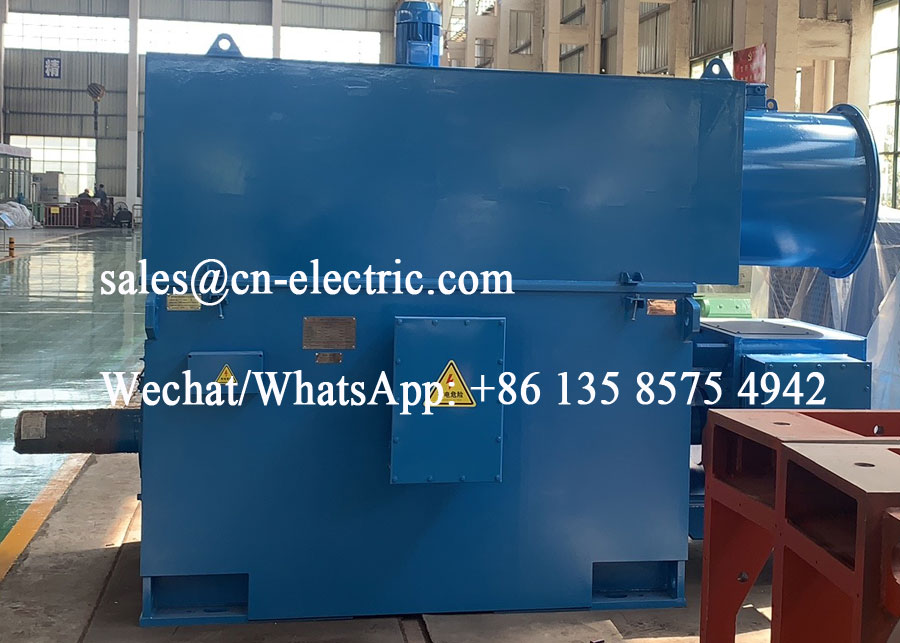

Pictures for YRKK630-8 900 kW 6000 V High Voltage Wound Rotor Slip Ring Motor
