500kw 600V 1300/1800rpm DC Motor Z4-355-22 was shipped for Thailand Feb.16, 14

Update time：15th,Feb,2014

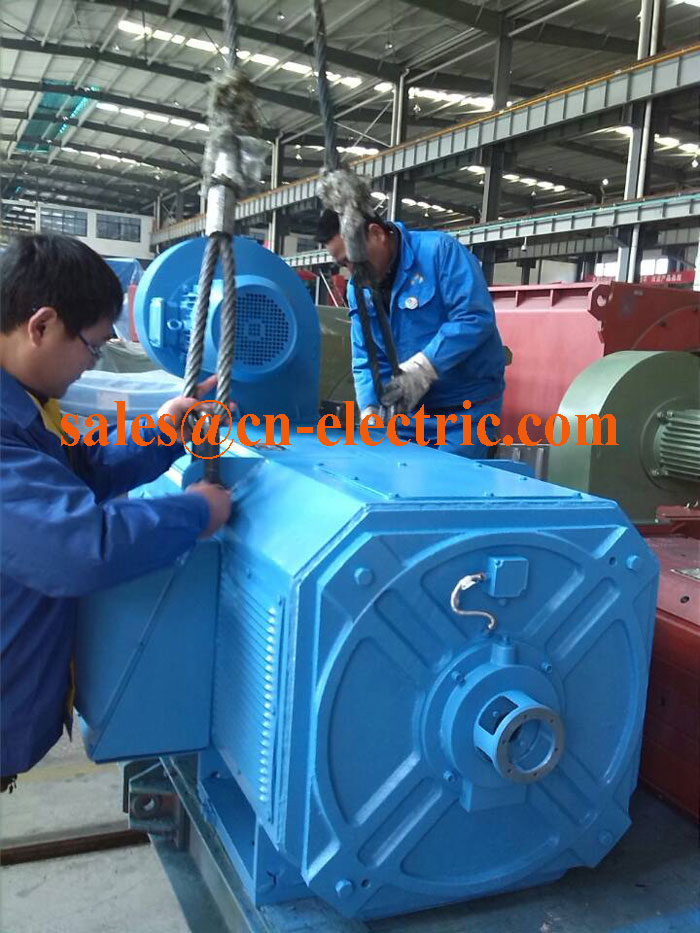

1pc 500kw, 600VDC armature voltage, 310VDC field voltage, 1300/1800rpm, DC Motor Z4-355-22 was shipped for Bangkok, Thailand on Feb. 16th, 2014

1. Insulation: class H, Temperature rise: F
2. Mounting Type: IMB3 (IM1001, Horizontal, foot mounted, without flange)
3. With PT100 in all windings and both side of bearing (total 6 pcs.)
4. With CE Certification
5. Prepare mounting for encoder feedback
6. Duty: S1
7. Protection rating: IP23

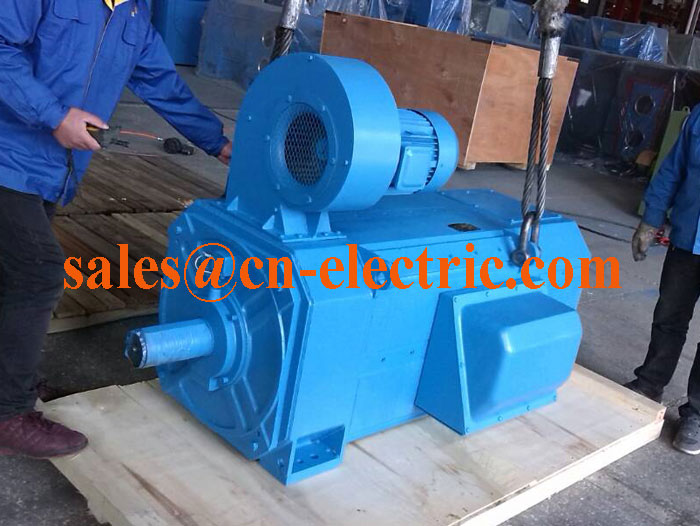

8. Cooling Method: IC06 (cooling by blower, with air inlet filter, mounted on top of Driving End, power supply for blower:3phase/380V/50Hz)
9. Max. Ambient temperature 40oC, Max. Altitude 1000m
10. Bearing: SKF from Sweden
11. Bearing type: rolling bearing
12. Overload capacity: 200% 60sec
13. Terminal box position: right hand side seeing from driving end.
14. Rotation: Bi-direction
15. With Epoxy paint
16. Excitation type: separate excitation
17. Coupling type: Direct Coupling
18. Shaft extension: single cylindrical shaft extension
19. With space heater 220V
