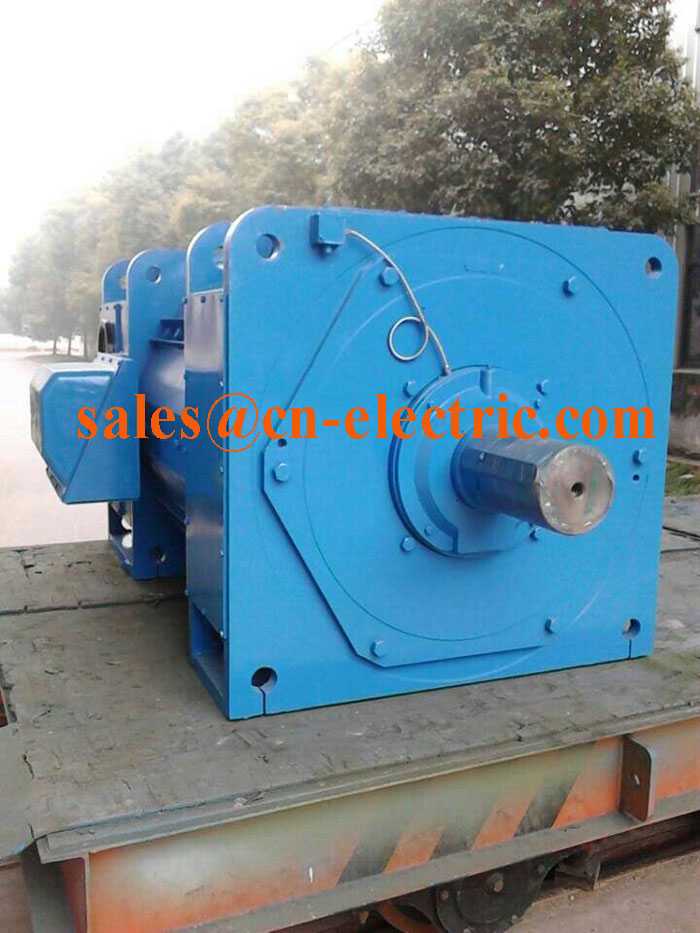

1pc 800kw DC Motor Z560-4B was shipped for India by airplane on Jan.12, 2014.

armature voltage 660VDC

Field voltage 310VDC

Speed 410/1100rpm

1. Insulation: class F
2. Mounting Type: IMB3 ( IM1001 )
3. Winding with 4pcs PT100 for each motor. Each bearing with 1pc of PT100
4. single shaft extension
5. Prepare mounting flange and protection frame for encoder as buyer"s request, encoder is prepared by buyer,
6. Duty: S1
7. Protection rating: IP44
8. Cooling: ICW37A86 (cooler is prepared by buyer, connection flange for cooler by seller),
9. Max. Ambient temperature 40oC, Max. Altitude 1000m
10. Bearing brand: NSK
11. With space heater, power supply 230V/50Hz/single phase.
12. Terminal box: at right side see from the driving end
