Y2 Series IC411 TEFC Compacted Medium High Voltage Squirrel Cage Motor
Payment Terms: 30% in advance, balance by T/T or L/C at sight
Minimum Order: 1 Piece
Package: plywood box
Brand Name: ELE
Motor Type Squirrel-cage
Structure Compacted struction
Protection: Normal IP54
Cooling: Normal IC411
Insulation: Normal class F
Mounting: Normal IMB3
Ambient condition: Normal Temperature ≤40℃, Normal Altitude ≤1000m

PREV YKK Series IC611 IC616 Air-Air Cooled Medium High Vol…

Product Details Data sheet Mounting and Overall Dimensions
  •   · Features and application
    Y2 Series motors are Medium-Size High voltage 3-Phase Squirrel cage motor with compact construction. The protection class is IP54. Ideal for the power of compressor, fan, pump and crusher etc.
    Y2 Series motors are general for compressor, water pump, crack machine, cut machine, transportation machine and


    Y2 Series motors are high efficiency and energy saving and reliable performance, the motor is the new generation of YKK series motor, which has smaller volume and lighter weight.
    The altitude doesn’t exceed 1000m above sea level. The ambient temperature subjects to seasonal variations but not exceeding 40G.

    Comparison of different series High Voltage motors

    No.

    Squirrel-cage motor

    Y

    YKK

    YKS

    Y2

    Slip-ring motor

    YR

    YRKK

    YRKS

    /

    1

    Structure

    Box-type construction, made up of steel plates welded with each other

    Compact struction

    2

    Cooling method

    IC01 or (IC11, IC21, IC31)

    IC611 or IC616

    IC81W

    IC411

    3

    Natural ventilation, with top mounted protection cover

    With top mounted air-air cooler

    With top mounted air-water cooler

    　

    4

    Protection type

    IP23

    IP44 or IP54

    IP44 or IP54

    IP54

    5

    Insulation

    F

    6

    Mounting arrangement

    IMB3

    7

    Voltage available

    3kv, 3.3kv;     6kv, 6.6kv;     10kv, 11kv

    8

    Frequency available

    50Hz , 60Hz

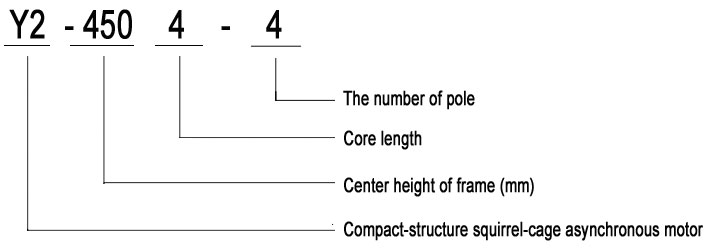

         · Model explanation

  •
    6000V   50Hz  IP54   IC411
    Type
    Rated Power
    kW
    Rated speed
    r/min
    Full Load
    Breakdown Torque
    Rated Torque
    Locked Rotor Torque
    Rated Torque
    Locked Rotor Current
    Rated Current
    Current
    A
    Eff.
    %
    Power Factor
    cosΦ
    Y2-355 1-2
    185
    2982
    22.6
    93.9
    0.84
    3
    0.7
    7.0
    Y2-355 2-2
    200
    2984
    24.4
    94.0
    0.84
    3.2
    0.7
    7.0
    Y2-355 3-2
    220
    2979
    26.8
    94.2
    0.84
    2.6
    0.7
    7.0
    Y2-355 4-2
    250
    2981
    30.3
    94.4
    0.84
    2.7
    0.7
    7.0
    Y2-355 5-2
    280
    2977
    33.1
    94.6
    0.86
    2.4
    0.7
    7.0
    Y2-400 1-2
    315
    2985
    37.2
    94.8
    0.86
    3
    0.7
    7.0
    Y2-400 2-2
    355
    2985
    41.9
    94.9
    0.86
    3
    0.7
    7.0
    Y2-400 3-2
    400
    2984
    47.1
    95.1
    0.86
    3
    0.7
    7.0
    Y2-400 4-2
    450
    2984
    52.9
    95.2
    0.86
    3
    0.7
    7.0
    Y2-450 1-2
    500
    2984
    58.0
    95.3
    0.87
    2.7
    0.7
    7.0
    Y2-450 2-2
    560
    2984
    64.9
    95.4
    0.87
    2.8
    0.7
    7.0
    Y2-450 3-2
    630
    2985
    73.0
    95.5
    0.87
    3
    0.7
    7.0
    Y2-450 4-2
    710
    2986
    82.1
    95.7
    0.87
    3.2
    0.7
    7.0
    Y2-500 1-2
    800
    2988
    91.5
    95.6
    0.88
    3
    0.7
    7.0
    Y2-500 2-2
    900
    2988
    102.8
    95.7
    0.88
    3
    0.7
    7.0
    Y2-500 3-2
    1000
    2988
    114.0
    95.9
    0.88
    3
    0.7
    7.0
    Y2-500 4-2
    1120
    2988
    127.6
    96
    0.88
    3
    0.7
    7.0
    Y2-560 1-2
    1250
    2990
    140.6
    96.1
    0.89
    3
    0.8
    6.5
    Y2-560 2-2
    1400
    2990
    157.2
    96.3
    0.89
    3
    0.8
    6.5
    Y2-560 3-2
    1600
    2990
    179.3
    96.5
    0.89
    3
    0.8
    6.5
    Y2-355 1-4
    185
    1488
    22.6
    93.7
    0.84
    2.5
    0.8
    6.5
    Y2-355 2-4
    200
    1488
    24.4
    93.9
    0.84
    2.4
    0.8
    6.5
    Y2-355 3-4
    220
    1487
    26.8
    94.1
    0.84
    2.4
    0.8
    6.5
    Y2-355 4-4
    250
    1488
    30.4
    94.3
    0.84
    2.2
    0.8
    6.5
    Y2-355 5-4
    280
    1487
    33.9
    94.5
    0.84
    2.2
    0.8
    6.5
    Y2-400 1-4
    315
    1489
    37.7
    94.6
    0.85
    2.5
    0.8
    6.5
    Y2-400 2-4
    355
    1489
    42.4
    94.8
    0.85
    2.5
    0.8
    6.5
    Y2-400 3-4
    400
    1490
    47.7
    95
    0.85
    2.5
    0.8
    6.5
    Y2-400 4-4
    450
    1489
    53.5
    95.2
    0.85
    2.5
    0.8
    6.5
    Y2-450 1-4
    500
    1488
    58.7
    95.3
    0.86
    2.2
    0.8
    6.5
    Y2-450 2-4
    560
    1488
    65.7
    95.4
    0.86
    2.2
    0.8
    6.5
    Y2-450 3-4
    630
    1489
    73.8
    95.5
    0.86
    2.2
    0.8
    6.5
    Y2-450 4-4
    710
    1489
    83.1
    95.6
    0.86
    2.3
    0.8
    6.5
    Y2-500 1-4
    800
    1492
    93.5
    95.7
    0.86
    2.3
    0.8
    6.5
    Y2-500 2-4
    900
    1491
    105.1
    95.8
    0.86
    2.3
    0.8
    6.5
    Y2-500 3-4
    1000
    1491
    116.7
    95.9
    0.86
    2.2
    0.8
    6.5
    Y2-500 4-4
    1120
    1491
    130.5
    96
    0.86
    2.2
    0.8
    6.5
    Y2-560 1-4
    1250
    1493
    143.9
    96.1
    0.87
    2
    0.8
    6.5
    Y2-560 2-4
    1400
    1493
    161.0
    96.2
    0.87
    2
    0.8
    6.5
    Y2-560 3-4
    1600
    1493
    183.6
    96.4
    0.87
    2
    0.8
    6.5
    Y2-355 3-6
    160
    988
    20.6
    93.4
    0.8
    2.1
    0.8
    6.0
    Y2-355 4-6
    185
    988
    23.8
    93.5
    0.8
    2.1
    0.8
    6.0
    Y2-355 5-6
    200
    989
    25.7
    93.6
    0.8
    2.2
    0.8
    6.0
    Y2-400 1-6
    220
    993
    27.5
    93.8
    0.82
    2.3
    0.8
    6.0
    Y2-400 2-6
    250
    993
    31.2
    93.9
    0.82
    2.1
    0.8
    6.0
    Type
    Rated power
    kW
    Rated speed
    r/min
    Full Load
    Breakdown Torque
    Rated Torque
    Locked Rotor Torque
    Rated Torque
    Locked Rotor Current
    Rated Current
    Current
    A
    Eff.
    %
    Power Factor
    cosΦ
    Y2-400 3-6
    280
    993
    34.9
    94.1
    0.82
    2.1
    0.8
    6.0
    Y2-400 4-6
    315
    992
    39.2
    94.3
    0.82
    2
    0.8
    6.0
    Y2-450 1-6
    355
    991
    43.6
    94.5
    0.83
    2.1
    0.8
    6.0
    Y2-450 2-6
    400
    991
    49.0
    94.6
    0.83
    2.1
    0.8
    6.0
    Y2-450 3-6
    450
    991
    55.1
    94.7
    0.83
    2.2
    0.8
    6.0
    Y2-450 4-6
    500
    992
    		61.1
    94.9
    0.83
    2.2
    0.8
    6.0
    Y2-500 1-6
    560
    994
    68.3
    95.1
    0.83
    2.2
    0.8
    6.0
    Y2-500 2-6
    630
    994
    76.7
    95.2
    0.83
    2.2
    0.8
    6.0
    Y2-500 3-6
    710
    994
    86.4
    95.3
    0.83
    2.1
    0.8
    6.0
    Y2-500 4-6
    800
    994
    97.2
    95.4
    0.83
    2
    0.8
    6.0
    Y2-560 1-6
    900
    995
    107.8
    95.6
    0.84
    2.3
    0.7
    6.0
    Y2-560 2-6
    1000
    995
    119.7
    95.7
    0.84
    2.3
    0.7
    6.0
    Y2-560 3-6
    1120
    995
    133.9
    95.8
    0.84
    2.3
    0.7
    6.0
    Y2-560 4-6
    1250
    995
    149.3
    95.9
    0.84
    2.3
    0.7
    6.0
    Y2-400 1-8
    160
    744
    21.7
    93.2
    0.76
    2.2
    0.8
    5.5
    Y2-400 2-8
    185
    743
    25.1
    93.3
    0.76
    2.1
    0.8
    5.5
    Y2-400 3-8
    200
    743
    26.7
    93.5
    0.77
    2.1
    0.8
    5.5
    Y2-400 4-8
    220
    743
    29.3
    93.7
    0.77
    2
    0.8
    5.5
    Y2-450 1-8
    250
    744
    32.8
    93.9
    0.78
    2.1
    0.8
    5.5
    Y2-450 2-8
    280
    743
    36.7
    94.1
    0.78
    2.1
    0.8
    5.5
    Y2-450 3-8
    315
    743
    41.3
    94.2
    0.78
    2
    0.8
    5.5
    Y2-450 4-8
    355
    743
    46.4
    94.4
    0.78
    2
    0.8
    5.5
    Y2-500 1-8
    400
    744
    51.6
    94.5
    0.79
    2
    0.8
    5.5
    Y2-500 2-8
    450
    745
    57.9
    94.6
    0.79
    2.3
    0.8
    5.5
    Y2-500 3-8
    500
    745
    63.4
    94.8
    0.8
    2.1
    0.8
    5.5
    Y2-500 4-8
    560
    745
    71.0
    94.9
    0.8
    2
    0.8
    5.5
    Y2-560 1-8
    630
    746
    78.7
    95.1
    0.81
    2.1
    0.7
    5.5
    Y2-560 2-8
    710
    746
    88.5
    95.3
    0.81
    2.1
    0.7
    5.5
    Y2-560 3-8
    800
    746
    99.6
    95.4
    0.81
    2
    0.7
    5.5
    Y2-560 4-8
    900
    746
    111.8
    95.6
    0.81
    2
    0.7
    5.5
  •
    6Kv 50Hz IP54 IC411

    Frame
    poles
    Mounting Dimension
    Overall Dimension
    A
    B
    C
    D
    E
    F
    G
    H
    K
    AD
    HD
    L
    (BB)
    (AB)
    355
    2
    630±1.4
    900±1.4
    254±4
    75
    140±0.50
    22
    67.5
    355
    28
    860
    1250
    2000
    1110
    790
    4~6
    100
    210±0.57
    28
    90
    400
    2
    710±1.75
    1000±1.75
    280±4
    85
    170±0.50
    22
    76
    400
    35
    860
    1340
    2200
    1200
    870
    4~8
    110
    210±0.57
    28
    100
    450
    2
    800±1.75
    1120±1.75
    280±4
    95
    170±0.50
    25
    86
    450
    35
    930
    1200
    2310
    1340
    950
    4
    120
    210±0.57
    32
    109
    6~8
    130
    250±0.57
    119
    500
    2
    900±2.1
    1250±2.1
    C"±4
    110
    210±0.57
    28
    100
    500
    42
    970
    1280
    2610
    1490
    1080
    4
    315±4
    130
    250±0.57
    32
    119
    6~8
    140
    36
    128
    560
    2
    1000±2.1
    1400±2.1
    C"±4
    130
    250±0.57
    32
    119
    560
    42
    1030
    1380
    2900
    1680
    1180
    4
    355±4
    150
    300±0.65
    36
    138
    6~8
    160
    40
    147
