GW-JJ Series 50kg to 3ton Coreless Medium Frequency Induction Melting Furnace
Payment Terms: 30% in advance, balance by T/T or L/C at sight
Minimum Order: 1 set
Package: plywood box and Nude
Brand Name: ELE
Capacity 10kg~5,000kg
Shell Material Aluminum
Tilting Type Mechanical (using electric motor and gear)

PREV 15~160KW IGBT Medium Frequency Induction Melting Furn… NEXT GWG-J Series 0.5~60ton Coreless Medium Frequency Indu…

  •  · Application

    This GW-JJ Series Aluminum Shell Mechanical Tilting Coreless Medium Frequency Induction Melting Furnace, also called as Induction Smelting Furnace or Induction Melting Oven is for melting cast steel, cast iron, stainless steel, copper, aluminum and other metals or its alloy. It can also be used together with self-heated furnaces and electric arc furnace for heating or keeping warm/holding the molten iron and molten steel.

    This GW-JJ Series Medium Frequency Induction Melting Furnace is particularly suited to small and medium-size enterprises, or as Precision Casting Material Test.


         · Performance

    Electrical Feature:
    1. Digital CMOS chip (U. S. ASIC-2-12), with the highest degree of integration at home, is used in control circuit, the overall machine controlled through one single panel;
    2. Frequency-sweep zero voltage start, high success rate, no shock;
    3. Automatic resistance adjustment, permanent power output, 10-20% energy saved in comparison with domestic traditional machine of the type;
    4. Auto phase sequence adaptation, free of synchronization;
    5. Good performance in reload staring, auto recovery;
    6. Highly integrated in controlling circuit, free of use of high-rate starter and relay loop, fairly low failure rate;
    7. Wholly digital design, strong in anti-interference, no temperature shift when in continuous working;
    8. Multi-protection functions (for over current, over voltage, insufficient water pressure, power failure, or phase absence), and mishandling will not cause damage to machine.

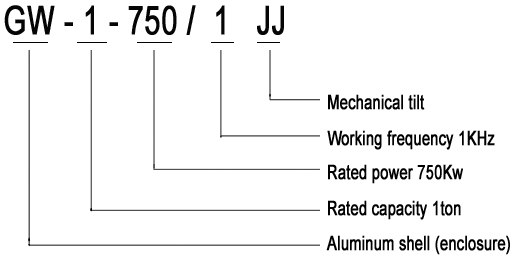

         · Model explanation



    Model

    Input Power

    Input Volt. (6pulse)

    Incoming Curr.

    Rated Power

    DC Curr.

    DC Volt.

    Melting Rate

    Working Freq.

    Working Volt.

    Rated Capacity

    Power Consumption

    Kw

    V

    A

    Kw

    A

     V

    T/H

     Hz

     V

    T

    KWH/T

    GW-0.01-50/2.5JJ

    60

    380

    76

    50

    140

    400

    0.06

    2500

    750

    0.01

    850

    GW-0.03-100/2.5JJ

    100

    380

    160

    100

    200

    500

    0.09

    2500

    750

    0.03

    850

    GW-0.05-100/2.5JJ

    100

    380

    160

    100

    200

    500

    0.12

    2500

    750

    0.05

    800

    GW-0.08-100/2.5JJ

    100

    380

    160

    100

    200

    500

    0.12

    2500

    750

    0.08

    800

    GW-0.15-100/1JJ

    100

    380

    160

    100

    200

    500

    0.15

    1000

    750

    0.15

    820

    GW-0.25-160/1JJ

    180

    380

    256

    160

    320

    500

    0.24

    1000

    750

    0.25

    790

    GW-0.5-250/1JJ

    280

    380

    400

    250

    500

    500

    0.4

    1000

    1500

    0.5

    770

    GW-0.75-400/1JJ

    400

    380

    650

    400

    800

    500

    0.6

    1000

    1500

    0.75

    770

    GW-1-500/1JJ

    550

    380

    800

    500

    1000

    500

    0.8

    1000

    1500

    1

    750

    GW-1-750/1JJ

    800

    380

    1200

    750

    1500

    500

    0.9

    1000

    1500

    1

    720/660

    690

    700

    850

    880

    500

    2600

    GW-1.5-1000/0.5JJ

    1100

    690

    912

    1000

    1140

    880

    1.2

    500

    2600

    1.5

    700

    GW-2-1500/0.5JJ

    1650

    690

    1360

    1500

    1700

    880

    1.7

    500

    2600

    2

    675

    GW-2-2000/0.5JJ

    2200

    690

    1400

    2000

    2275

    880

    1.9

    500

    2600

    2

    650

    GW-3-2500/0.5JJ

    2750

    690

    2275

    2500

    2840

    880

    2.56

    500

    2600

    3

    610/560

    950

    1700

    2080

    1250

    3200

    GW-5-4000/0.5JJ

    4400

    690

    2300

    4000

    4540

    880

    4.5

    500

    2600

    5

    500/550

    950

    2700

    3330

    1250

    3200


         · Structure
    Simple structure
    Mechanical tilting (using electric motor and gear box)
    Cast aluminum shell
    Easy maintenance

         · Equipment Constitution
    1. Furnace body----------------------------------2pcs
    2. Mechanical Tilting device--------------------2sets (electric motor & reducer, 1 set for each furnace body)
    3. Medium frequency power supply----------1pc
    4. Low voltage power cabinet----------- -----1pc
    5. Capacitor bank (capacitor cabinet)--------1set
    6. Water cooling cable--------------------------4pcs or 8pcs (connect furnace body with capacitor)
    7. Crucible mold----------------------------------1pc (for making lining)
    8. Copper bar (copper plate)------------------1set (connect capacitor with power supply)
    9. Water tanks (water box)--------------------3pcs (1 for furnace body, 1 for power supply, 1 for capacitor)

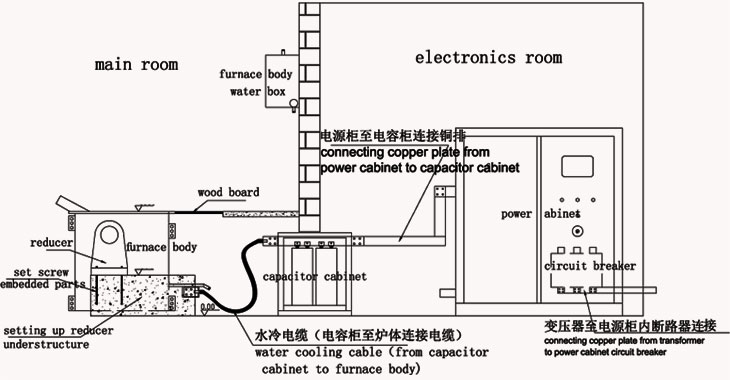

     Front View (as above)

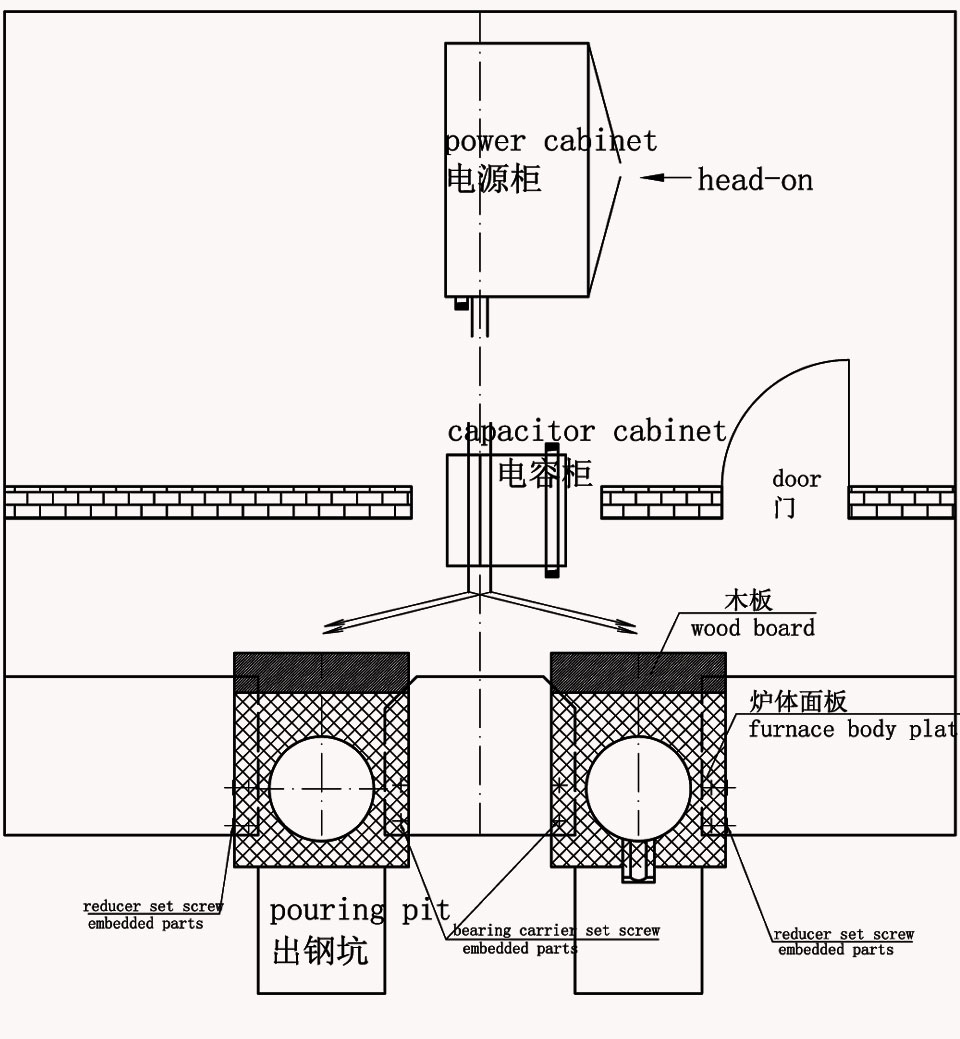

    Over View (as above)

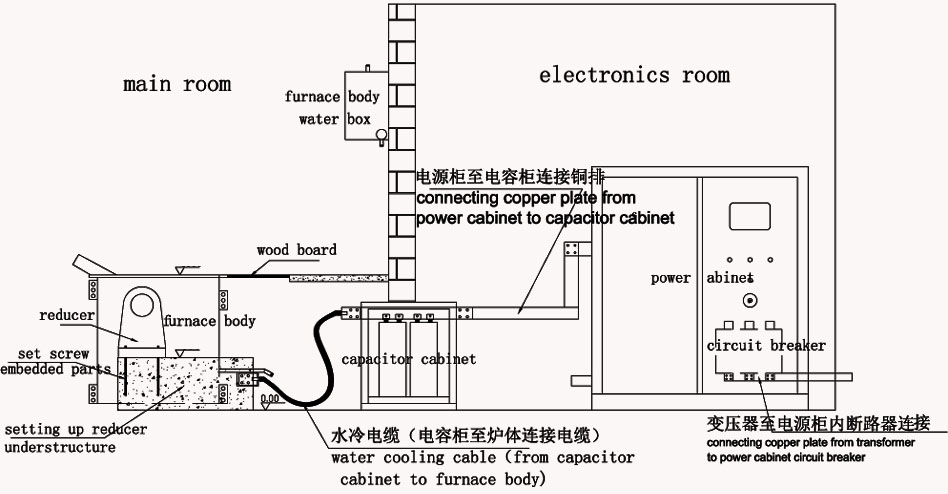

    Side View (as above)

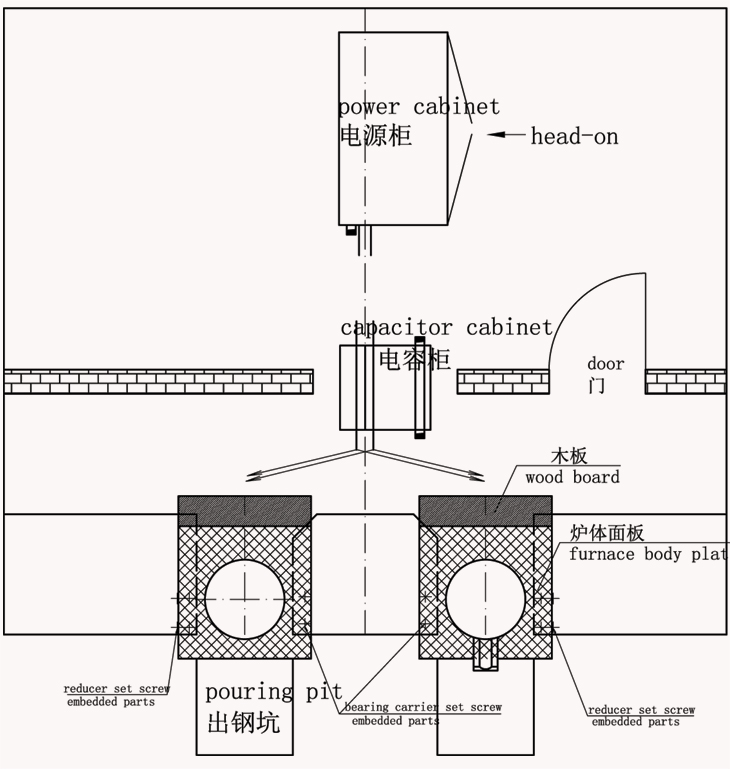

    Electric connection (side view)

  •

    Model

    Input Power

    Input Volt. (6pulse)

    Incoming Curr.

    Rated Power

    DC Curr.

    DC Volt.

    Melting Rate

    Working Freq.

    Working Volt.

    Rated Capacity

    Power Consumption

    Kw

    V

    A

    Kw

    A

     V

    T/H

     Hz

     V

    T

    KWH/T

    GW-0.01-50/2.5JJ

    60

    380

    76

    50

    140

    400

    0.06

    2500

    750

    0.01

    850

    GW-0.03-100/2.5JJ

    100

    380

    160

    100

    200

    500

    0.09

    2500

    750

    0.03

    850

    GW-0.05-100/2.5JJ

    100

    380

    160

    100

    200

    500

    0.12

    2500

    750

    0.05

    800

    GW-0.08-100/2.5JJ

    100

    380

    160

    100

    200

    500

    0.12

    2500

    750

    0.08

    800

    GW-0.15-100/1JJ

    100

    380

    160

    100

    200

    500

    0.15

    1000

    750

    0.15

    820

    GW-0.25-160/1JJ

    180

    380

    256

    160

    320

    500

    0.24

    1000

    750

    0.25

    790

    GW-0.5-250/1JJ

    280

    380

    400

    250

    500

    500

    0.4

    1000

    1500

    0.5

    770

    GW-0.75-400/1JJ

    400

    380

    650

    400

    800

    500

    0.6

    1000

    1500

    0.75

    770

    GW-1-500/1JJ

    550

    380

    800

    500

    1000

    500

    0.8

    1000

    1500

    1

    750

    GW-1-750/1JJ

    800

    380

    1200

    750

    1500

    500

    0.9

    1000

    1500

    1

    720/660

    690

    700

    850

    880

    500

    2600

    GW-1.5-1000/0.5JJ

    1100

    690

    912

    1000

    1140

    880

    1.2

    500

    2600

    1.5

    700

    GW-2-1500/0.5JJ

    1650

    690

    1360

    1500

    1700

    880

    1.7

    500

    2600

    2

    675

    GW-2-2000/0.5JJ

    2200

    690

    1400

    2000

    2275

    880

    1.9

    500

    2600

    2

    650

    GW-3-2500/0.5JJ

    2750

    690

    2275

    2500

    2840

    880

    2.56

    500

    2600

    3

    610/560

    950

    1700

    2080

    1250

    3200

    GW-5-4000/0.5JJ

    4400

    690

    2300

    4000

    4540

    880

    4.5

    500

    2600

    5

    500/550

    950

    2700

    3330

    1250

    3200

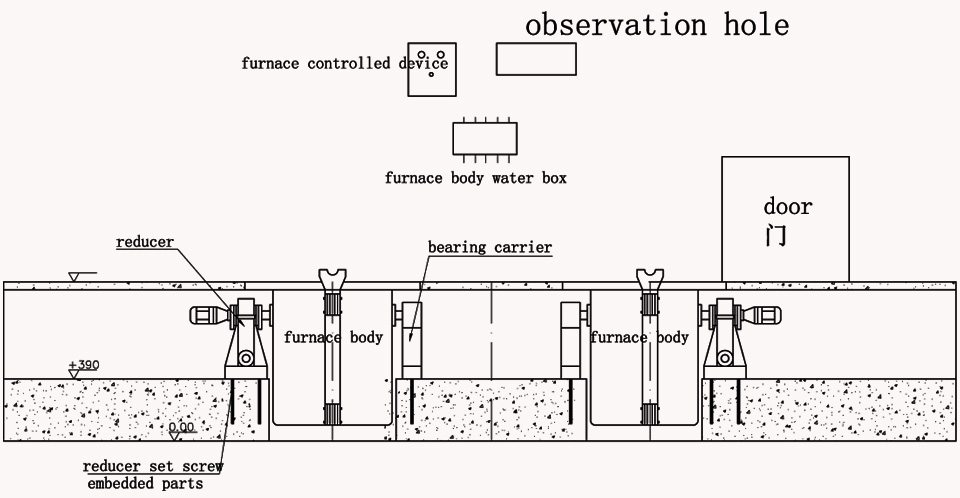

  • Front View (as above)

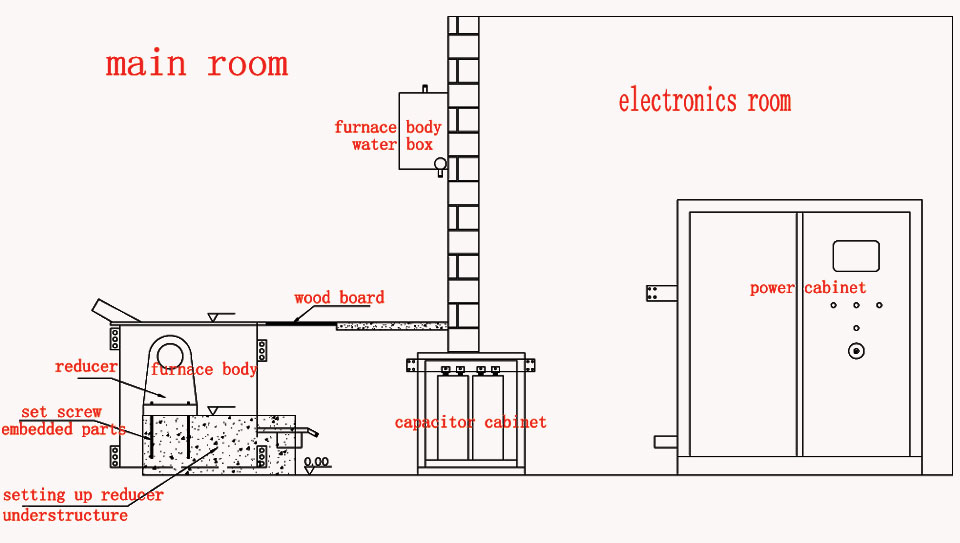

    Over View (as above)

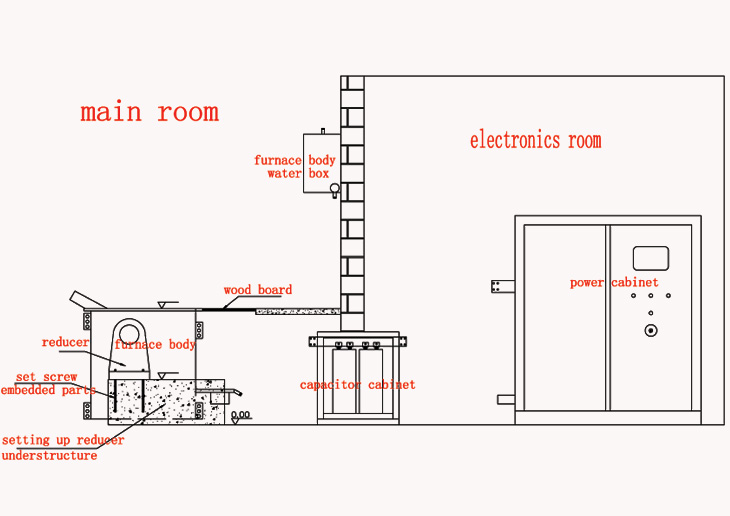

    Side View (as above)

    Electric connection (side view)
