GWA Series Aluminum Melting Medium Frequency Induction Furnace
Payment Terms: 30% in advance, balance by T/T or L/C at sight
Minimum Order: 1 Piece
Package: plywood box and Nude
Brand Name: ELE
Capacity 10kg~10,000kg
Shell Material steel or cast aluminum
Tilting Type hydraulic or mechanical

PREV GWC Series Copper Melting Medium Frequency Induction … NEXT Hot Metal Ladle

  • · Application
    This GWA Series Coreless Medium Frequency Induction Smelting Furnace, also called Induction Melting Furnace or Electric induction oven is for melting aluminum and its alloy.

         · Structure Features

    1. Solid steel structure and durable;
    2. Good magnetic isolation, safe and reliable;
    3. Solid frequency conversion power supply, easy operation; Adjustable power rate, easy operation and maintenance;
    4. Easy to start up with load or free of load.


         · Performance
    Electrical Feature:
    1. Digital CMOS chip (U. S. ASIC-2-12), with the highest degree of integration at home, is used in control circuit, the overall machine controlled through one single panel;
    2. Frequency-sweep zero voltage start, high success rate, no shock;
    3. Automatic resistance adjustment, permanent power output, 10-20% energy saved in comparison with domestic traditional machine of the type;
    4. Auto phase sequence adaptation, free of synchronization;
    5. Good performance in reload staring, auto recovery;
    6. Highly integrated in controlling circuit, free of use of high-rate starter and relay loop, fairly low failure rate;
    7. Wholly digital design, strong in anti-interference, no temperature shift when in continuous working;
    8. Multi-protection functions (for over current, over voltage, insufficient water pressure, power failure, or phase absence), and mishandling will not cause damage to machine.

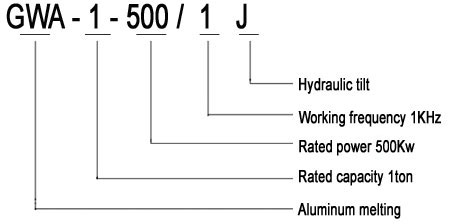

         · Model explanation

    Model

    Rated Capacity

    Rated Power

    Input Volt. (6pulse)

    DC Volt.

    Melting Rate

    Working Freq.

    Rated Temp.

    T

    Kw

    V

     V

    T/H

     Hz

    oC

    GWA-0.15-100/1J

    0.15

    100

    380

    500

    0.15

    1000

    750

    GWA-0.3-160/1J

    0.3

    160

    380

    500

    0.25

    1000

    750

    GWA-0.5-250/1J

    0.5

    250

    380

    500

    0.6

    1000

    750

    GWA-0.8-400/1J

    0.8

    400

    380

    500

    0.75

    1000

    750

    GWA-1-500/1J

    1

    500

    380

    500

    0.9

    1000

    750

    GWA-1.5-800/0.5J

    1.5

    800

    690

    880

    1.4

    500

    750

    GWA-2-1000/0.5J

    2

    1000

    690

    880

    1.9

    500

    750

    GWA-3-1500/0.5J

    3

    1500

    690

    880

    2.5

    500

    750


         · Equipment Constitution
    1. Furnace body
    2. Hydraulic tilting device,
    3. Operation table
    4. Medium frequency power supply
    5. Low voltage power cabinet
    6. Capacitor bank
    7. Water cooling cable
    8. Crucible Mould
    9. Water tanks
    10. Water temperature and pressure annunciator
    11. Furnace leakage alarm


  • Model

    Rated Capacity

    Rated Power

    Input Volt. (6pulse)

    DC Volt.

    Melting Rate

    Working Freq.

    Rated Temp.

    T

    Kw

    V

     V

    T/H

     Hz

    oC

    GWA-0.15-100/1J

    0.15

    100

    380

    500

    0.15

    1000

    750

    GWA-0.3-160/1J

    0.3

    160

    380

    500

    0.25

    1000

    750

    GWA-0.5-250/1J

    0.5

    250

    380

    500

    0.6

    1000

    750

    GWA-0.8-400/1J

    0.8

    400

    380

    500

    0.75

    1000

    750

    GWA-1-500/1J

    1

    500

    380

    500

    0.9

    1000

    750

    GWA-1.5-800/0.5J

    1.5

    800

    690

    880

    1.4

    500

    750

    GWA-2-1000/0.5J

    2

    1000

    690

    880

    1.9

    500

    750

    GWA-3-1500/0.5J

    3

    1500

    690

    880

    2.5

    500

    750
