Z4-400-31 500 kW 800-1400 rpm Armature 660 V Field 310 V IC86W Air-Water Cooled DC Motor was shipped for VIETNAM on July 8
Update time：08th,Jul,2021
1 PC Z4-400-31 500 kW 800-1400 rpm Armature 660 V, Field 310 V, ICW37A86 Air-Water Cooled DC Motor was shipped for DANANG, VIETNAM on July 8th, 2021.Model: Z4-400-31 Rated power: 500 kW Rated speed: 800 rpm Max speed: 1400 rpm
Armature voltage: 660 V Armature current: 815 A Field voltage: 310 V Field current: 16 A
Cooling type: ICW37A86 Protection: IP44 Insulation class F Duty: S1 continuous
Bearing brand: SKF Mounting: B3 (IM1001)
With PT100 in windings and bearings.
With 220 V 50 Hz single phase anti-condensation space heater
With encoder, "CARLEN" brand from Germany, type:CC1500-4T14-65-1024-26-S002 1024 ppr 10~30 VDC

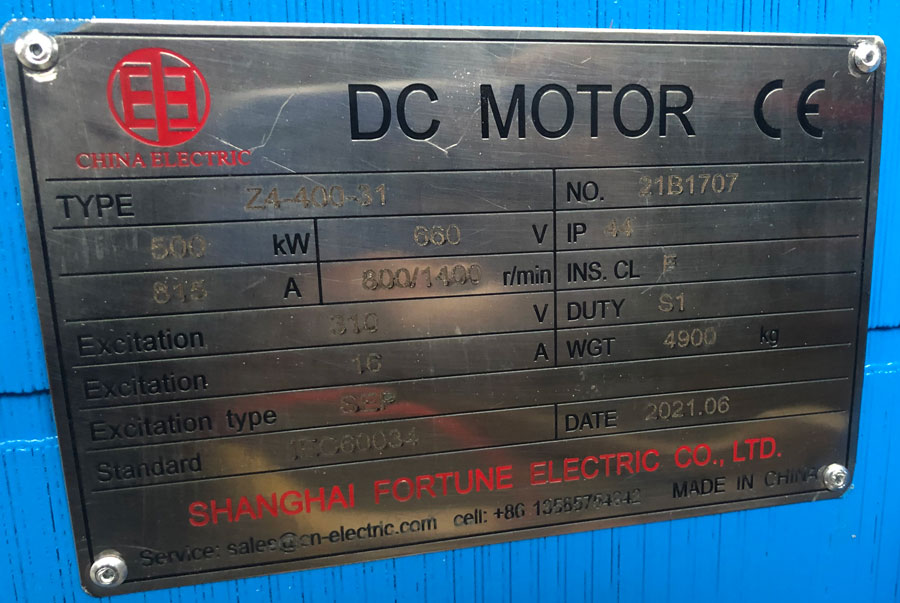

Nameplate for Z4-400-31 500 kW 800/1400 rpm armature 660 V DC Motor
Z4-400-31 500 kW 800/1400 rpm armature 660 V DC Motor
Z4-400-31 500 kW 800/1400 rpm armature 660 V DC Motor
