Z4-355-31T Z4-250-31 198 kW 1760-2400 rpm Armature Voltage 440 V Electric DC Motor for Driving Paper Machine was shippped for Chile Oct. 4

Update time：04th,Oct,2020

Z4-355-31T Z4-250-31 198 kW 1760-2400 rpm Armature Voltage 440 V Electric DC Motor for Driving Paper Machine was shippped for Valparaiso, Chile on Oct. 4th, 2020

Main Parameters for Z4-355-31T (Z4-250-31) DC Motor:
Model: Z4-355-31T                           Rated power: 198 KW              Rated speed: 1760 rpm          Max speed: 2400 RPM
Armature voltage: 440 VDC              Armature current: 485 A          Field voltage: 180 VDC           Field current: 12.2 A
Cooling type: IC06 blower cooled    Protection: IP23                       Insulation class F                    Duty: S1 continuous
Bearing brand: SKF                           Mounting: B3 (IM1001)           Encoder: TRD-J1000-RZ         With PTC in windings

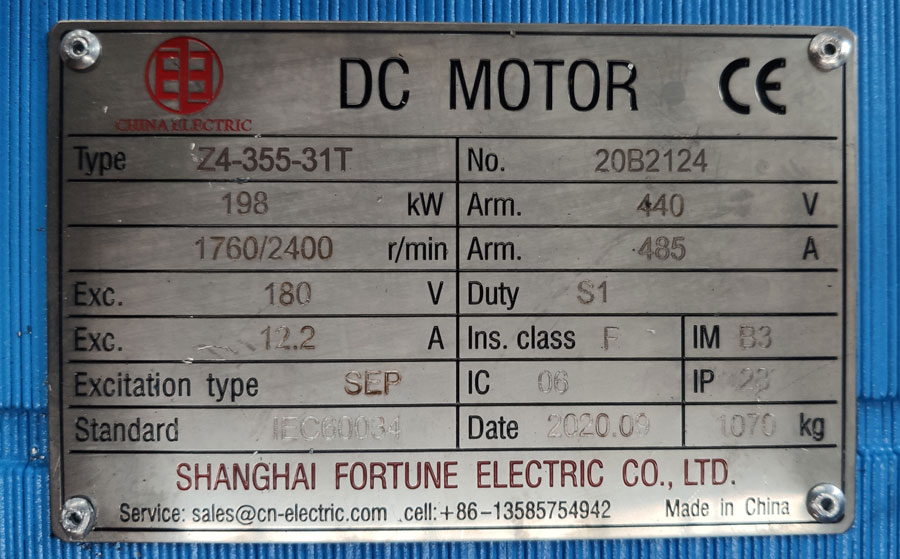

Nameplate for Z4-355-31T 198 kW 1760-2400 rpm Armature 440 V Electric DC Motor for Paper machine

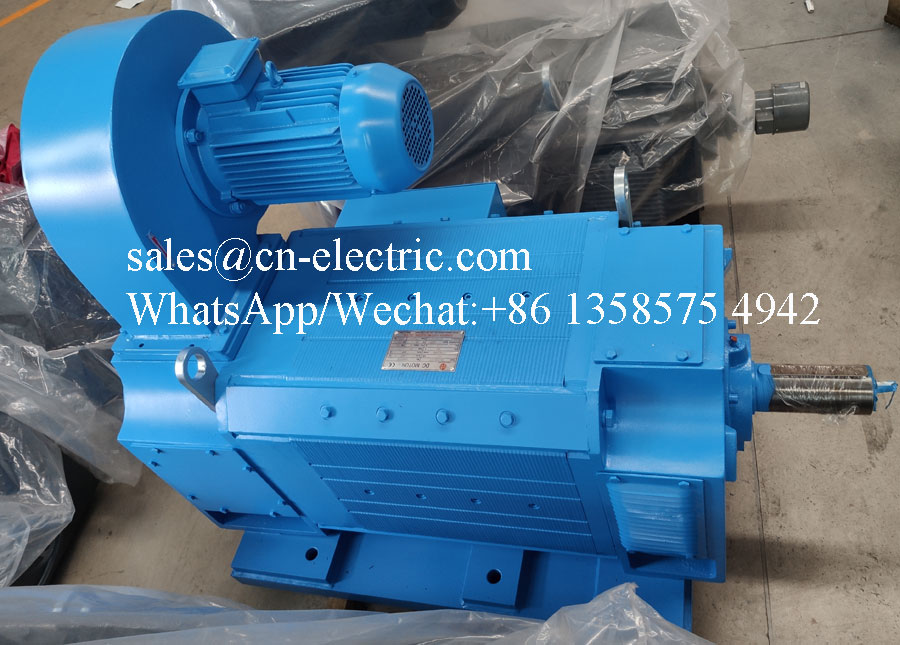

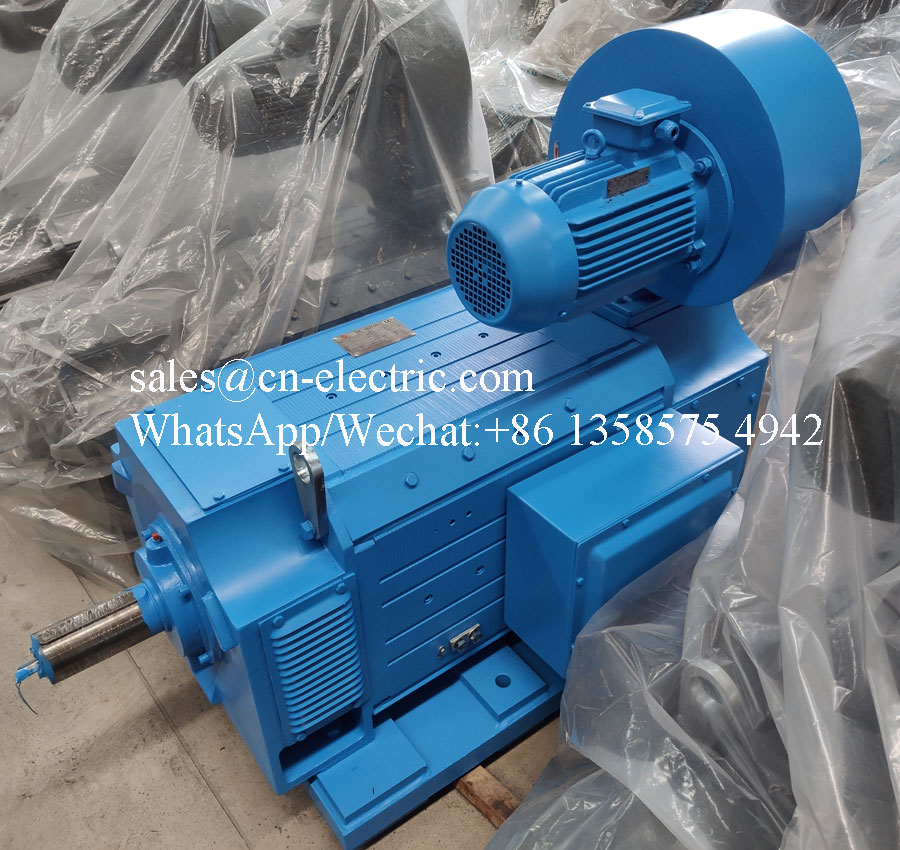

Z4-355-31T 198 kW 1760-2400 rpm Armature 440 V Electric DC Motor for driving paper machine
