Z4-315-T 440 kW 1540/1580 rpm 460 V Plastic Extruder Drive DC Motor was shipped for Germany May 12,2017

Update time：12th,May,2017

1 PC Z4-315-T 440 kW 1540/1580 rpm 460 V IC06 blower cooled, Plastic Extruder Driving Electric DC Motor was shipped for Hamburg, Germany on May 12th, 2017

Main parameters:
Model: Z4-315-T                               Rated power: 440 kW                                         Armature voltage: 460 VDC
Armature current: 1030 A                 Speed: 1540/1580 r/min                                   Field voltage: 310 VDC
Field current: 13.5 A                          Enclosure protection: IP23                               Insulation class: F
Duty: S1 continuous                          Mounting: B3 horizontal feet mounted            Bearing brand: SKF
Cooling: IC06 400 V 50 Hz 3 phase air blower cooled
Space heater: 220 V 50 Hz single phase
With 6 PCS PT100 in both winding and bearings
Speed feedback: tachogenerator ZYS-20A

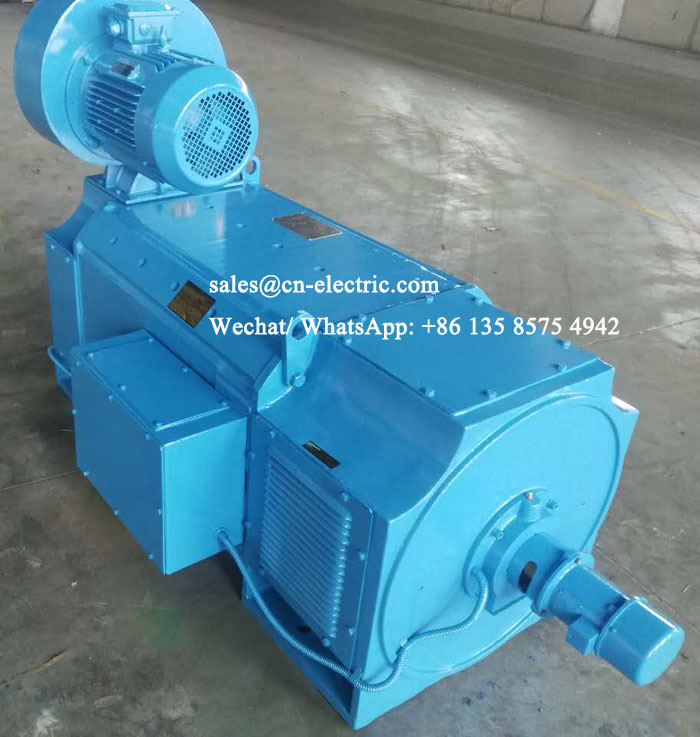

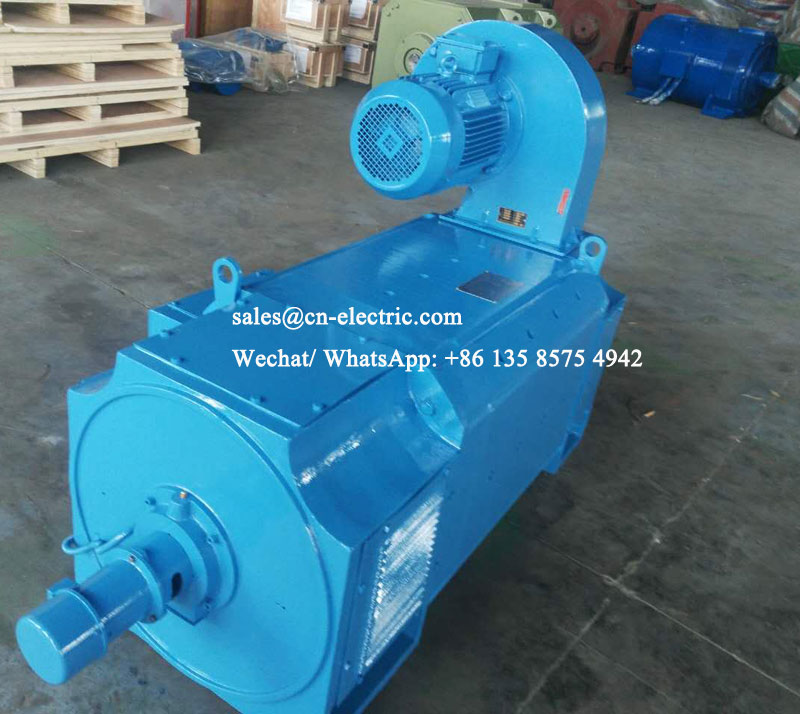

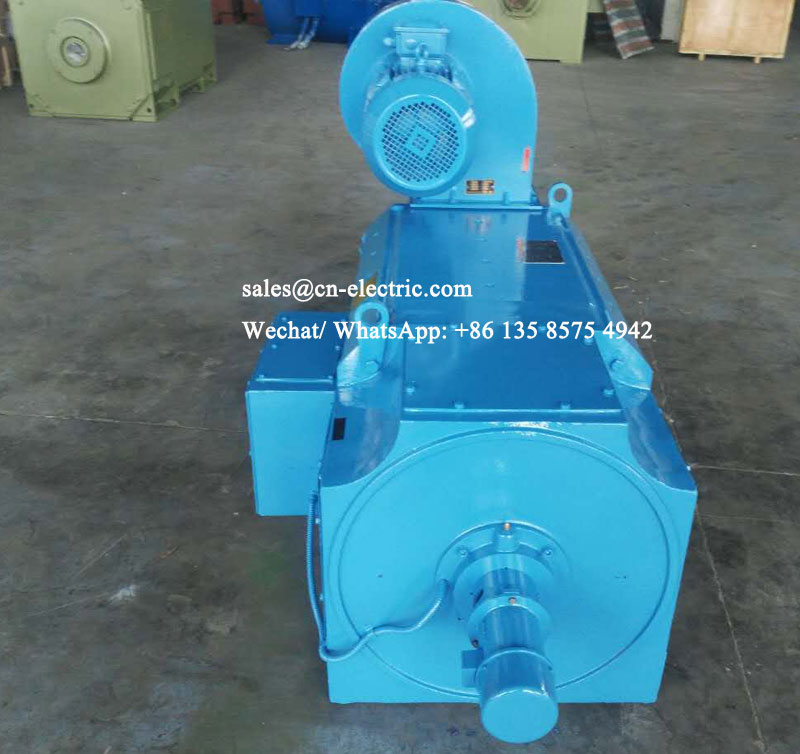

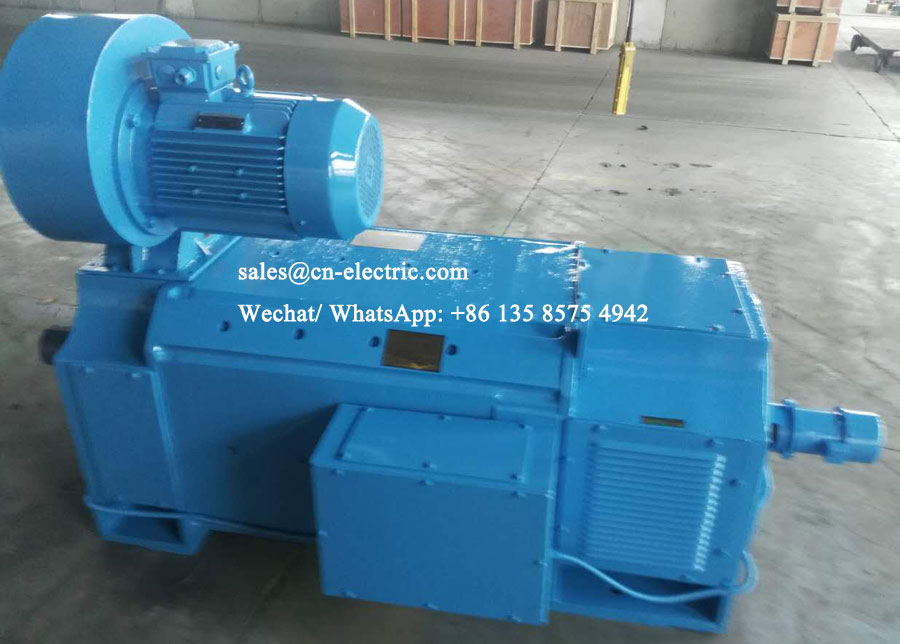

Z4-315-T 440 kW 1540-1580 rpm DC Motor:


Nameplate for Z4-315-T 440 kW 1540-1580 rpm DC Motor:
