Z4-315-32 434 kW 600 V 1530/1700 rpm Paper Machine Drive DC Motor was shipped for Pakistan 8.2.17

Update time：02th,Aug,2017

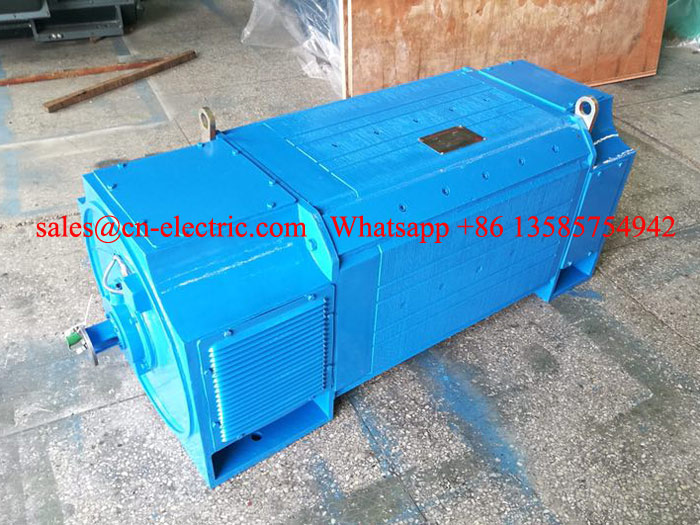

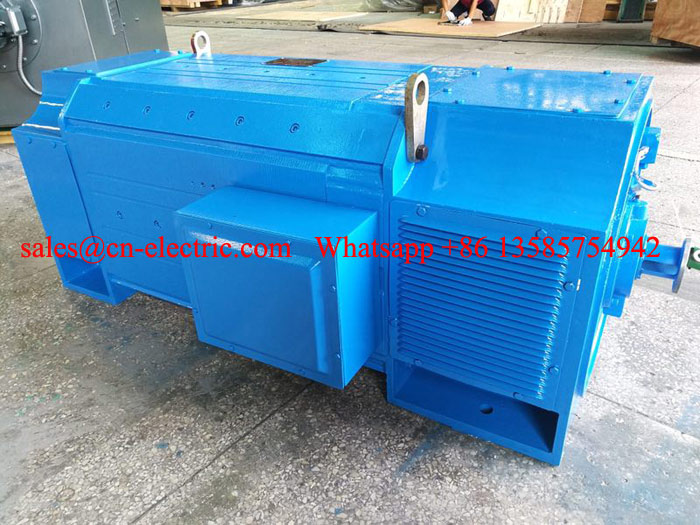

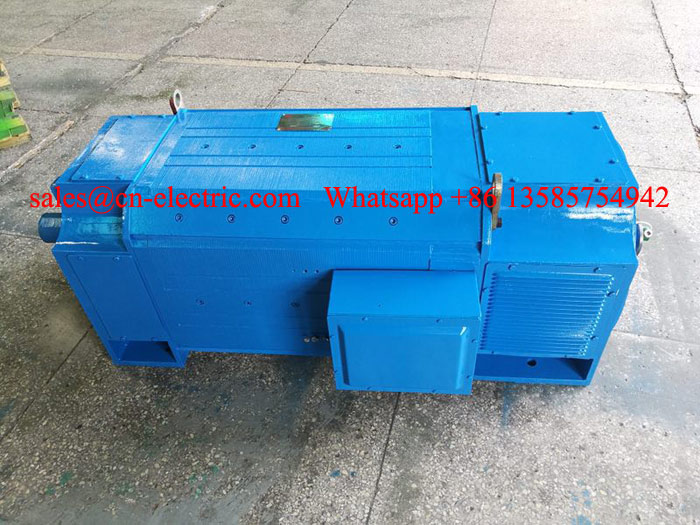

1 PC Z4-315-32 434 kW 600 V 1530/1700 rpm DC Motor for Driving Paper Machine was shipped for Karachi, Pakistan on Aug. 2nd, 2017

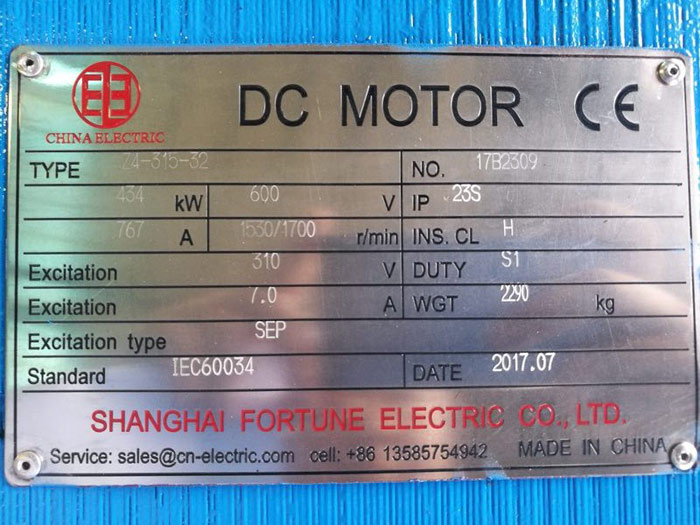

Main Parameters:

Model: Z4-315-32                      Rated power: 434 KW                                      Armature voltage: 600 VDC

Speed: 1530/1700 r/min           Cooling type: IC17 single duct ventilation     Armature current: 767 A

Protection rating: IP23S            Insulation class: H                                           Field voltage: 310 VDC

Duty: S1 continuous                  Mounting: IMB3 (IM1001)                               Excitation type: Sep
Bearing brand: SKF
