Z4-250-31 150 kW 1150/2000 rpm armature voltage 440 V field 190 V Electric DC Motor was shipped for Thailand​ on July 19

Update time：19th,Jul,2020

1 PC Z4-250-31 150 kW 1150/2000 rpm, armature voltage 440 V, field 190 V Electric DC Motor was shipped for Laem Chabang Port, Thailand on July 19th, 2020.

Main parameters:
Model: Z4-250-31                              Rated power: 150 KW               Rated speed: 1150 rpm       Max speed: 2000 rpm
Armature voltage: 440 VDC               Armature current: 372 A           Field voltage: 190 VDC         Field current: 16 A
Cooling type: IC06                              Protection: IP23                       Insulation class F                  Duty: S1 continuous
Bearing brand: NSK                            Mounting: B3 (IM1001)
With PTC in windings
With ZYS-3A DC tachogenerator, 110 V 0-2000 rpm

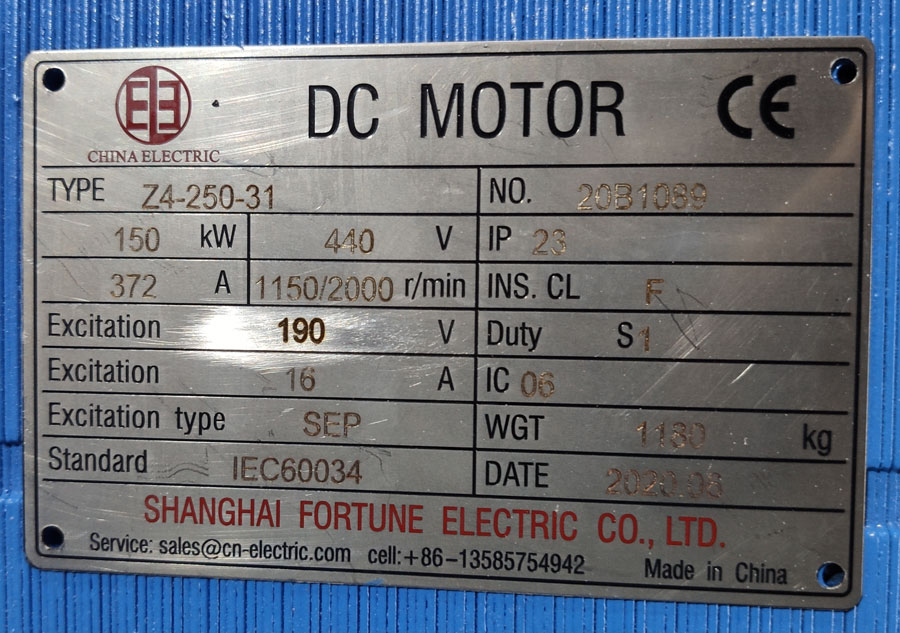

Nameplate for Z4-250-31 150 kW 1150/2000 rpm, armature voltage 440 V Electric DC Motor

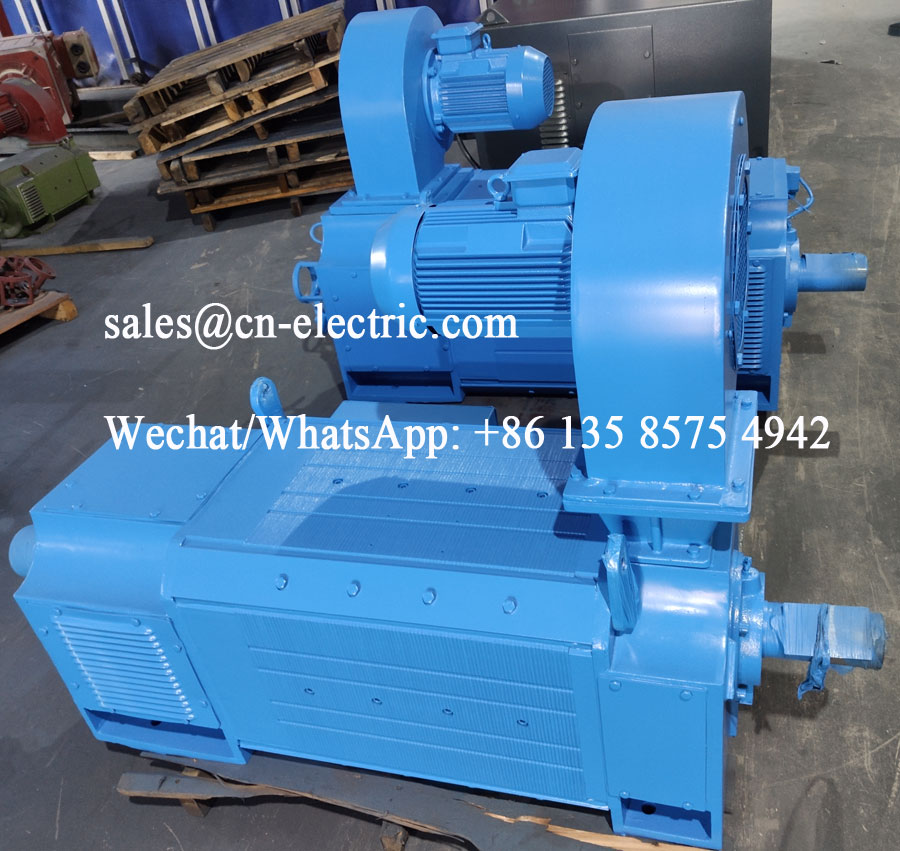

Pictures for Z4-250-31 150 kW 1150/2000 rpm, armature voltage 440 V Electric DC Motor
