Z4-200-42 110 kW 1750-3000 rpm Armature 440 V Electric Motor DC was shipped for Vietnam on Aug.22,2019

Update time：22th,Aug,2019

1 PC Z4-200-42 110 kW 1750-3000 rpm Armature 440 V Electric Motor DC was shipped for Ho Chi Minh, Vietnam on Aug. 22nd, 2019

Main parameters:
Model: Z4-200-42                              Rated power: 110 KW               Rated speed: 1750 rpm        Max speed: 3000 RPM
Armature voltage: 440 VDC               Armature current: 270 A          Field voltage: 180 VDC         Field current: 8.75 A
Cooling type: IC06 blower cooled     Protection: IP23S                     Insulation class F                 Duty: S1 continuous
Bearing brand: SKF                            Mounting: B3 (IM1001)            Encoder: TRD-J1000-RZ     With PTC in windings

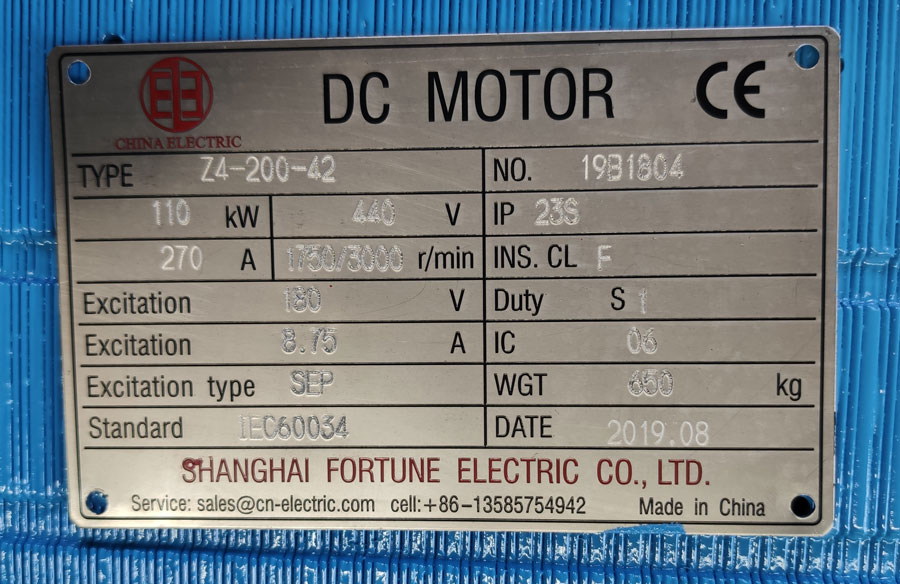

Nameplate for Z4-200-42 110 kW 1750-3000 rpm Armature 440 V Electric Motor DC

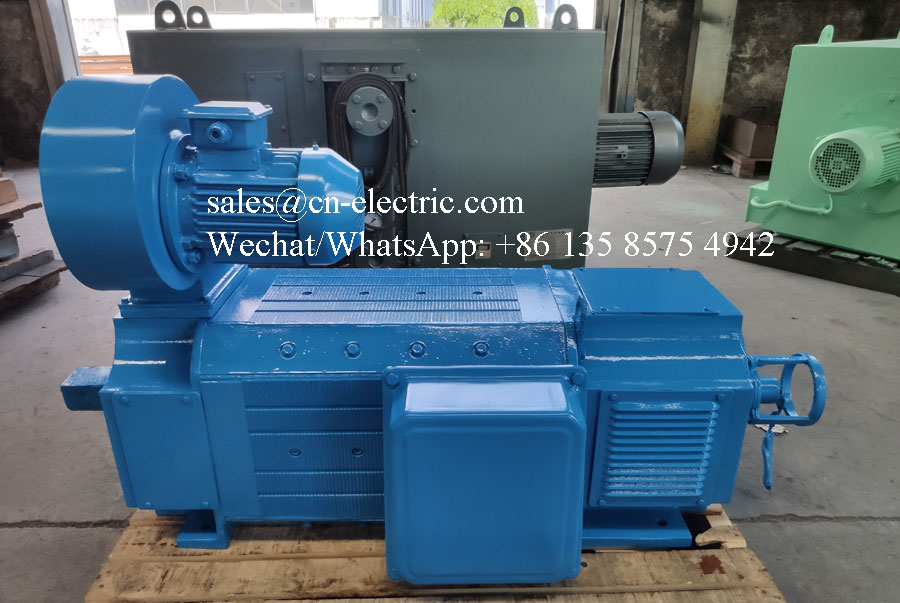

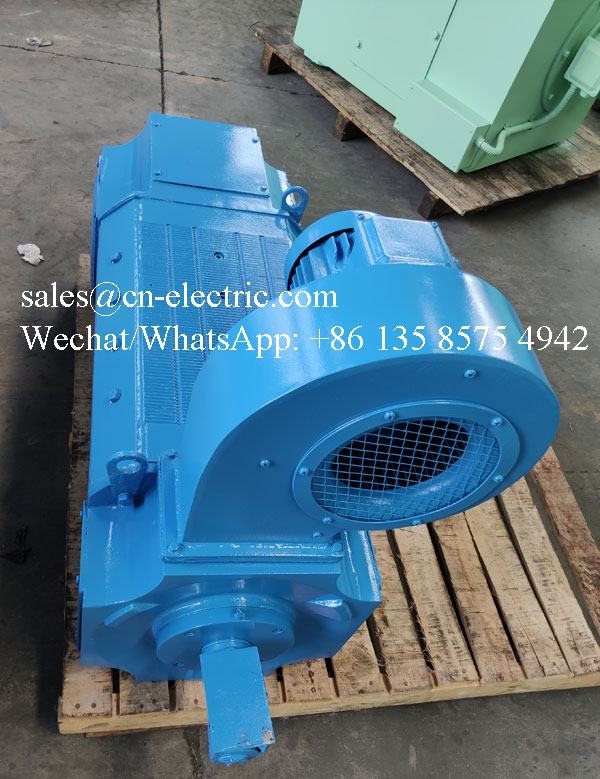

Z4-200-42 110 kW 1750-3000 rpm Armature 440 V Electric Motor DC
