3 PCS Z4-200-21 75 kW 1500/3000 rpm IC06 IP23 NSK Bearing DC Motors were shipped for Ukraine on Feb.1st
Update time：01th,Feb,2019
3 PCS Z4-200-21 75 kW 1500/3000 rpm IC06 IP23 NSK brand Bearing DC Motors were shipped for our Ukraine regular customer on Feb. 1st, 2019.Main Parameters:
Model: Z4-200-21 Armature voltage: 440 VDC
Field voltage: 220 VDC Rated power: 75 Kw
Base speed: 1500 rpm Field weakening speed: 3000 rpm
Mounting: B3 (IM1001) horizontal shaft/ feet mounted Insulation class F
Enclosure protection: IP23 Cooling type: IC06 air blower cooled (380 VAC 50 Hz)
Bearing brand: NSK (world famous from Japan) Duty: S1 continuous
Encoder: Koyo brand (Japan), TRD-J1000-RZ With PTC in windings for thermal protection

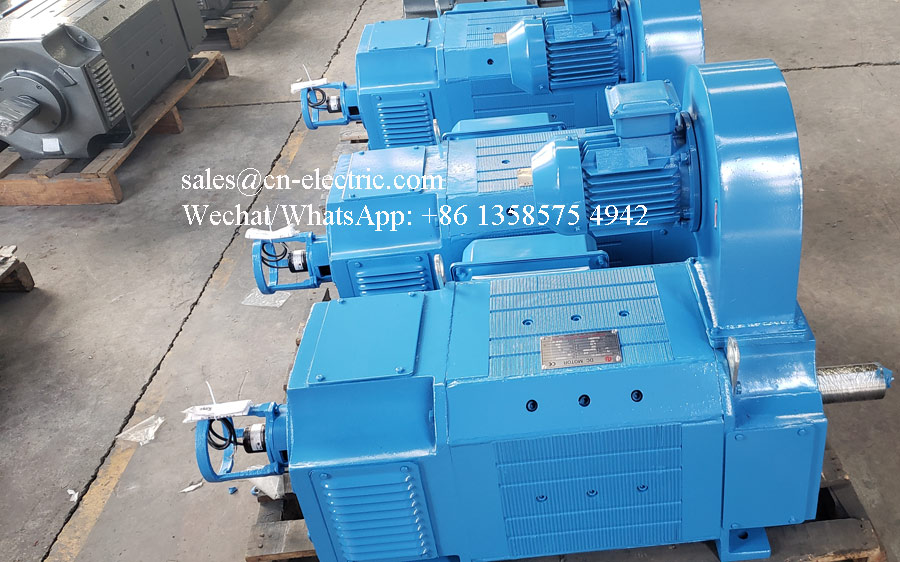

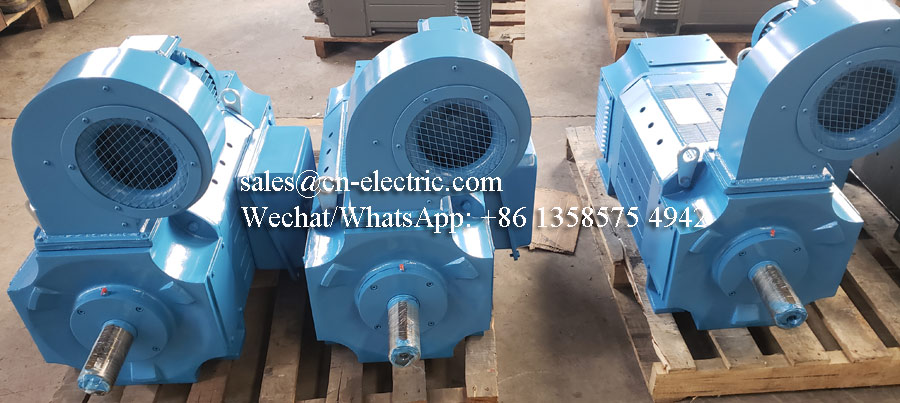

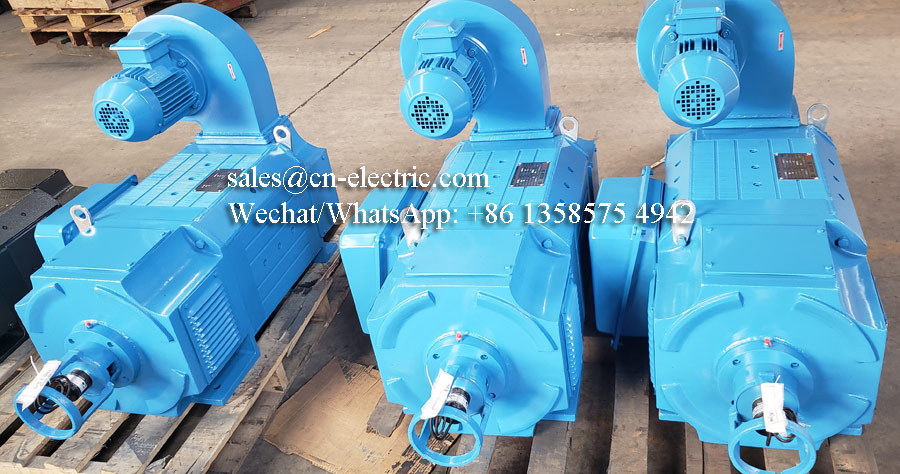

Pictures for 3 PCS Z4-200-21 75 kW 1500/3000 rpm IC06 IP23 NSK Bearing DC Motors

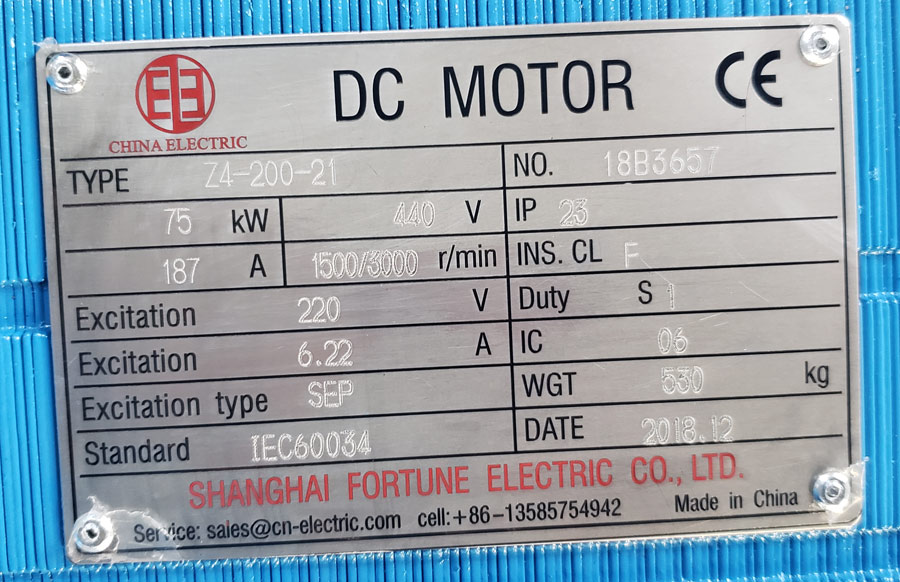

Nameplate for Z4-200-21 75 kW 1500/3000 rpm IC06 IP23 NSK Bearing DC Motor, NO.18B3657

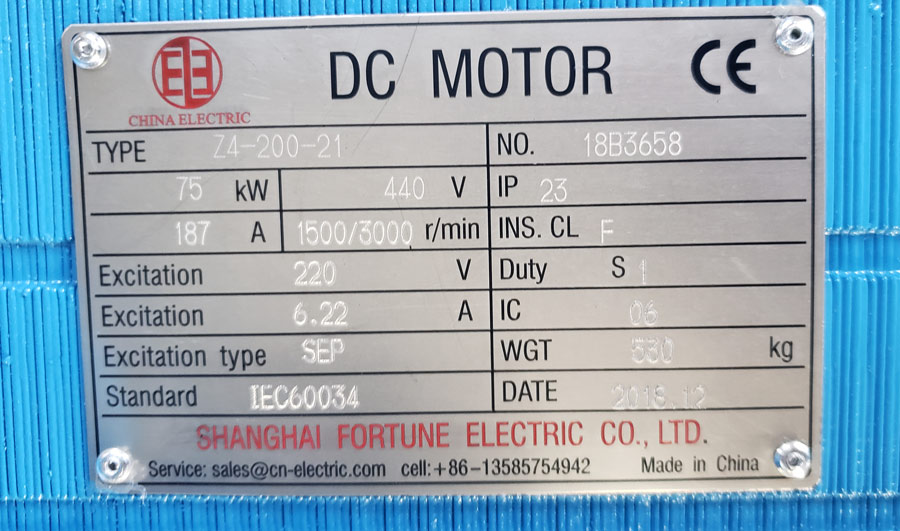

Nameplate for Z4-200-21 75 kW 1500/3000 rpm IC06 IP23 NSK Bearing DC Motor, NO.18B3658

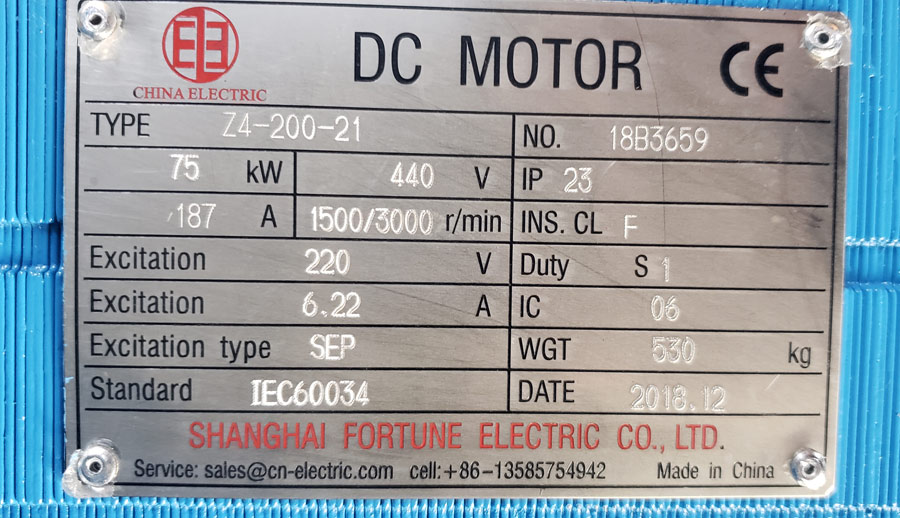

Nameplate for Z4-200-21 75 kW 1500/3000 rpm IC06 IP23 NSK Bearing DC Motor, NO.18B3659
3 PCS Z4-200-21 75 kW 1500/3000 rpm IC06 IP23 NSK Bearing DC Motors on test bed
