Z4-180-41 52 kW 1450/2600 r/min Armature 400 V Z4-280-32 282 kW 1480/2000 r/min Armature 420 V Electric DC Motors were shipped for Russia on Aug. 12

Update time：12th,Aug,2020

1 PC Z4-180-41 52 kW 1450/2600 r/min Armature 400 V Electric DC Motor
1 PC Z4-280-32 282 kW 1480/2000 r/min Armature 420 V Electric DC Motor
were shipped for Russia on Aug. 12th, 2020.

Parameters for Z4-180-41 52 kW DC Motor:
Model: Z4-180-41 Rated power: 52 KW Rated speed: 1450 rpm Max speed: 2600 rpm
Armature voltage: 400 VDC Armature current: 147 A Field voltage: 330 VDC   Field current: 4.2 A
Cooling type: IC06 blower cooled   Protection: IP23S Insulation class F Duty: S1 continuous
Bearing brand: NSK Mounting: B3 (IM1001)
Encoder: "CARLEN" brand from Germany, type CC1500-4T14-65-1024-26-S002
With PTC in windings

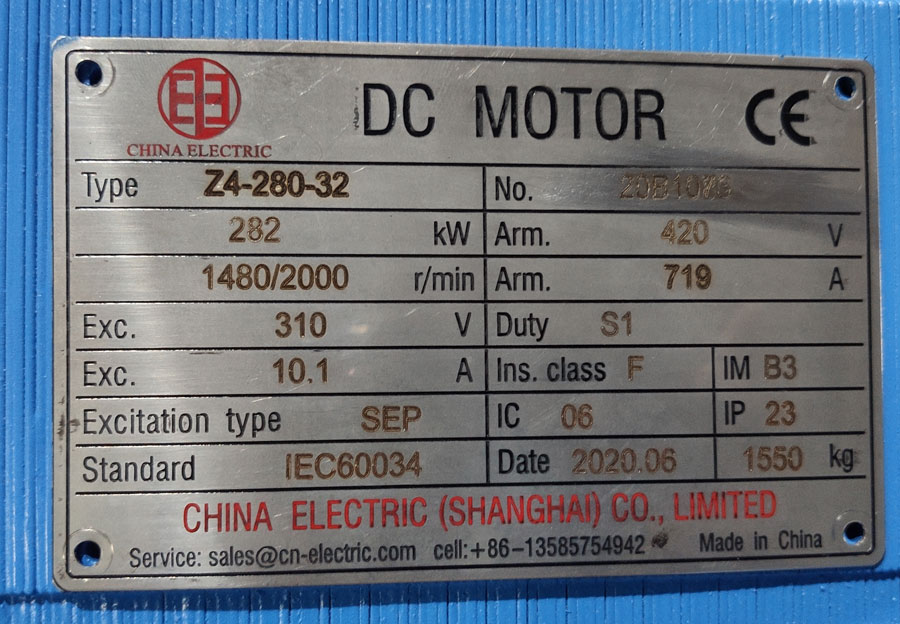

Parameters for Z4-280-32 282 kW DC Motor:
Model: Z4-280-32 Rated power: 282 KW Rated speed: 1480 rpm Max speed: 2000 rpm
Armature voltage: 420 VDC Armature current: 719 A Field voltage: 310 VDC Field current: 10.1 A
Cooling type: IC06 blower cooled   Protection: IP23   Insulation class F Duty: S1 continuous
Bearing brand: NSK Mounting: B3 (IM1001)
Encoder: TRD-J1000-RZ
With PT100 in windings and bearings.

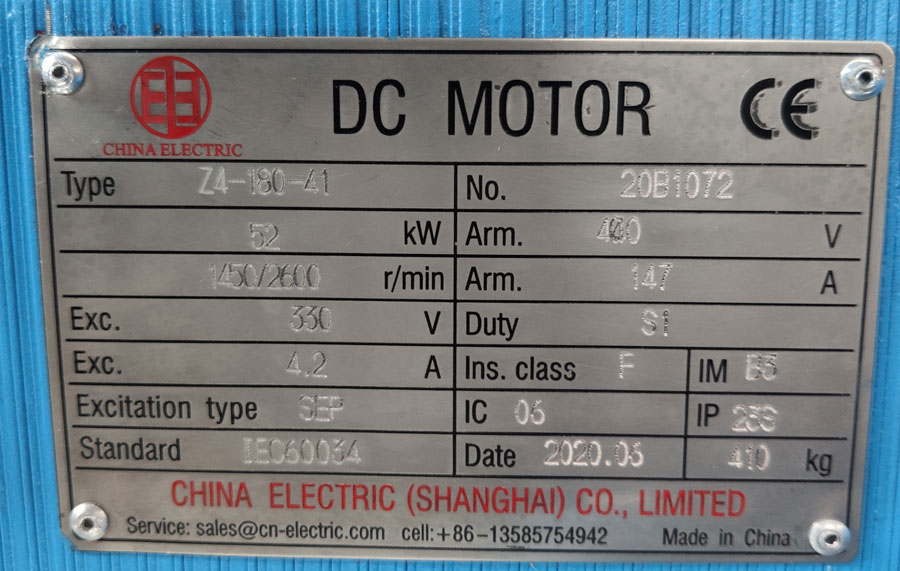

Nameplate for Z4-180-41 52 kW 1450/2600 rpm Armature 400 V Electric DC Motor
