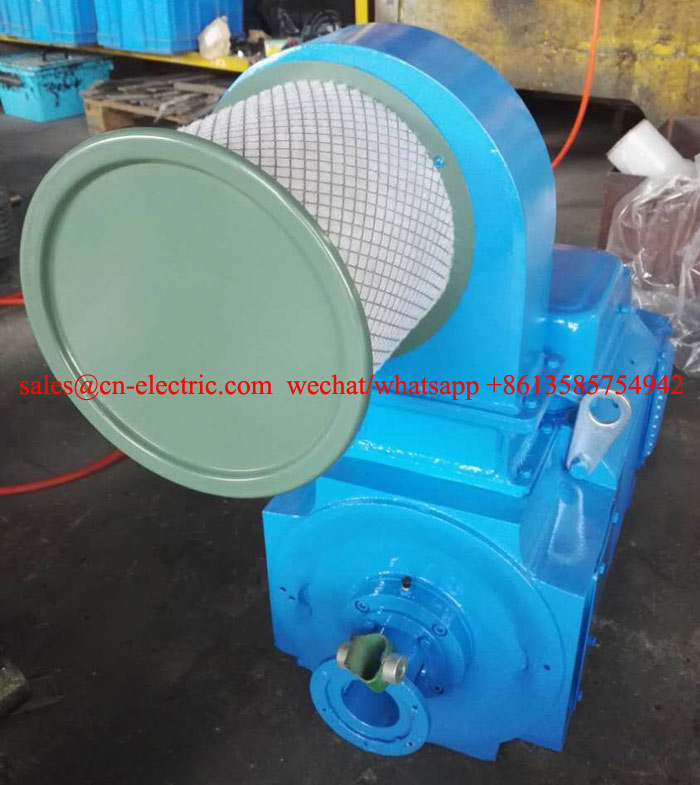

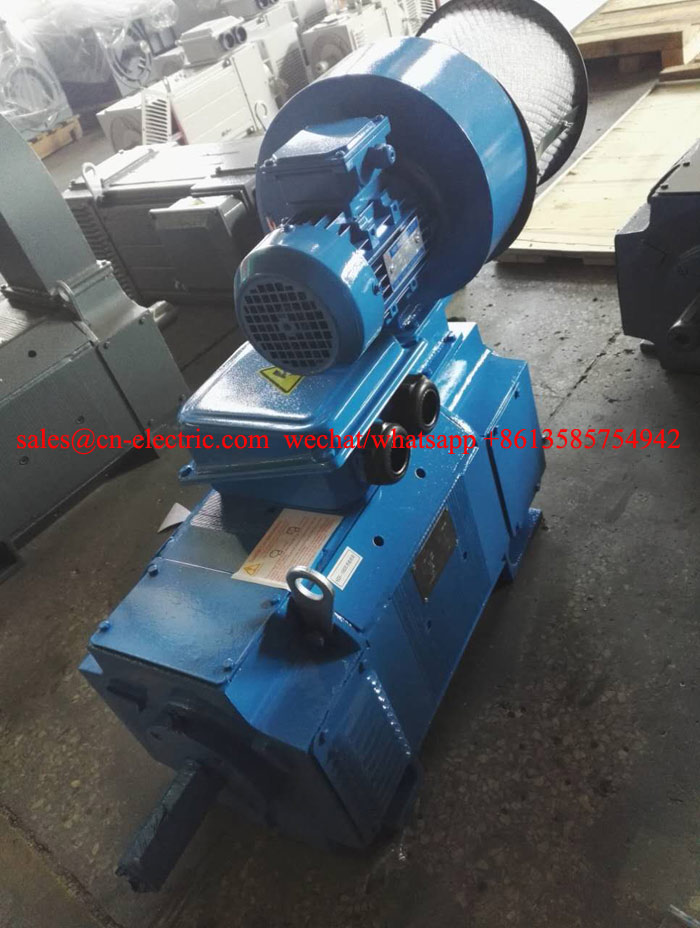

1 PC Z4-160-21 17 kW 600 V 970/1250 rpm Electric DC Motor was shipped for Karachi Pakistan on Nov. 6th, 2017

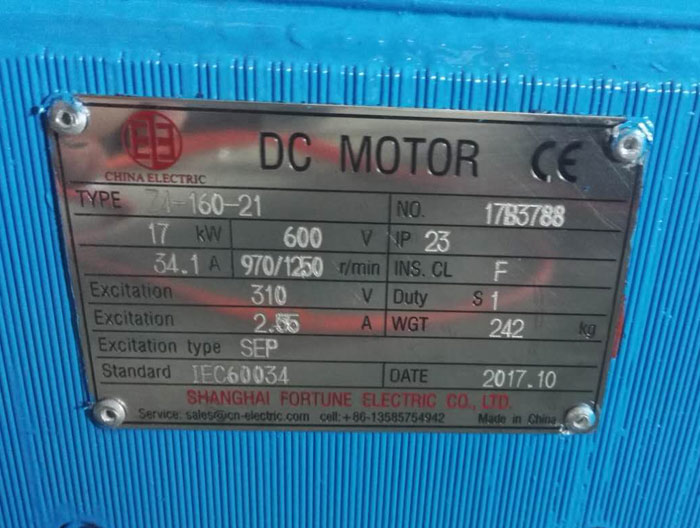

Main Parameters:
Model: Z4-160-21                     Rated power: 17 KW            Armature voltage: 600 VDC

Rated speed: 970 r/min            Max. speed: 1250 r/min        Cooling type: IC06

Protection rating: IP23              Insulation class F                  Field voltage: 310 VDC

Duty: S1 continuous                 Mounting: IMB3 (IM1001)      Excitation type: Sep
