Z4-160-21 15 kW 1150-2000 rpm 380 VDC Z4-180-21 30 kW 1150-2000 rpm 440 VDC DC Electric Motors were shippped for Indonesia Oct. 5

Update time：05th,Oct,2020

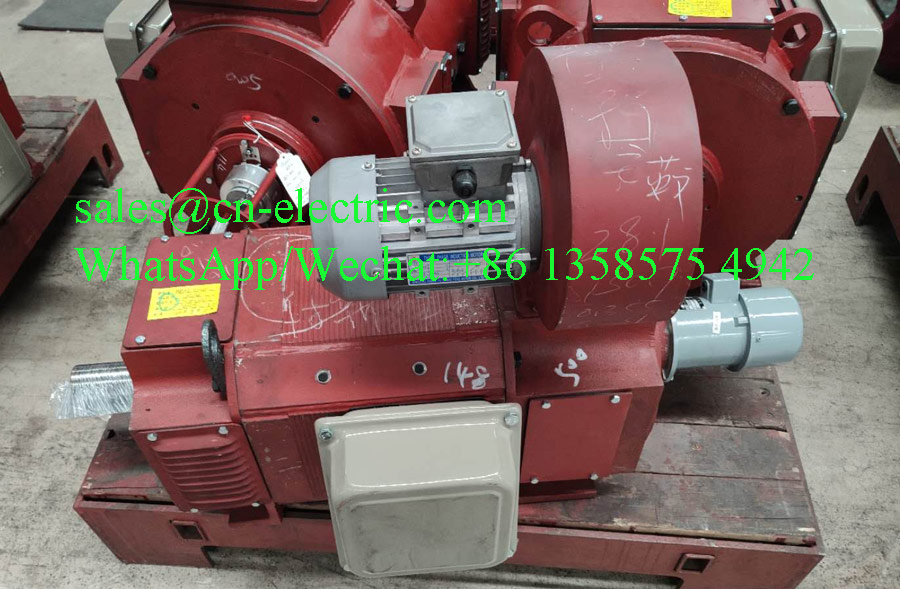

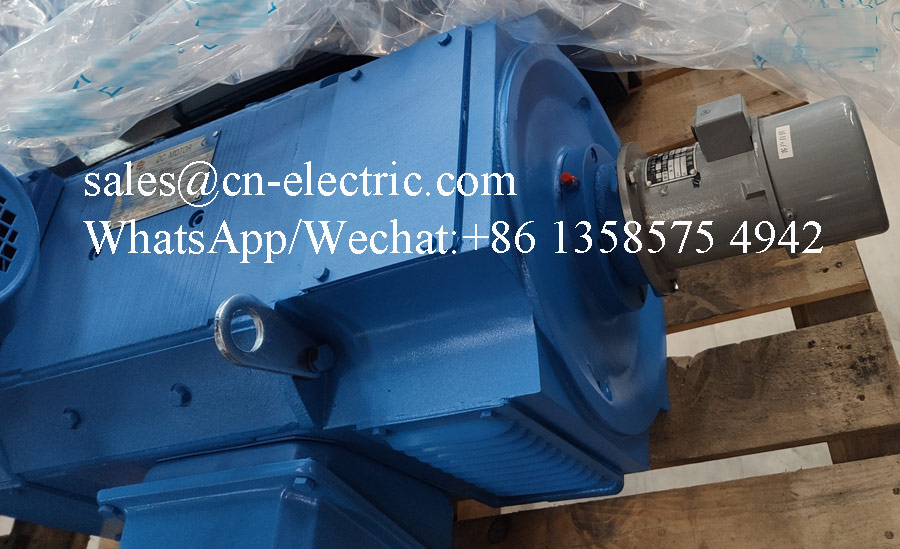

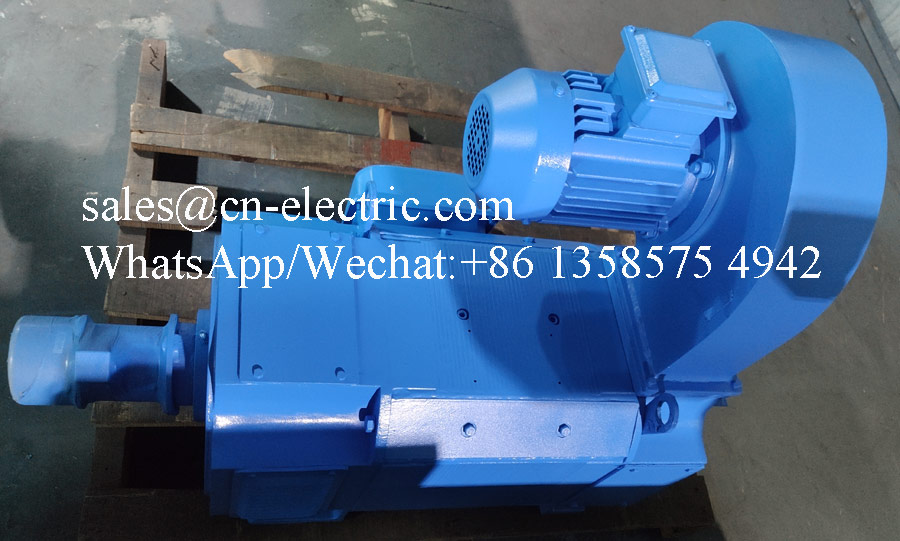

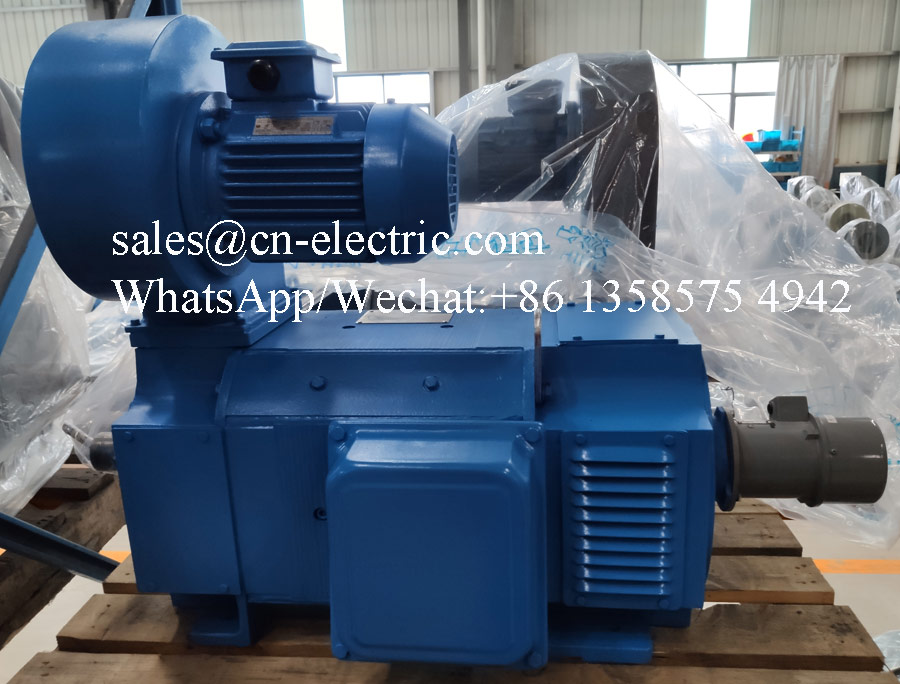

1 PC Z4-160-21 15 kW 1150-2000 rpm 380 VDC, 1 PC Z4-180-21 30 kW 1150-2000 rpm 440 VDC DC Electric Motors were shippped for Jakarta Java Indonesia on Oct. 5th, 2020.

Main parameters for Z4-160-21 DC Motor:
Model: Z4-160-21                              Rated power: 15 kW               Rated speed: 1150 rpm        Max speed: 2000 rpm
Armature voltage: 380 VDC Armature current: 44 A    Field voltage: 176 VDC Field current: <15 A
Cooling type: IC06     Protection: IP23                     Insulation class F Duty: S1 continuous
Bearing brand: SKF                            Mounting: IMB3 (IM1001)

Main parameters for Z4-180-21 DC Motor:
Model: Z4-180-21 Rated power: 30 kW Rated speed: 1150 rpm Max speed: 2000 rpm
Armature voltage: 440 VDC Armature current: 79 A Field voltage: 190 VDC Field current: 5.78 A
Cooling type: IC06 Protection: IP23 Insulation class F Duty: S1 continuous
Bearing brand: SKF Mounting: IMB3 (IM1001)

With PTC in windings
With DC tachogenerator, 60 VDC/1000 rpm, type ZYS-14A, 0~120 V, 0~2000 rpm

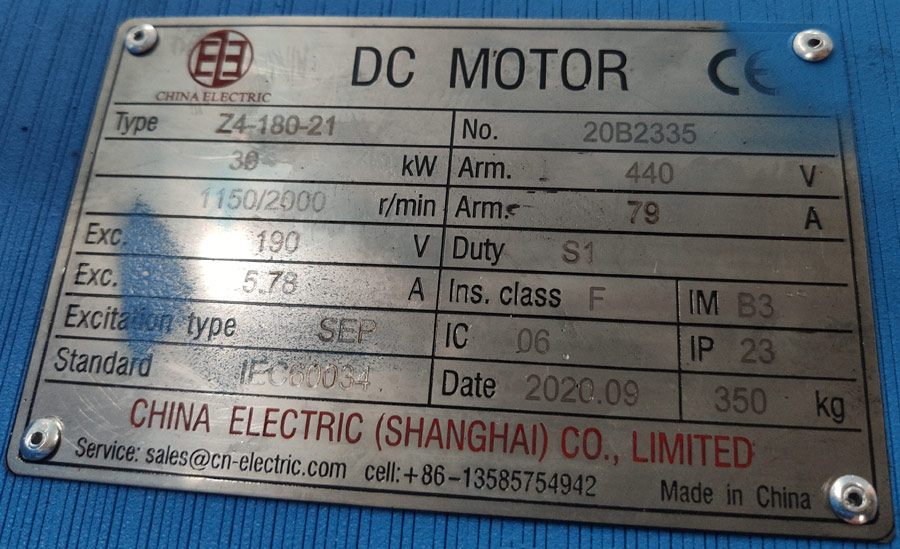

Nameplate for Z4-180-21 30 kW 1150/2000 rpm DC Motor
