Z2 Series Electric DC Motor
Payment Terms: 30% in advance, balance by T/T or L/C at sight
Minimum Order: 2 Pieces
Package: plywood box
Brand Name: ELE
Insulation: Normal class F
Duty: S1
Ambient condition: Normal Temperature ≤40℃, Normal Altitude ≤1000m

  •  · Features and application
    Series Z2 DC machine is used for industry. It’s suitable for electric power drag which timing range of constant power is not more than 1:2, over-loading capacity is not more than 1.5 rated torque. It also can be used for metal cutting machine tool, paper making, print, textile, cement-making, etc. Generator can be used for motive supply, illumination or other constant voltage supply. Booster generator is also suitable for charge and floating charge of large storage battery.
    In order to adapt to adjusting voltage & speed in wide range when constant torque and accurate speed control, Z2 series has developed derive structure of strong wind and it’s detector, which electrical specification is wholly the same with Z2. But when Z2machine is equipped with ride style fan or double fan and speed indicating generator, it has compact structure and can run at a low speed for a long time, to make the use of wide range of adjustable-speed, accurate speed control. To meet the requirement of timing when constant torque, Z2 series electrical machine can be made to independent excitation generator with all kinds of excitation voltage to easily speed adjustment. According to different excitation power source, excitation voltage can be 110V, 220V, also can be other suitable voltage.
    Furthermore, Z2 series can be adapted to other special demand, and in order to meet other special requirements. Z2 series derive some other specification:
    1. ZT2 wide range of adjustable-speed motor:  the range of adjust magnetism and speed when the motor is running at the constant power is 1:3 and 1:4. It is convenient for power supplying  to constant voltage network which needs wide range of speed adjustment. To reduce the draught loss when running at a high speed, ZT2 which frame size is more than 7 commonlly adapt strong ventaging.
    2. ZT2 special voltage motor: motor which rated voltage is 180V, 340V and 440V are suitable for 1-phase and 3-phase controlled silicon electrical source supply, motor which rated voltage is 275V and 460V can be use for mine traction drive power source and other situation which need special voltage & power source.
    3. ZO2 enclosed type motor: fully-enclosed, suitable for special, dustproof working environment.
    4. According to special needs, Z2 series can also derive with compensate winding motor and generator. At this time, the overload times can be increased to about 2.5 times of rated torque, and the time of constant armature loop can be reduced, it’s suitable for the situation which is large power servosystem or needs large overload torque. Presently, No.8-11 frame have a part of specifications, if needed, can be developed.
    Above mentioned four kinds of special specifications, the overall dimension, moment of inertia and weight are same as Z2.

         · Performance
    electromotor power range:0.4Kw~200Kw
    electromotor rated voltage:110V and 220V
    electromotor rated running speed):3000r/min, 1500r/min, 1000r/min, 750r/min and 600r/min
    electrical machine power range:0.6kW~185kW
    electrical machine rated voltage:115V and 230V
    electrical machine rated running speed):2850r/min and 1450r/min
    On the following conditions, this series motor can be used continuously
    (1) Altitude above sea level maximal 1,000m.
    (2) Cooling air temperature maximal 40C.
    Excluded the above basic voltage, running speed and this catalogue, if you want other motor of special voltage and running speed, you can also contact us. For example, high humidity can order humid torrid zone. The basic excitation type of motor is shunt excitation with a little series stable winding. The voltage-regulating generator is compounded excited excitation. (without series winding)
    In order to meet different requirements, the series motor can be made to all kinds of independent excitation motor of different excitation voltage, also can be made to series and compound excitation motor with different series or compound percentage. Motor frame Z2-1~8 use class B insulation material,  when the cooling air is not above +40C, the temperature rise of winding is 80K (resistance method). Motor frame 9~11stator use insulation class B, the winding of rotor use class F, temperature rise of stator winding is 80K (resistance method) and temperature rise of rotor winding is 100K (resistance method).
    If each stator winding of motor frame is monolayer naked conductor, then it’s temperature rise is 10K higher than it’s insulation class.     The motor can use elasticity coupling, spur gear or triangle strap and other transmission method which have no axial thrust. If the motor is biaxial extension, motor frame 1-6’s biaxial extension both can pass rated moment; but the motor frame 7~11’ s commutator shaft extension only can pass rated moment when without radial load. If it has radial load, it only can pass 50% of the rated torque.
    The motor which power range is from 0.4kW to 2kW is allowed to adopt to first grade starting resistance to start.
    For power is more than 2kW, starting machine with multistage starting resistance or using reducing armature voltage is adopted to step-up starting.

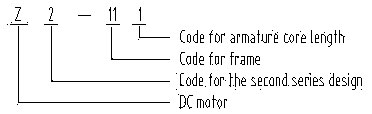

         · Model explanation

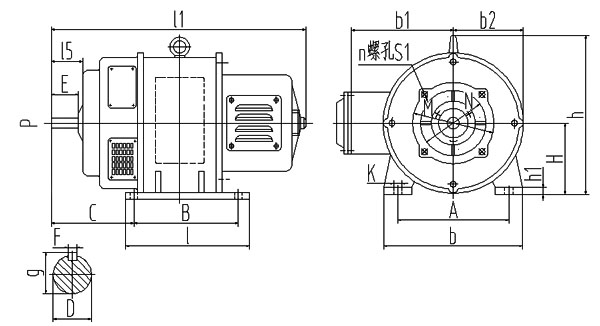

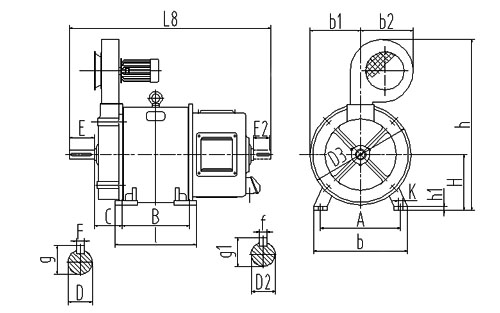

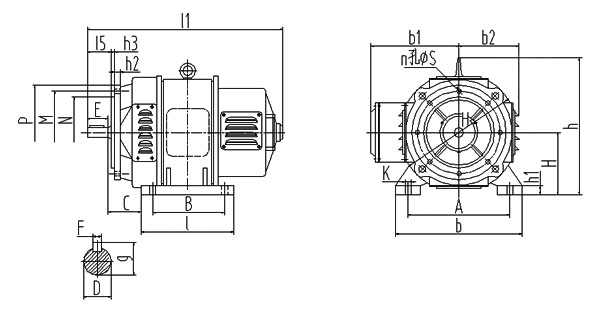

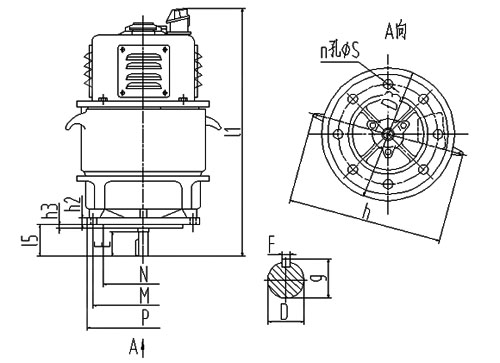

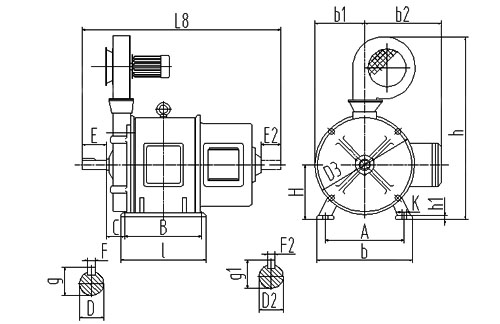

         · Structure
    The basic products of Z2 series DC motor adopt drop-preventing, prevent drop, self fan cool, uniaxial structure. It is suitable for general normal working conditions, motor also can be made into biaxial.
    The basic outlet wire faces to main driving-end (not commutator). Generator outlet wire is at left and the motor outlet wire is at right. Basic circumrotate is clockwise when facing to main driving-end. The structure installation of the motor please reference to table 1.
    table 1
    serial number
    code No.
    installation structure
     applicable motor type
    1
    IMB3
    horizontal, motor with leg
    Z2-11~Z2-112
    2
    IMB34
    horizontal, motor with leg, end shield with small flange
    Z2-11~Z2-32
    3
    IMB35
    horizontal, motor with leg, end shield with big flange
    Z2-41~Z2-82
    4
    IMV14
    vertical, motor with leg, end shield with small flange
    Z2-11~Z2-32
    5
    IMV15
    vertical, motor with leg, end shield with big flange
    Z2-41~Z2-82
    6
    IMB14
    horizontal, motor without leg, end shield with small flange
    Z2-11~Z2-32
    7
    IMB5
    horizontal, motor without leg, end shield with big flange
    Z2-41~Z2-62
    8
    IMV18
    vertical, motor without leg, end shield with small flange, shaft extension downwards
    Z2-11~Z2-32
    9
    IMV1
    vertical, motor without leg, end shield with big flange, shaft extension downwards
    Z2-41~Z2-112
    10
    IMV19
    vertical, motor without leg, end shield with small flange, shaft extension upwards
    Z2-11~Z2-32
    11
    IMV3
    vertical, motor without leg, end shield with big flange, shaft extension upwards
    Z2-42~Z2-62

        Z2 series motors, basic structure is self ventilations & drop-preventing, it can prevent drop、slag or other things from falling into the motor from uprightness 45°
    1.Stator: composed of frame、magnetic pole and magnetic loop. The stator frame is made of steel or casting steel, it is outer spigot to enlarge the diameter of the fan in order to improve the ventilation. Motor frame 1~3 have two main poles and one interpole, motor frame 4~11 have 4 main poles and 4 interpoles.
    2.End shield: made of cast iron. Its structure is considered of easy use and maintenance, improving the ventilation. It derived into sealed, out blow pipeline aeration etc.
    3.Armature: composed of shaft, magnetic core, coil, fan, commutator etc. Shaft is made of high quality carbon structure. Fan can be made of cast aluminum or armor plate according to its Diam. Motor frame 1~6's commutator is made of plastic pressing, 7~11 made of traditional disport V style steel structure.
    4. Brand of bearing reference to table 2
     table 2
    Frame
    vertical
    horizontal
    drive-end
    commutator
    drive-end
    commutator
    Z2-1
    6302
    6302
    6302
    6302
    Z2-2
    6304
    6304
    6304
    6304
    Z2-3
    6305
    6305
    6305
    6305
    Z2-4
    6307
    6307
    6307
    6307
    Z2-5
    6309
    6309
    6309
    6309
    Z2-6
    6309
    6309
    6309
    6309
    Z2-7
    6310
    6309
    6310
    7309ACJ
    Z2-8
    6311
    6310
    6311
    7310ACJ
    Z2-9
    6314
    6313
    6314
    7313ACJ
    Z2-10
    6317
    6315
    6317
    7315ACJ
    Z2-11
    6320
    6318
    6320
    7318ACJ
  •           Z2 series (110V,3000r/min) of motor
    serial number
    motor type
    kW
    V
    r/min
    A
    r/min
    kg·m2
    kg
    rating power
    rating voltage
    rating running speed
    rating current
    Max. running speed
    moment of inertia
    weight
    1
    Z2-11
    0.8
    110
    3000
    10
    3000
    0.012
    30
    2
    Z2-12
    1.1
    110
    3000
    13
    3000
    0.015
    35
    3
    Z2-21
    1.5
    110
    3000
    17.5
    3000
    0.045
    50
    4
    Z2-22
    2.2
    110
    3000
    24.7
    3000
    0.055
    55
    5
    Z2-31
    3
    110
    3000
    33.2
    3000
    0.085
    67
    6
    Z2-32
    4
    110
    3000
    43.3
    3000
    0.105
    79
    7
    Z2-41
    5.5
    110
    3000
    62.3
    3000
    0.15
    82
    8
    Z2-42
    7.5
    110
    3000
    83
    3000
    0.18
    96
    9
    Z2-51
    10
    110
    3000
    107.5
    3000
    0.35
    144

              Z2 series (110V,1500r/min) of motor
    serial number
    motor type
    kW
    V
    r/min
    A
    r/min
    kg·m2
    kg
    rating power
    rating voltage
    rating running speed
    rating current
    Max. running speed
    moment of inertia
    weight
    10
    Z2-11
    0.4
    110
    1500
    5.2
    3000
    0.012
    30
    11
    Z2-12
    0.6
    110
    1500
    7.55
    3000
    0.015
    35
    12
    Z2-21
    0.8
    110
    1500
    9.85
    3000
    0.045
    50
    13
    Z2-22
    1.1
    110
    1500
    13
    3000
    0.055
    55
    14
    Z2-31
    1.5
    110
    1500
    17.5
    3000
    0.085
    67
    15
    Z2-32
    2.2
    110
    1500
    24.8
    3000
    0.105
    79
    16
    Z2-41
    3
    110
    1500
    34.5
    3000
    0.15
    82
    17
    Z2-42
    4
    110
    1500
    44.4
    3000
    0.18
    96
    18
    Z2-51
    5.5
    110
    1500
    61
    2400
    0.35
    144
    19
    Z2-52
    7.5
    110
    1500
    81.7
    2400
    0.4
    156
    20
    Z2-61
    10
    110
    1500
    107.5
    2400
    0.56
    180
    21
    Z2-62
    13
    110
    1500
    134.4
    2400
    0.65
    200
    22
    Z2-71
    17
    110
    1500
    183
    2250
    1
    265
    23
    Z2-72
    22
    110
    1500
    235
    2250
    1.2
    300
    24
    Z2-81
    30
    110
    1500
    317
    2250
    2.8
    403

              Z2 series (110V,1000r/min) of motor
    serial number
    motor type
    kW
    V
    r/min
    A
    r/min
    kg·m2
    kg
    rating power
    rating voltage
    rating running speed
    rating current
    Max. running speed
    moment of inertia
    weight
    25
    Z2-21
    0.4
    110
    1000
    5.31
    2000
    0.045
    50
    26
    Z2-22
    0.6
    110
    1000
    7.4
    2000
    0.055
    55
    27
    Z2-31
    0.8
    110
    1000
    10
    2000
    0.035
    67
    28
    Z2-32
    1.1
    110
    1000
    13.35
    2000
    0.105
    79
    29
    Z2-41
    1.5
    110
    1000
    18.3
    2000
    0.15
    82
    30
    Z2-42
    2.2
    110
    1000
    26.4
    2000
    0.18
    96
    31
    Z2-51
    3
    110
    1000
    34.3
    2000
    0.35
    144
    32
    Z2-52
    4
    110
    1000
    45.2
    2000
    0.4
    156
    33
    Z2-61
    5.5
    110
    1000
    61.3
    2000
    0.56
    180
    34
    Z2-62
    7.5
    110
    1000
    82.2
    2000
    0.65
    200
    35
    Z2-71
    10
    110
    1000
    111.6
    2000
    1
    265
    36
    Z2-72
    13
    110
    1000
    142.5
    2000
    1.2
    300
    37
    Z2-81
    17
    110
    1000
    188.4
    2000
    2.8
    403
    38
    Z2-82
    22
    110
    1000
    238
    2000
    3.2
    430
    39
    Z2-91
    30
    110
    1000
    322
    2000
    5.9
    647
    40
    Z2-92
    40
    110
    1000
    425
    2000
    7
    681

              Z2 series (110V,750r/min) of motor
    serial number
    motor type
    kW
    V
    r/min
    A
    r/min
    kg·m2
    kg
    rating power
    rating voltage
    rating running speed
    rating current
    Max. running speed
    moment of inertia
    weight
    41
    Z2-31
    0.6
    110
    750
    7.91
    1500
    0.085
    67
    42
    Z2-32
    0.8
    110
    750
    10.1
    1500
    0.108
    79
    43
    Z2-41
    1.1
    110
    750
    14.4
    1500
    0.15
    82
    44
    Z2-42
    1.5
    110
    750
    18.5
    1500
    0.18
    96
    45
    Z2-51
    2.2
    110
    750
    26.5
    1500
    0.35
    144
    46
    Z2-52
    3
    110
    750
    35.6
    1500
    0.4
    156
    47
    Z2-61
    4
    110
    750
    47
    1500
    0.56
    180
    48
    Z2-62
    5.5
    110
    750
    61.5
    1500
    0.65
    200
    49
    Z2-71
    7.5
    110
    750
    86
    1500
    1
    265
    50
    Z2-72
    10
    110
    750
    112
    1500
    1.2
    300
    51
    Z2-81
    13
    110
    750
    148.5
    1500
    2.8
    403
    52
    Z2-82
    17
    110
    750
    188.3
    1500
    3.2
    430
    53
    Z2-91
    22
    110
    750
    242
    1500
    5.9
    647
    54
    Z2-92
    30
    110
    750
    325
    1500
    7
    681
    55
    Z2-101
    40
    110
    750
    427.5
    1500
    10.3
    945

    Z2 series (110V,600r/min) of motor
    serial number
    motor type
    kW
    V
    r/min
    A
    r/min
    kg·m2
    kg
    rating power
    rating voltage
    rating running speed
    rating current
    Max. running speed
    moment of inertia
    weight
    56
    Z2-91
    17
    110
    600
    192
    1200
    5.9
    647
    57
    Z2-92
    22
    110
    600
    242.5
    1200
    7
    681
    58
    Z2-101
    30
    110
    600
    327
    1200
    10.3
    945
    59
    Z2-102
    40
    110
    600
    430
    1200
    12
    1083

    Z2 series (220V,3000r/min) of motor
    serial number
    motor type
    kW
    V
    r/min
    A
    r/min
    kg·m2
    kg
    rating power
    rating voltage
    rating running speed
    rating current
    Max. running speed
    moment of inertia
    weight
    60
    Z2-11
    0.8
    220
    3000
    5
    3000
    0.012
    30
    61
    Z2-12
    1.1
    220
    3000
    6.52
    3000
    0.015
    35
    62
    Z2-21
    1.5
    220
    3000
    8.85
    3000
    0.045
    50
    63
    Z2-22
    2.2
    220
    3000
    12.2
    3000
    0.055
    55
    64
    Z2-31
    3
    220
    3000
    16.6
    3000
    0.085
    67
    65
    Z2-32
    4
    220
    3000
    22.4
    3000
    0.105
    79
    66
    Z2-41
    5.5
    220
    3000
    31
    3000
    0.15
    82
    67
    Z2-42
    7.5
    220
    3000
    41.5
    3000
    0.18
    96
    68
    Z2-51
    10
    220
    3000
    54.5
    3000
    0.35
    144
    69
    Z2-52
    13
    220
    3000
    68.3
    3000
    0.4
    156
    70
    Z2-61
    17
    220
    3000
    88.8
    3000
    0.56
    180
    71
    Z2-62
    22
    220
    3000
    113.6
    3000
    0.65
    200

    Z2 series (220V,1500r/min) of motor
    serial number
    motor type
    kW
    V
    r/min
    A
    r/min
    kg·m2
    kg
    rating power
    rating voltage
    rating running speed
    rating current
    Max. running speed
    moment of inertia
    weight
    72
    Z2-11
    0.4
    220
    1500
    2.64
    3000
    0.012
    30
    73
    Z2-12
    0.6
    220
    1500
    3.77
    3000
    0.015
    35
    74
    Z2-21
    0.8
    220
    1500
    4.92
    3000
    0.045
    50
    75
    Z2-22
    1.1
    220
    1500
    6.5
    3000
    0.055
    55
    76
    Z2-31
    1.5
    220
    1500
    8.74
    3000
    0.085
    67
    77
    Z2-32
    2.2
    220
    1500
    12.5
    3000
    0.105
    79
    78
    Z2-41
    3
    220
    1500
    17.2
    3000
    0.15
    82
    79
    Z2-42
    4
    220
    1500
    22.7
    3000
    0.18
    96
    80
    Z2-51
    5.5
    220
    1500
    30.9
    2400
    0.35
    144
    81
    Z2-52
    7.5
    220
    1500
    41
    2400
    0.4
    156
    82
    Z2-61
    10
    220
    1500
    53.5
    2400
    0.56
    180
    83
    Z2-62
    13
    220
    1500
    68.6
    2400
    0.65
    200
    84
    Z2-71
    17
    220
    1500
    91
    2250
    1
    265
    85
    Z2-72
    22
    220
    1500
    116
    2250
    1.2
    300
    86
    Z2-81
    30
    220
    1500
    157.5
    2250
    2.8
    403
    87
    Z2-82
    40
    220
    1500
    207.5
    2250
    3.2
    430
    88
    Z2-91
    55
    220
    1500
    287
    2000
    5.9
    647
    89
    Z2-92
    75
    220
    1500
    383
    2000
    7
    681
    90
    Z2-101
    100
    220
    1500
    511
    1800
    10.3
    945
    91
    Z2-102
    125
    220
    1500
    630
    1800
    12
    1083
    92
    Z2-111
    160
    220
    1500
    808
    1500
    20.4
    1265
    93
    Z2-112
    200
    220
    1500
    1000
    1500
    23
    1501

    Z2 series (220V,1000r/min) of motor
    serial number
    motor type
    kW
    V
    r/min
    A
    r/min
    kg·m2
    kg
    rating power
    rating voltage
    rating running speed
    rating current
    Max. running speed
    moment of inertia
    weight
    94
    Z2-21
    0.4
    220
    1000
    2.64
    2000
    0.045
    50
    95
    Z2-22
    0.6
    220
    1000
    3.7
    2000
    0.055
    55
    96
    Z2-31
    0.8
    220
    1000
    4.98
    2000
    0.085
    67
    97
    Z2-32
    1.1
    220
    1000
    6.6
    2000
    0.105
    79
    98
    Z2-41
    1.5
    220
    1000
    8.87
    2000
    0.15
    82
    99
    Z2-42
    2.2
    220
    1000
    12.67
    2000
    0.18
    96
    100
    Z2-51
    3
    220
    1000
    17.1
    2000
    0.35
    144
    101
    Z2-52
    4
    220
    1000
    22.4
    2000
    0.4
    156
    102
    Z2-61
    5.5
    220
    1000
    30.4
    2000
    0.56
    180
    103
    Z2-62
    7.5
    220
    1000
    41.1
    2000
    0.65
    200
    104
    Z2-71
    10
    220
    1000
    55
    2000
    1
    265
    105
    Z2-72
    13
    220
    1000
    70.1
    2000
    1.2
    300
    106
    Z2-81
    17
    220
    1000
    93.6
    2000
    2.8
    403
    107
    Z2-82
    22
    220
    1000
    118.3
    2000
    3.2
    430
    108
    Z2-91
    30
    220
    1000
    161
    2000
    5.9
    647
    109
    Z2-92
    40
    220
    1000
    211.5
    2000
    7
    881
    110
    Z2-101
    55
    220
    1000
    285.5
    1500
    10.3
    945
    111
    Z2-102
    75
    220
    1000
    385
    1500
    12
    1083
    112
    Z2-111
    100
    220
    1000
    510
    1500
    20.4
    1265
    113
    Z2-112
    125
    220
    1000
    630
    1500
    23
    1510

    Z2 series (220V,750r/min) of motor
    serial number
    motor type
    kW
    V
    r/min
    A
    r/min
    kg·m2
    kg
    rating power
    rating voltage
    rating running speed
    rating current
    Max. running speed
    moment of inertia
    weight
    114
    Z2-31
    0.6
    220
    750
    3.96
    1500
    0.085
    67
    115
    Z2-32
    0.8
    220
    750
    5.1
    1500
    0.105
    79
    116
    Z2-41
    1.1
    220
    750
    7.1
    1500
    0.15
    82
    117
    Z2-42
    1.5
    220
    750
    9.2
    1500
    0.18
    96
    118
    Z2-51
    2.2
    220
    750
    13.2
    1500
    0.35
    144
    119
    Z2-52
    3
    220
    750
    17.7
    1500
    0.4
    156
    120
    Z2-61
    4
    220
    750
    22.8
    1500
    0.56
    180
    121
    Z2-62
    5.5
    220
    750
    30.5
    1500
    0.65
    200
    122
    Z2-71
    7.5
    220
    750
    42.8
    1500
    1
    265
    123
    Z2-72
    10
    220
    750
    55.4
    1500
    1.2
    300
    124
    Z2-81
    13
    220
    750
    73.8
    1500
    2.8
    403
    125
    Z2-82
    17
    220
    750
    93.6
    1500
    3.2
    430
    126
    Z2-91
    22
    220
    750
    121
    1500
    5.9
    647
    127
    Z2-92
    30
    220
    750
    161.5
    1500
    7
    681
    128
    Z2-101
    40
    220
    750
    212.5
    1500
    10.3
    945
    129
    Z2-102
    55
    220
    750
    285
    1500
    12
    1086
    130
    Z2-111
    75
    220
    750
    387
    1500
    20.4
    1265
    131
    Z2-112
    100
    220
    750
    514
    1500
    23
    1510

    Z2 series (220V,600r/min) of motor
    serial number
    motor type
    kW
    V
    r/min
    A
    r/min
    kg·m2
    kg
    rating power
    rating voltage
    rating running speed
    rating current
    Max. running speed
    moment of inertia
    weight
    132
    Z2-91
    17
    220
    600
    95.5
    1200
    5.9
    647
    133
    Z2-92
    22
    220
    600
    120.5
    1200
    7
    681
    134
    Z2-101
    30
    220
    600
    162.5
    1200
    10.3
    945
    135
    Z2-102
    40
    220
    600
    214
    1200
    12
    1083
    136
    Z2-111
    55
    220
    600
    287
    1200
    20.4
    1265
    137
    Z2-112
    75
    220
    600
    387
    1200
    23
    1510

    Z2 series (115V,2850r/min) of generator
    serial number
    motor type
    kW
    V
    r/min
    A
    original motor type
    kg
    rating power
    rating voltage
    rating running speed
    rating current
    efficiency
    weight
    138
    Z2-21
    1.4
    115
    2850
    12.2
    78
    Y90L-2
    50
    139
    Z2-22
    1.9
    115
    2850
    16.6
    79
    Y100L-2
    55
    140
    Z2-31
    2.5
    115
    2850
    21.8
    81
    Y112M-2
    67
    141
    Z2-32
    3.5
    115
    2850
    30.5
    81.5
    Y132S1-2
    79
    142
    Z2-41
    4.8
    115
    2850
    41.8
    81.5
    Y132S2-2
    82
    143
    Z2-42
    6.5
    115
    2850
    56.5
    83
    Y160M1-2
    96
    144
    Z2-51
    9
    115
    2850
    78.2
    84.5
    Y160M2-2
    144
    145
    Z2-52
    11.5
    115
    2850
    100
    85
    Y160M2-2
    156

    Z2 series (115V,1450r/min) of generator
    serial number
    motor type
    kW
    V
    r/min
    A
    original motor type
    kg
    rating power
    rating voltage
    rating running speed
    rating current
    efficiency
    weight
    146
    Z2-21
    0.7
    115
    1450
    6.15
    70
    Y90S-4
    50
    147
    Z2-22
    1
    115
    1450
    8.7
    73
    Y90L-4
    55
    148
    Z2-31
    1.4
    115
    1450
    12.2
    77
    Y100L1-4
    67
    149
    Z2-32
    1.9
    115
    1450
    16.5
    79
    Y100L2-4
    79
    150
    Z2-41
    2.5
    115
    1450
    21.8
    79
    Y112M-4
    82
    151
    Z2-42
    3.5
    115
    1450
    30.5
    81
    Y132S-4
    96
    152
    Z2-51
    4.8
    115
    1450
    41.8
    81
    Y132M-4
    144
    153
    Z2-52
    6.5
    115
    1450
    56.5
    83.5
    Y160M-4
    156
    154
    Z2-61
    9
    115
    1450
    78.2
    84
    Y160M-4
    180
    155
    Z2-62
    11.5
    115
    1450
    100
    84.5
    Y160L-4
    200
    156
    Z2-71
    15
    115
    1450
    130.4
    85
    Y180M-4
    265
    157
    Z2-72
    19.5
    115
    1450
    170
    85.5
    Y200L-4
    300
    158
    Z2-81
    26
    115
    1450
    226
    86
    Y225S-4
    403


    Z2 series (230V,2850r/min) of generator
    serial number
    motor type
    kW
    V
    r/min
    A
    original motor type
    kg
    rating power
    rating voltage
    rating running speed
    rating current
    efficiency
    weight
    159
    Z2-21
    1.4
    230
    2850
    6.1
    78
    Y90L-2
    50
    160
    Z2-22
    1.9
    230
    2850
    8.3
    79
    Y100L-2
    55
    161
    Z2-31
    2.5
    230
    2850
    10.9
    81
    Y112M-2
    67
    162
    Z2-32
    3.5
    230
    2850
    15.3
    81.5
    Y132S1-2
    79
    163
    Z2-41
    4.8
    230
    2850
    20.9
    81.5
    Y132S2-2
    82
    164
    Z2-42
    6.5
    230
    2850
    28.3
    83
    Y160M1-2
    96
    165
    Z2-51
    9
    230
    2850
    39.1
    84.5
    Y160M2-2
    144
    166
    Z2-52
    11.5
    230
    2850
    50
    85
    Y160M2-2
    156
    167
    Z2-61
    15
    230
    2850
    65.2
    86
    Y160L-2
    180
    168
    Z2-62
    19.5
    230
    2850
    84.8
    86.5
    Y200L1-2
    200


    Z2 series (230V,1450r/min) of generator
    serial number
    motor type
    kW
    V
    r/min
    A
    original motor type
    kg
    rating power
    rating voltage
    rating running speed
    rating current
    efficiency
    weight
    169
    Z2-21
    0.7
    230
    1450
    3.04
    70
    Y90S-4
    50
    170
    Z2-22
    1
    230
    1450
    4.35
    73
    Y90L-4
    55
    171
    Z2-31
    1.4
    230
    1450
    6.1
    77
    Y100L1-4
    67
    172
    Z2-32
    1.9
    230
    1450
    8.3
    79
    Y100L2-4
    79
    173
    Z2-41
    2.5
    230
    1450
    10.9
    79
    Y112M-4
    82
    174
    Z2-42
    3.5
    230
    1450
    15.3
    81
    Y132S-4
    96
    175
    Z2-51
    4.8
    230
    1450
    20.9
    81
    Y132M-4
    144
    176
    Z2-52
    6.5
    230
    1450
    28.3
    83.5
    Y160M-4
    156
    177
    Z2-61
    9
    230
    1450
    39.1
    84
    Y160M-4
    180
    178
    Z2-62
    11.5
    230
    1450
    50
    84.5
    Y160L-4
    200
    179
    Z2-71
    15
    230
    1450
    65.2
    85
    Y180M-4
    265
    180
    Z2-72
    19.5
    230
    1450
    85
    85.5
    Y200L-4
    300
    181
    Z2-81
    26
    230
    1450
    113
    86
    Y225S-4
    403
    182
    Z2-82
    35
    230
    1450
    152.2
    87
    Y225M-4
    430
    183
    Z2-91
    48
    230
    1450
    209
    88
    Y280S-4
    647
    184
    Z2-92
    65
    230
    1450
    283
    88.5
    Y280M-4
    681
    185
    Z2-101
    90
    230
    1450
    392
    89
    Y315S-4
    945
    186
    Z2-102
    115
    230
    1450
    500
    89
    Y315M1-4
    1083
    187
    Z2-111
    145
    230
    1450
    630
    90
    Y315M2-4
    1265
    188
    Z2-112
    185
    230
    1450
    805
    91
    Y355M2-4
    1510

    Z2 series (110/160V,2850r/min) of voltage regulation generator
    Serial number
    motor type
    rating data
    voltage
    prime
    kg
    kw
    V
    r/min
    A
    110V
        160V
    power
    voltage
    running speed
    current
    efficiency
    kw
    A
    kw
    A
    motor type
    weight
    power
    current
    power
    current
    189
    Z2-21
    1.1
    135
    2850
    8.15
    76
    0.9
    8.15
    1.1
    6.88
    Y90L-2
    50
    190
    Z2-22
    1.5
    135
    2850
    11.2
    79
    1.23
    11.2
    1.5
    9.38
    Y90L-2
    55
    191
    Z2-31
    2.2
    135
    2850
    16.3
    79.5
    1.8
    16.3
    2.2
    13.8
    Y100L-2
    67
    192
    Z2-32
    3
    135
    2850
    22.2
    81.5
    2.44
    22.2
    3
    18.8
    Y112M-2
    70
    193
    Z2-41
    4
    135
    2850
    29.6
    78
    3.26
    29.6
    4
    25
    Y132S1-2
    82
    194
    Z2-42
    5.5
    135
    2850
    40.8
    81
    4.49
    40.8
    5.5
    34.4
    Y132S2-2
    96
    195
    Z2-51
    7.5
    135
    2850
    55.6
    82
    6.12
    55.6
    7.5
    46.9
    Y160M1-2
    144
    196
    Z2-52
    10
    135
    2850
    74.1
    83
    8.15
    74.1
    10
    62.5
    Y160M2-2
    156
    197
    Z2-61
    13
    135
    2850
    96.3
    84
    10.6
    96.3
    13
    81.3
    Y160L-2
    180

    Z2 series (110/160V,1450r/min) of voltage regulation generator
    serial
    number
    motor type
    rating data
    voltage
    prime
    kg
    kw
    V
    r/min
    A
    110V
    160V
    power
    voltage
    running speed
    current
    efficiency
    kw
    A
    kw
    A
    motor type
    weight
    power
    current
    power
    current
    198
    Z2-21
    0.6
    135
    1450
    4.45
    67
    0.49
    4.45
    0.6
    3.75
    Y90S-4
    50
    199
    Z2-22
    0.8
    135
    1450
    5.93
    73
    0.65
    5.93
    0.8
    5
    Y90S-4
    55
    200
    Z2-31
    1.1
    135
    1450
    8.15
    77
    0.9
    8.15
    1.1
    6.88
    Y90L-4
    67
    201
    Z2-32
    1.5
    135
    1450
    11.2
    77
    1.23
    11.2
    1.5
    9.4
    Y100L1-4
    79
    202
    Z2-41
    2.2
    135
    1450
    16.3
    75
    1.8
    16.3
    2.2
    13.8
    Y100L2-4
    82
    203
    Z2-42
    3
    135
    1450
    22.2
    80
    2.44
    22.2
    3
    18.8
    Y112M-4
    96
    204
    Z2-51
    4
    135
    1450
    29.6
    80
    3.26
    29.6
    4
    25
    Y132S-4
    144
    205
    Z2-52
    5.5
    135
    1450
    40.8
    81
    4.49
    40.8
    5.5
    34.4
    Y132M-4
    156
    206
    Z2-61
    7.5
    135
    1450
    55.6
    83
    6.12
    55.6
    7.5
    46.9
    Y160M-4
    180
    207
    Z2-62
    10
    135
    1450
    74.1
    81
    8.15
    74.1
    10
    62.5
    Y160L-4
    200
    208
    Z2-71
    13
    135
    1450
    96.3
    83
    10.6
    96.3
    13
    81.3
    Y180M-4
    265
    209
    Z2-72
    17
    135
    1450
    126
    84
    13.9
    126
    17
    106.3
    Y180M-4
    300
    210
    Z2-81
    22
    135
    1450
    163
    85
    17.9
    163
    22
    137.5
    Y200L-4
    403
    211
    Z2-82
    30
    135
    1450
    222
    86
    24.5
    222
    30
    187.5
    Y225S-4
    430

    Z2 series (220/320V,2850r/min) of voltage regulation generator


    rating data
    voltage


    serial
    number
    motor type
    kw
    V
    r/min
    A
    110V
    160V
    prime
    kg
    power
    voltage
    running speed
    current
    efficiency
    kw
    A
    kw
    A
    motor type
    weight
    power
    current
    power
    current
    212
    Z2-21
    1.1
    270
    2850
    4.08
    76
    0.9
    4.08
    1.1
    3.44
    Y90L-2
    50
    213
    Z2-22
    1.5
    270
    2850
    5.6
    70
    1.23
    5.6
    1.5
    4.69
    Y90L-2
    55
    214
    Z2-31
    2.2
    270
    2850
    8.15
    79.5
    1.8
    8.15
    2.2
    6.88
    Y100L-2
    67
    215
    Z2-32
    3
    270
    2850
    11.2
    81.5
    2.44
    11.2
    3
    9.38
    Y112M-2
    79
    216
    Z2-41
    4
    270
    2850
    14.8
    78
    3.26
    14.8
    4
    12.5
    Y132S1-2
    82
    217
    Z2-42
    5.5
    270
    2850
    20.4
    81
    4.49
    20.4
    5.5
    17.2
    Y132S2-2
    96
    218
    Z2-51
    7.5
    270
    2850
    27.8
    82
    6.12
    27.8
    7.5
    23.4
    Y160M1-2
    144
    219
    Z2-52
    10
    270
    2850
    37
    83
    8.15
    37
    10
    31.3
    Y160M2-2
    156
    220
    Z2-61
    13
    270
    2850
    48.2
    84
    10.6
    48.2
    13
    40.7
    Y160L-2
    180
    221
    Z2-62
    17
    270
    2850
    63
    86
    13.9
    63
    17
    53.2
    Y180M-2
    200

    Z2 series (220/320V,1450r/min) of voltage regulation generator
    serial
    number
    motor type
    rating data
    voltage
    prime
    kg
    kw
    V
    r/min
    A
    110V
        160V
    power
    voltage
    running speed
    current
    efficiency
    kw
    A
    kw
    A
    motor type
    weight
    power
    current
    power
    current
    222
    Z2-21
    0.6
    270
    1450
    2.23
    67
    0.49
    2.23
    0.6
    1.88
    Y90S-4
    50
    223
    Z2-22
    0.8
    270
    1450
    2.97
    73
    0.65
    2.97
    0.8
    2.5
    Y90S-4
    55
    224
    Z2-31
    1.1
    270
    1450
    4.08
    77
    0.9
    4.08
    1.1
    3.44
    Y90L-4
    67
    225
    Z2-32
    1.5
    270
    1450
    5.6
    77
    1.23
    5.6
    1.5
    4.7
    Y100L1-4
    79
    226
    Z2-41
    2.2
    270
    1450
    8.15
    75
    1.8
    8.15
    2.2
    6.88
    Y100L2-4
    82
    227
    Z2-42
    3
    270
    1450
    11.2
    80
    2.44
    11.2
    3
    9.38
    Y112M-4
    96
    228
    Z2-51
    4
    270
    1450
    14.8
    80
    3.26
    14.8
    4
    12.5
    Y132S-4
    144
    229
    Z2-52
    5.5
    270
    1450
    20.4
    81
    4.49
    20.4
    5.5
    17.2
    Y132M-4
    156
    230
    Z2-61
    7.5
    270
    1450
    27.8
    83
    6.12
    27.8
    7.5
    23.5
    Y160M-4
    180
    231
    Z2-62
    10
    270
    1450
    37.1
    81
    8.15
    37.1
    10
    31.3
    Y160L-4
    200
    232
    Z2-71
    13
    270
    1450
    48.2
    83
    10.6
    48.2
    13
    40.7
    Y180M-4
    265
    233
    Z2-72
    17
    270
    1450
    63
    84
    13.9
    63
    17
    53.2
    Y180M-4
    300
    234
    Z2-81
    22
    270
    1450
    81.5
    85
    17.9
    81.5
    22
    68.8
    Y200L-4
    403
    235
    Z2-82
    30
    270
    1450
    111.2
    86
    24.5
    111.2
    30
    93.8
    Y225S-4
    430
    236
    Z2-91
    40
    270
    1450
    148
    86
    32.6
    148
    40
    125
    Y250M-4
    647
    237
    Z2-92
    55
    270
    1450
    204
    87
    44.8
    204
    55
    172
    Y280S-4
    681
    238
    Z2-101
    75
    270
    1450
    278
    88.5
    61.2
    278
    75
    234
    Y280M-4
    945
    239
    Z2-102
    100
    270
    1450
    370
    89
    81.7
    370
    100
    312.5
    Y315M1-4
    1083
    240
    Z2-111
    125
    270
    1450
    463
    90
    102
    463
    125
    391
    Y315M2-4
    1265
    241
    Z2-112
    160
    270
    1450
    593
    90.5
    130.4
    593
    160
    500
    Y355M1-4
    1510

    rated voltage 440V DC motor
    motor type
    rating power
    rating voltage
    rating current
    rating running speed
    excitation type
    excitation coltage
    remarks
    kW
    V
    A
    r/min
    V
    Z2-51
    1.2
    440
    3.9
    700/2100
    Shunt
    Z2-32
    2.2
    440
    6
    1500
    Separate
    220
    Z2-42
    4
    440
    10.8
    1800
    Separate
    220
    Z2-62
    5.5
    440
    14.9
    1350/2000
    Shunt
    Z2-52
    7.5
    440
    20
    1500
    Separate
    220
    Z2-42
    7.5
    440
    20
    3000
    Separate
    110/220
    Z2-62
    11
    440
    28.5/30
    1500/3000
    Separate
    220
    Z2-62
    13
    440
    33.7
    1500/2000
    Separate
    220
    Z2-91
    17
    440
    47.5
    600
    Shunt
    Z2-91
    17
    440
    47
    600
    Series
    Z2-71
    17
    440
    45.1
    1500
    Shunt
    Separate
    22
    440
    59.5
    1000

    110或220
    Separate
    22
    440
    57/59
    1500/2000

    220
    Separate
    30
    440
    82.5
    1000

    220
    Separate
    30
    440
    80
    1500

    220
    Separate
    40
    440
    107/109
    600/1200

    110/220
    Separate
    40
    440
    106/108
    750/1500

    220
    Separate
    40
    440
    104.2
    1000

    220
    Z2-112
    75
    440
    191/193
    600/1200
    Separate
    220
    Z2-111
    75
    440
    191
    750
    Separate
    220
    Z2-93
    75
    440
    191.5
    1500
    Separate
    220
    Z2-113
    100
    440
    225
    750/1500
    Separate
    220
    Z2-111
    100
    440
    285/261
    1000/1800
    Separate
    220/440
    Z2-102
    100
    440
    253
    1500
    Separate
    220
    Z2-102
    100/50
    440/220
    254/127
    1500/750
    Comp

    Z2-113
    100/50
    440
    257/131
    850/1700
    Separate
    180

    Z2-112
    125
    440
    318
    1000/1500
    Separate
    220
    Z2-111
    160
    440
    410
    1500
    Separate Comp
    220
    Z2-113
    225
    440
    560
    1500/1800
    Separate
    220


    rated voltage 460V generator
    motor type
    rating power
    rating voltage
    rating current
    rating running speed
    excitation type
    remarks
    kW
    V
    A
    r/min
    Z2-62
    11.5
    460
    25
    1450
    Comp.
    Z2-62
    11.5
    460
    25
    1450
    Separate 230V
    Z2-62
    11.5
    460
    25
    1450
    Separate 220/40V
    Z2-81
    19.5
    460
    42.4
    1450
    Comp.
    Z2-81
    19.5
    460
    42.4
    1450
    Separate 220V
    Z2-82
    26
    460
    56.5
    1450
    Comp.
    Z2-81
    26
    460
    56.5
    1450
    Separate 220V
    Z2-91
    48
    460
    104.5
    1450
    Comp.
    Z2-91
    48
    460
    104.5
    1450
    Separate 110V
    Z2-91
    48
    460
    104.5
    1450
    Separate 220V
    Z2-92
    65
    460
    141.5
    1450
    Comp.
    Z2-92
    65
    460
    141.5
    1450
    Separate 220V
    Z2-101
    65
    460
    141.5
    1450
    Separate 110V
    Z2-101
    65
    460
    141.5
    1450
    Separate 30V
    Z2-93
    65
    460
    141.5
    1450
    Comp.
    Z2-93
    65
    460
    141.5
    1450
    Separate 110V
    Z2-93
    65
    460
    141.5
    1450
    Separate 220V
    Z2-101
    90
    460
    196
    1450
    Comp.
    Z2-101
    90
    460
    196
    1450
    Separate 110V
    Z2-101
    90
    460
    196
    1450
    Separate 220V
    Z2-101
    90
    460
    196
    1450
    Separate 30V
    Z2-101
    90
    460
    196
    1450
    Separate 50V
    Z2-101
    90
    460
    196
    1450
    Separate 220V
    Z2-102
    115
    460
    250
    1450
    Comp.
    Z2-102
    115
    460
    250
    1450
    Separate 220V
    Z2-111
    125
    460
    272
    1450
    Separate 220V
    Z2-111
    145
    460
    316
    1450
    Comp.
    Z2-111
    145
    460
    316
    1450
    Separate 220V
    Z2-111
    145
    460
    316
    1450
    Separate 110V
    Z2-112
    185
    460
    402
    1450
    Comp.
    Z2-112
    185
    460
    402
    1450
    Separate 220V
    Z2-112
    185
    460
    402
    1450
    Separate Comp.220V
    Z2-112
    185
    460
    402
    1450
    Separate 110V

    Z2T wide range speed-adjusting DC motor
    motor type
    rating power
    rating voltage
    rating current
    rating running speed
    excitation type
    remarks
    kW
    V
    A
    r/min
    ZT2-72
    2.5
    220
    16
    300/1200
    Shunt
    ZT2-62
    1.65
    220
    10.4
    350/1400
    Shunt
    ZT2-81
    4
    220
    25/27
    400/1200
    Shunt
    ZT2-101
    12
    220
    67/78
    400/1200
    Separate 200V

    ZT2-113
    40
    220
    210
    400/1200
    Separate 200V

    ZT2-111
    22
    220
    120.5/127
    400/1600
    Shunt

    ZTO2-52
    0.32/0.96
    110
    4.8/12
    450/1350
    Comp.
    ZTO2-52
    0.32/0.96
    220
    2.4/5.9
    450/1350
    Comp.
    ZT2-91
    7.5
    220
    46/48
    500/1500
    Separate 200V

    ZT2-93
    17
    220
    93
    500/1500
    Separate 200V

    ZT2-112
    55
    220
    298/300
    500/1500
    Comp.

    ZT2-52
    1.4
    220
    18/20
    500/2000
    Shunt
    ZT2-52
    1.4
    110
    9.0/9.7
    500/2000
    Shunt
    ZT2-92
    10
    110
    119/133
    500/2000
    Shunt

    ZT2-92
    10
    220
    55/66
    500/2000
    Shunt

    ZT2-101
    13
    220
    71.5/95
    500/2000
    Shunt

    ZT2-102
    22
    220
    121/140
    500/2000
    Shunt
    ZT2-82
    6.5
    220
    37/42
    500/1650
    Separate 200V

    ZT2-92
    17
    220
    93/96
    600/1800
    Shunt

    ZT2-101
    17
    220
    93/102
    600/1800
    Separate 200V

    ZT2-71
    22
    220
    120/135
    600/1800
    Separate 110V/200V

    ZT2-72
    4
    220
    23.6/29
    600/2400
    Shunt

    ZT2-81
    5.5
    220
    33/37
    600/2400
    Shunt

    ZT2-82
    7.5
    110
    88/104
    600/2400
    Shunt

    ZT2-111
    7.5
    220
    43.7/52
    600/2400
    Shunt

    ZT2-42
    55
    220
    283/305
    700/2100
    Shunt

    ZT2-51
    1.2
    220
    7.7/8.5
    700/2100
    Shunt
    ZT2-51
    1.2
    440
    3.9/4.4
    700/2100
    Shunt
    ZT2-51
    1.6
    110
    19.4/24.0
    700/2100
    Shunt
    ZT2-52
    1.6
    220
    10.1/12
    700/2100
    Shunt
    ZT2-52
    2.5
    220
    14.9/15.9
    700/2100
    Shunt
    ZT2-52
    2.5
    110
    29/33
    700/2100
    Shunt
    ZT2-52
    2
    220
    12.5/13.3
    700/2800
    Shunt
    ZT2-82
    13
    220
    72/77
    750/2250
    Shunt
    ZT2-42
    1.1
    220
    6.7/8.2
    750/3000
    Comp.

    ZT2-52
    2.2
    220
    13.4/15
    750/3000
    Shunt
    ZT2-61
    3
    220
    17.7/25
    750/3000
    Shunt
    ZT2-22
    0.3
    110
    4.4
    800/2400
    Shunt
    ZT2-32
    0.8
    220
    4.9/5.7
    1000/3000
    Shunt
    ZT2-41
    1.1
    220
    6.6/8.2
    1000/3000
    Shunt
    ZT2-51
    2.2
    220
    12.8/15
    1000/3000
    Shunt
    ZT2-52
    3
    220
    17.1/20
    1000/3000
    Shunt
    ZT2-82
    17
    220
    91/102
    1000/3000
    Separate 200V



    Z2 series (220V,750r/min) of motor
    serial number
    motor type
    kW
    V
    r/min
    A
    r/min
    kg·m2
    kg
    rating power
    rating voltage
    rating running speed
    rating current
    Max. running speed
    moment of inertia
    weight
    114
    Z2-31
    0.6
    220
    750
    3.96
    1500
    0.085
    67
    115
    Z2-32
    0.8
    220
    750
    5.1
    1500
    0.105
    79
    116
    Z2-41
    1.1
    220
    750
    7.1
    1500
    0.15
    82
    117
    Z2-42
    1.5
    220
    750
    9.2
    1500
    0.18
    96
    118
    Z2-51
    2.2
    220
    750
    13.2
    1500
    0.35
    144
    119
    Z2-52
    3
    220
    750
    17.7
    1500
    0.4
    156
    120
    Z2-61
    4
    220
    750
    22.8
    1500
    0.56
    180
    121
    Z2-62
    5.5
    220
    750
    30.5
    1500
    0.65
    200
    122
    Z2-71
    7.5
    220
    750
    42.8
    1500
    1
    265
    123
    Z2-72
    10
    220
    750
    55.4
    1500
    1.2
    300
    124
    Z2-81
    13
    220
    750
    73.8
    1500
    2.8
    403
    125
    Z2-82
    17
    220
    750
    93.6
    1500
    3.2
    430
    126
    Z2-91
    22
    220
    750
    121
    1500
    5.9
    647
    127
    Z2-92
    30
    220
    750
    161.5
    1500
    7
    681
    128
    Z2-101
    40
    220
    750
    212.5
    1500
    10.3
    945
    129
    Z2-102
    55
    220
    750
    285
    1500
    12
    1086
    130
    Z2-111
    75
    220
    750
    387
    1500
    20.4
    1265
    131
    Z2-112
    100
    220
    750
    514
    1500
    23
    1510

    Z2 series (220V,600r/min) of motor
    serial number
    motor type
    kW
    V
    r/min
    A
    r/min
    kg·m2
    kg
    rating power
    rating voltage
    rating running speed
    rating current
    Max. running speed
    moment of inertia
    weight
    132
    Z2-91
    17
    220
    600
    95.5
    1200
    5.9
    647
    133
    Z2-92
    22
    220
    600
    120.5
    1200
    7
    681
    134
    Z2-101
    30
    220
    600
    162.5
    1200
    10.3
    945
    135
    Z2-102
    40
    220
    600
    214
    1200
    12
    1083
    136
    Z2-111
    55
    220
    600
    287
    1200
    20.4
    1265
    137
    Z2-112
    75
    220
    600
    387
    1200
    23
    1510

    Z2 series (115V,2850r/min) of generator
    serial number
    motor type
    kW
    V
    r/min
    A
    original motor type
    kg
    rating power
    rating voltage
    rating running speed
    rating current
    efficiency
    weight
    138
    Z2-21
    1.4
    115
    2850
    12.2
    78
    Y90L-2
    50
    139
    Z2-22
    1.9
    115
    2850
    16.6
    79
    Y100L-2
    55
    140
    Z2-31
    2.5
    115
    2850
    21.8
    81
    Y112M-2
    67
    141
    Z2-32
    3.5
    115
    2850
    30.5
    81.5
    Y132S1-2
    79
    142
    Z2-41
    4.8
    115
    2850
    41.8
    81.5
    Y132S2-2
    82
    143
    Z2-42
    6.5
    115
    2850
    56.5
    83
    Y160M1-2
    96
    144
    Z2-51
    9
    115
    2850
    78.2
    84.5
    Y160M2-2
    144
    145
    Z2-52
    11.5
    115
    2850
    100
    85
    Y160M2-2
    156

    Z2 series (115V,1450r/min) of generator
    serial number
    motor type
    kW
    V
    r/min
    A
    original motor type
    kg
    rating power
    rating voltage
    rating running speed
    rating current
    efficiency
    weight
    146
    Z2-21
    0.7
    115
    1450
    6.15
    70
    Y90S-4
    50
    147
    Z2-22
    1
    115
    1450
    8.7
    73
    Y90L-4
    55
    148
    Z2-31
    1.4
    115
    1450
    12.2
    77
    Y100L1-4
    67
    149
    Z2-32
    1.9
    115
    1450
    16.5
    79
    Y100L2-4
    79
    150
    Z2-41
    2.5
    115
    1450
    21.8
    79
    Y112M-4
    82
    151
    Z2-42
    3.5
    115
    1450
    30.5
    81
    Y132S-4
    96
    152
    Z2-51
    4.8
    115
    1450
    41.8
    81
    Y132M-4
    144
    153
    Z2-52
    6.5
    115
    1450
    56.5
    83.5
    Y160M-4
    156
    154
    Z2-61
    9
    115
    1450
    78.2
    84
    Y160M-4
    180
    155
    Z2-62
    11.5
    115
    1450
    100
    84.5
    Y160L-4
    200
    156
    Z2-71
    15
    115
    1450
    130.4
    85
    Y180M-4
    265
    157
    Z2-72
    19.5
    115
    1450
    170
    85.5
    Y200L-4
    300
    158
    Z2-81
    26
    115
    1450
    226
    86
    Y225S-4
    403


    Z2 series (230V,2850r/min) of generator
    serial number
    motor type
    kW
    V
    r/min
    A
    original motor type
    kg
    rating power
    rating voltage
    rating running speed
    rating current
    efficiency
    weight
    159
    Z2-21
    1.4
    230
    2850
    6.1
    78
    Y90L-2
    50
    160
    Z2-22
    1.9
    230
    2850
    8.3
    79
    Y100L-2
    55
    161
    Z2-31
    2.5
    230
    2850
    10.9
    81
    Y112M-2
    67
    162
    Z2-32
    3.5
    230
    2850
    15.3
    81.5
    Y132S1-2
    79
    163
    Z2-41
    4.8
    230
    2850
    20.9
    81.5
    Y132S2-2
    82
    164
    Z2-42
    6.5
    230
    2850
    28.3
    83
    Y160M1-2
    96
    165
    Z2-51
    9
    230
    2850
    39.1
    84.5
    Y160M2-2
    144
    166
    Z2-52
    11.5
    230
    2850
    50
    85
    Y160M2-2
    156
    167
    Z2-61
    15
    230
    2850
    65.2
    86
    Y160L-2
    180
    168
    Z2-62
    19.5
    230
    2850
    84.8
    86.5
    Y200L1-2
    200


    Z2 series (230V,1450r/min) of generator
    serial number
    motor type
    kW
    V
    r/min
    A
    original motor type
    kg
    rating power
    rating voltage
    rating running speed
    rating current
    efficiency
    weight
    169
    Z2-21
    0.7
    230
    1450
    3.04
    70
    Y90S-4
    50
    170
    Z2-22
    1
    230
    1450
    4.35
    73
    Y90L-4
    55
    171
    Z2-31
    1.4
    230
    1450
    6.1
    77
    Y100L1-4
    67
    172
    Z2-32
    1.9
    230
    1450
    8.3
    79
    Y100L2-4
    79
    173
    Z2-41
    2.5
    230
    1450
    10.9
    79
    Y112M-4
    82
    174
    Z2-42
    3.5
    230
    1450
    15.3
    81
    Y132S-4
    96
    175
    Z2-51
    4.8
    230
    1450
    20.9
    81
    Y132M-4
    144
    176
    Z2-52
    6.5
    230
    1450
    28.3
    83.5
    Y160M-4
    156
    177
    Z2-61
    9
    230
    1450
    39.1
    84
    Y160M-4
    180
    178
    Z2-62
    11.5
    230
    1450
    50
    84.5
    Y160L-4
    200
    179
    Z2-71
    15
    230
    1450
    65.2
    85
    Y180M-4
    265
    180
    Z2-72
    19.5
    230
    1450
    85
    85.5
    Y200L-4
    300
    181
    Z2-81
    26
    230
    1450
    113
    86
    Y225S-4
    403
    182
    Z2-82
    35
    230
    1450
    152.2
    87
    Y225M-4
    430
    183
    Z2-91
    48
    230
    1450
    209
    88
    Y280S-4
    647
    184
    Z2-92
    65
    230
    1450
    283
    88.5
    Y280M-4
    681
    185
    Z2-101
    90
    230
    1450
    392
    89
    Y315S-4
    945
    186
    Z2-102
    115
    230
    1450
    500
    89
    Y315M1-4
    1083
    187
    Z2-111
    145
    230
    1450
    630
    90
    Y315M2-4
    1265
    188
    Z2-112
    185
    230
    1450
    805
    91
    Y355M2-4
    1510

    Z2 series (110/160V,2850r/min) of voltage regulation generator
    Serial number
    motor type
    rating data
    voltage
    prime
    kg
    kw
    V
    r/min
    A
    110V
        160V
    power
    voltage
    running speed
    current
    efficiency
    kw
    A
    kw
    A
    motor type
    weight
    power
    current
    power
    current
    189
    Z2-21
    1.1
    135
    2850
    8.15
    76
    0.9
    8.15
    1.1
    6.88
    Y90L-2
    50
    190
    Z2-22
    1.5
    135
    2850
    11.2
    79
    1.23
    11.2
    1.5
    9.38
    Y90L-2
    55
    191
    Z2-31
    2.2
    135
    2850
    16.3
    79.5
    1.8
    16.3
    2.2
    13.8
    Y100L-2
    67
    192
    Z2-32
    3
    135
    2850
    22.2
    81.5
    2.44
    22.2
    3
    18.8
    Y112M-2
    70
    193
    Z2-41
    4
    135
    2850
    29.6
    78
    3.26
    29.6
    4
    25
    Y132S1-2
    82
    194
    Z2-42
    5.5
    135
    2850
    40.8
    81
    4.49
    40.8
    5.5
    34.4
    Y132S2-2
    96
    195
    Z2-51
    7.5
    135
    2850
    55.6
    82
    6.12
    55.6
    7.5
    46.9
    Y160M1-2
    144
    196
    Z2-52
    10
    135
    2850
    74.1
    83
    8.15
    74.1
    10
    62.5
    Y160M2-2
    156
    197
    Z2-61
    13
    135
    2850
    96.3
    84
    10.6
    96.3
    13
    81.3
    Y160L-2
    180

    Z2 series (110/160V,1450r/min) of voltage regulation generator
    serial
    number
    motor type
    rating data
    voltage
    prime
    kg
    kw
    V
    r/min
    A
    110V
    160V
    power
    voltage
    running speed
    current
    efficiency
    kw
    A
    kw
    A
    motor type
    weight
    power
    current
    power
    current
    198
    Z2-21
    0.6
    135
    1450
    4.45
    67
    0.49
    4.45
    0.6
    3.75
    Y90S-4
    50
    199
    Z2-22
    0.8
    135
    1450
    5.93
    73
    0.65
    5.93
    0.8
    5
    Y90S-4
    55
    200
    Z2-31
    1.1
    135
    1450
    8.15
    77
    0.9
    8.15
    1.1
    6.88
    Y90L-4
    67
    201
    Z2-32
    1.5
    135
    1450
    11.2
    77
    1.23
    11.2
    1.5
    9.4
    Y100L1-4
    79
    202
    Z2-41
    2.2
    135
    1450
    16.3
    75
    1.8
    16.3
    2.2
    13.8
    Y100L2-4
    82
    203
    Z2-42
    3
    135
    1450
    22.2
    80
    2.44
    22.2
    3
    18.8
    Y112M-4
    96
    204
    Z2-51
    4
    135
    1450
    29.6
    80
    3.26
    29.6
    4
    25
    Y132S-4
    144
    205
    Z2-52
    5.5
    135
    1450
    40.8
    81
    4.49
    40.8
    5.5
    34.4
    Y132M-4
    156
    206
    Z2-61
    7.5
    135
    1450
    55.6
    83
    6.12
    55.6
    7.5
    46.9
    Y160M-4
    180
    207
    Z2-62
    10
    135
    1450
    74.1
    81
    8.15
    74.1
    10
    62.5
    Y160L-4
    200
    208
    Z2-71
    13
    135
    1450
    96.3
    83
    10.6
    96.3
    13
    81.3
    Y180M-4
    265
    209
    Z2-72
    17
    135
    1450
    126
    84
    13.9
    126
    17
    106.3
    Y180M-4
    300
    210
    Z2-81
    22
    135
    1450
    163
    85
    17.9
    163
    22
    137.5
    Y200L-4
    403
    211
    Z2-82
    30
    135
    1450
    222
    86
    24.5
    222
    30
    187.5
    Y225S-4
    430

    Z2 series (220/320V,2850r/min) of voltage regulation generator


    rating data
    voltage


    serial
    number
    motor type
    kw
    V
    r/min
    A
    110V
    160V
    prime
    kg
    power
    voltage
    running speed
    current
    efficiency
    kw
    A
    kw
    A
    motor type
    weight
    power
    current
    power
    current
    212
    Z2-21
    1.1
    270
    2850
    4.08
    76
    0.9
    4.08
    1.1
    3.44
    Y90L-2
    50
    213
    Z2-22
    1.5
    270
    2850
    5.6
    70
    1.23
    5.6
    1.5
    4.69
    Y90L-2
    55
    214
    Z2-31
    2.2
    270
    2850
    8.15
    79.5
    1.8
    8.15
    2.2
    6.88
    Y100L-2
    67
    215
    Z2-32
    3
    270
    2850
    11.2
    81.5
    2.44
    11.2
    3
    9.38
    Y112M-2
    79
    216
    Z2-41
    4
    270
    2850
    14.8
    78
    3.26
    14.8
    4
    12.5
    Y132S1-2
    82
    217
    Z2-42
    5.5
    270
    2850
    20.4
    81
    4.49
    20.4
    5.5
    17.2
    Y132S2-2
    96
    218
    Z2-51
    7.5
    270
    2850
    27.8
    82
    6.12
    27.8
    7.5
    23.4
    Y160M1-2
    144
    219
    Z2-52
    10
    270
    2850
    37
    83
    8.15
    37
    10
    31.3
    Y160M2-2
    156
    220
    Z2-61
    13
    270
    2850
    48.2
    84
    10.6
    48.2
    13
    40.7
    Y160L-2
    180
    221
    Z2-62
    17
    270
    2850
    63
    86
    13.9
    63
    17
    53.2
    Y180M-2
    200

    Z2 series (220/320V,1450r/min) of voltage regulation generator
    serial
    number
    motor type
    rating data
    voltage
    prime
    kg
    kw
    V
    r/min
    A
    110V
        160V
    power
    voltage
    running speed
    current
    efficiency
    kw
    A
    kw
    A
    motor type
    weight
    power
    current
    power
    current
    222
    Z2-21
    0.6
    270
    1450
    2.23
    67
    0.49
    2.23
    0.6
    1.88
    Y90S-4
    50
    223
    Z2-22
    0.8
    270
    1450
    2.97
    73
    0.65
    2.97
    0.8
    2.5
    Y90S-4
    55
    224
    Z2-31
    1.1
    270
    1450
    4.08
    77
    0.9
    4.08
    1.1
    3.44
    Y90L-4
    67
    225
    Z2-32
    1.5
    270
    1450
    5.6
    77
    1.23
    5.6
    1.5
    4.7
    Y100L1-4
    79
    226
    Z2-41
    2.2
    270
    1450
    8.15
    75
    1.8
    8.15
    2.2
    6.88
    Y100L2-4
    82
    227
    Z2-42
    3
    270
    1450
    11.2
    80
    2.44
    11.2
    3
    9.38
    Y112M-4
    96
    228
    Z2-51
    4
    270
    1450
    14.8
    80
    3.26
    14.8
    4
    12.5
    Y132S-4
    144
    229
    Z2-52
    5.5
    270
    1450
    20.4
    81
    4.49
    20.4
    5.5
    17.2
    Y132M-4
    156
    230
    Z2-61
    7.5
    270
    1450
    27.8
    83
    6.12
    27.8
    7.5
    23.5
    Y160M-4
    180
    231
    Z2-62
    10
    270
    1450
    37.1
    81
    8.15
    37.1
    10
    31.3
    Y160L-4
    200
    232
    Z2-71
    13
    270
    1450
    48.2
    83
    10.6
    48.2
    13
    40.7
    Y180M-4
    265
    233
    Z2-72
    17
    270
    1450
    63
    84
    13.9
    63
    17
    53.2
    Y180M-4
    300
    234
    Z2-81
    22
    270
    1450
    81.5
    85
    17.9
    81.5
    22
    68.8
    Y200L-4
    403
    235
    Z2-82
    30
    270
    1450
    111.2
    86
    24.5
    111.2
    30
    93.8
    Y225S-4
    430
    236
    Z2-91
    40
    270
    1450
    148
    86
    32.6
    148
    40
    125
    Y250M-4
    647
    237
    Z2-92
    55
    270
    1450
    204
    87
    44.8
    204
    55
    172
    Y280S-4
    681
    238
    Z2-101
    75
    270
    1450
    278
    88.5
    61.2
    278
    75
    234
    Y280M-4
    945
    239
    Z2-102
    100
    270
    1450
    370
    89
    81.7
    370
    100
    312.5
    Y315M1-4
    1083
    240
    Z2-111
    125
    270
    1450
    463
    90
    102
    463
    125
    391
    Y315M2-4
    1265
    241
    Z2-112
    160
    270
    1450
    593
    90.5
    130.4
    593
    160
    500
    Y355M1-4
    1510

    rated voltage 440V DC motor
    motor type
    rating power
    rating voltage
    rating current
    rating running speed
    excitation type
    excitation coltage
    remarks
    kW
    V
    A
    r/min
    V
    Z2-51
    1.2
    440
    3.9
    700/2100
    Shunt
    Z2-32
    2.2
    440
    6
    1500
    Separate
    220
    Z2-42
    4
    440
    10.8
    1800
    Separate
    220
    Z2-62
    5.5
    440
    14.9
    1350/2000
    Shunt
    Z2-52
    7.5
    440
    20
    1500
    Separate
    220
    Z2-42
    7.5
    440
    20
    3000
    Separate
    110/220
    Z2-62
    11
    440
    28.5/30
    1500/3000
    Separate
    220
    Z2-62
    13
    440
    33.7
    1500/2000
    Separate
    220
    Z2-91
    17
    440
    47.5
    600
    Shunt
    Z2-91
    17
    440
    47
    600
    Series
    Z2-71
    17
    440
    45.1
    1500
    Shunt
    Separate
    22
    440
    59.5
    1000

    110或220
    Separate
    22
    440
    57/59
    1500/2000

    220
    Separate
    30
    440
    82.5
    1000

    220
    Separate
    30
    440
    80
    1500

    220
    Separate
    40
    440
    107/109
    600/1200

    110/220
    Separate
    40
    440
    106/108
    750/1500

    220
    Separate
    40
    440
    104.2
    1000

    220
    Z2-112
    75
    440
    191/193
    600/1200
    Separate
    220
    Z2-111
    75
    440
    191
    750
    Separate
    220
    Z2-93
    75
    440
    191.5
    1500
    Separate
    220
    Z2-113
    100
    440
    225
    750/1500
    Separate
    220
    Z2-111
    100
    440
    285/261
    1000/1800
    Separate
    220/440
    Z2-102
    100
    440
    253
    1500
    Separate
    220
    Z2-102
    100/50
    440/220
    254/127
    1500/750
    Comp

    Z2-113
    100/50
    440
    257/131
    850/1700
    Separate
    180

    Z2-112
    125
    440
    318
    1000/1500
    Separate
    220
    Z2-111
    160
    440
    410
    1500
    Separate Comp
    220
    Z2-113
    225
    440
    560
    1500/1800
    Separate
    220


    rated voltage 460V generator
    motor type
    rating power
    rating voltage
    rating current
    rating running speed
    excitation type
    remarks
    kW
    V
    A
    r/min
    Z2-62
    11.5
    460
    25
    1450
    Comp.
    Z2-62
    11.5
    460
    25
    1450
    Separate 230V
    Z2-62
    11.5
    460
    25
    1450
    Separate 220/40V
    Z2-81
    19.5
    460
    42.4
    1450
    Comp.
    Z2-81
    19.5
    460
    42.4
    1450
    Separate 220V
    Z2-82
    26
    460
    56.5
    1450
    Comp.
    Z2-81
    26
    460
    56.5
    1450
    Separate 220V
    Z2-91
    48
    460
    104.5
    1450
    Comp.
    Z2-91
    48
    460
    104.5
    1450
    Separate 110V
    Z2-91
    48
    460
    104.5
    1450
    Separate 220V
    Z2-92
    65
    460
    141.5
    1450
    Comp.
    Z2-92
    65
    460
    141.5
    1450
    Separate 220V
    Z2-101
    65
    460
    141.5
    1450
    Separate 110V
    Z2-101
    65
    460
    141.5
    1450
    Separate 30V
    Z2-93
    65
    460
    141.5
    1450
    Comp.
    Z2-93
    65
    460
    141.5
    1450
    Separate 110V
    Z2-93
    65
    460
    141.5
    1450
    Separate 220V
    Z2-101
    90
    460
    196
    1450
    Comp.
    Z2-101
    90
    460
    196
    1450
    Separate 110V
    Z2-101
    90
    460
    196
    1450
    Separate 220V
    Z2-101
    90
    460
    196
    1450
    Separate 30V
    Z2-101
    90
    460
    196
    1450
    Separate 50V
    Z2-101
    90
    460
    196
    1450
    Separate 220V
    Z2-102
    115
    460
    250
    1450
    Comp.
    Z2-102
    115
    460
    250
    1450
    Separate 220V
    Z2-111
    125
    460
    272
    1450
    Separate 220V
    Z2-111
    145
    460
    316
    1450
    Comp.
    Z2-111
    145
    460
    316
    1450
    Separate 220V
    Z2-111
    145
    460
    316
    1450
    Separate 110V
    Z2-112
    185
    460
    402
    1450
    Comp.
    Z2-112
    185
    460
    402
    1450
    Separate 220V
    Z2-112
    185
    460
    402
    1450
    Separate Comp.220V
    Z2-112
    185
    460
    402
    1450
    Separate 110V

    Z2T wide range speed-adjusting DC motor
    motor type
    rating power
    rating voltage
    rating current
    rating running speed
    excitation type
    remarks
    kW
    V
    A
    r/min
    ZT2-72
    2.5
    220
    16
    300/1200
    Shunt
    ZT2-62
    1.65
    220
    10.4
    350/1400
    Shunt
    ZT2-81
    4
    220
    25/27
    400/1200
    Shunt
    ZT2-101
    12
    220
    67/78
    400/1200
    Separate 200V

    ZT2-113
    40
    220
    210
    400/1200
    Separate 200V

    ZT2-111
    22
    220
    120.5/127
    400/1600
    Shunt

    ZTO2-52
    0.32/0.96
    110
    4.8/12
    450/1350
    Comp.
    ZTO2-52
    0.32/0.96
    220
    2.4/5.9
    450/1350
    Comp.
    ZT2-91
    7.5
    220
    46/48
    500/1500
    Separate 200V

    ZT2-93
    17
    220
    93
    500/1500
    Separate 200V

    ZT2-112
    55
    220
    298/300
    500/1500
    Comp.

    ZT2-52
    1.4
    220
    18/20
    500/2000
    Shunt
    ZT2-52
    1.4
    110
    9.0/9.7
    500/2000
    Shunt
    ZT2-92
    10
    110
    119/133
    500/2000
    Shunt

    ZT2-92
    10
    220
    55/66
    500/2000
    Shunt

    ZT2-101
    13
    220
    71.5/95
    500/2000
    Shunt

    ZT2-102
    22
    220
    121/140
    500/2000
    Shunt
    ZT2-82
    6.5
    220
    37/42
    500/1650
    Separate 200V

    ZT2-92
    17
    220
    93/96
    600/1800
    Shunt

    ZT2-101
    17
    220
    93/102
    600/1800
    Separate 200V

    ZT2-71
    22
    220
    120/135
    600/1800
    Separate 110V/200V

    ZT2-72
    4
    220
    23.6/29
    600/2400
    Shunt

    ZT2-81
    5.5
    220
    33/37
    600/2400
    Shunt

    ZT2-82
    7.5
    110
    88/104
    600/2400
    Shunt

    ZT2-111
    7.5
    220
    43.7/52
    600/2400
    Shunt

    ZT2-42
    55
    220
    283/305
    700/2100
    Shunt

    ZT2-51
    1.2
    220
    7.7/8.5
    700/2100
    Shunt
    ZT2-51
    1.2
    440
    3.9/4.4
    700/2100
    Shunt
    ZT2-51
    1.6
    110
    19.4/24.0
    700/2100
    Shunt
    ZT2-52
    1.6
    220
    10.1/12
    700/2100
    Shunt
    ZT2-52
    2.5
    220
    14.9/15.9
    700/2100
    Shunt
    ZT2-52
    2.5
    110
    29/33
    700/2100
    Shunt
    ZT2-52
    2
    220
    12.5/13.3
    700/2800
    Shunt
    ZT2-82
    13
    220
    72/77
    750/2250
    Shunt
    ZT2-42
    1.1
    220
    6.7/8.2
    750/3000
    Comp.

    ZT2-52
    2.2
    220
    13.4/15
    750/3000
    Shunt
    ZT2-61
    3
    220
    17.7/25
    750/3000
    Shunt
    ZT2-22
    0.3
    110
    4.4
    800/2400
    Shunt
    ZT2-32
    0.8
    220
    4.9/5.7
    1000/3000
    Shunt
    ZT2-41
    1.1
    220
    6.6/8.2
    1000/3000
    Shunt
    ZT2-51
    2.2
    220
    12.8/15
    1000/3000
    Shunt
    ZT2-52
    3
    220
    17.1/20
    1000/3000
    Shunt
    ZT2-82
    17
    220
    91/102
    1000/3000
    Separate 200V

  •

    motor
    type

     overall dimension

    A

    B

    C

    D

    D2

    E

    E2

    F

    f

    g

    g1

    H

    K

    L8

    h1

    b

    l

    l1

    h

    b1

    b2

    D3

    Z2-11

    145

    155

    80

    14

    14

    30

    30

    4

    4

    15.5

    15.5

    112

    12

    420.5

    11

    180

    180

    390

    215

    185

    120

    200

    Z2-12

    145

    175

    80

    14

    14

    30

    30

    4

    4

    15.5

    15.5

    112

    12

    440.5

    11

    180

    200

    410

    215

    185

    120

    200

    Z2-21

    200

    180

    73

    18

    18

    40

    40

    5

    5

    19.8

    19.8

    140

    15

    464.5

    15

    240

    215

    425

    310

    215

    160

    258

    Z2-22

    200

    205

    73

    18

    18

    40

    40

    5

    5

    19.8

    19.8

    140

    15

    489.5

    15

    240

    240

    450

    310

    215

    160

    258

    Z2-31

    225

    225

    74

    22

    22

    50

    50

    6

    6

    24.2

    24.2

    150

    15

    552

    15

    270

    255

    500

    345

    230

    160

    282

    Z2-32

    225

    260

    74

    22

    22

    50

    50

    6

    6

    24.2

    24.2

    150

    15

    587

    15

    270

    290

    535

    345

    230

    160

    282

    Z2-41

    240

    195

    103

    28

    28

    60

    60

    8

    8

    30.5

    30.5

    160

    15

    580

    15

    290

    235

    520

    370

    250

    180

    305

    Z2-42

    240

    225

    103

    28

    28

    60

    60

    8

    8

    30.5

    30.5

    160

    15

    610

    15

    290

    270

    555

    370

    250

    180

    305

    Z2-51

    264

    225

    115

    32

    32

    80

    80

    10

    10

    34.8

    34.8

    180

    19

    700

    18

    345

    285

    625

    420

    295

    210

    355

    Z2-52

    264

    265

    115

    32

    32

    80

    80

    10

    10

    34.8

    34.8

    180

    19

    740

    18

    345

    315

    665

    420

    295

    210

    355

    Z2-61

    300

    265

    106

    38

    38

    80

    80

    12

    12

    40.8

    40.8

    225

    19

    736

    18

    370

    325

    660

    490

    330

    230

    410

    Z2-62

    300

    300

    106

    38

    38

    80

    80

    12

    12

    40.8

    40.8

    225

    19

    771

    18

    370

    360

    695

    490

    330

    230

    410

    Z2-71

    410

    315

    95

    42

    38

    110

    80

    12

    12

    44.8

    40.8

    250

    24

    857

    20

    500

    365

    785

    540

    355

    270

    445

    Z2-72

    410

    355

    95

    42

    38

    110

    80

    12

    12

    44.8

    40.8

    250

    24

    897

    20

    500

    405

    825

    540

    355

    270

    445

    Z2-81

    460

    355

    105

    48

    42

    110

    110

    14

    12

    51.2

    44.8

    280

    24

    963

    25

    560

    410

    855

    610

    380

    285

    510

    Z2-82

    460

    395

    105

    48

    42

    110

    110

    14

    12

    51.2

    44.8

    280

    ,

    24

    1000

    25

    560

    450

    895

    610

    380

    285

    510



    IMB3 Mounting

    ,

    motor
    type

     overall dimension

    A

    B

    C

    D

    E

    F

    g

    H

    h

    h1

    M

    N

    l

    l1

    b

    b1

    b2

    S1

    n

    P

    k

    l5

    D3

    Z2-11

    145

    155

    80

    14

    30

    4

    15.5

    112

    215

    11

    115

    95

    180

    390

    180

    185

    110

    M8

    4

    135

    12

    29

    201

    Z2-12

    145

    175

    80

    14

    30

    4

    15.5

    112

    215

    11

    115

    95

    200

    410

    180

    185

    110

    M8

    4

    135

    12

    26.5

    201

    Z2-21

    200

    180

    73

    18

    40

    5

    19.8

    140

    310

    15

    145

    120

    215

    425

    240

    215

    135

    M10

    4

    169

    15

    39

    253

    Z2-22

    200

    205

    73

    18

    40

    5

    19.8

    140

    310

    15

    145

    120

    240

    450

    240

    215

    135

    M10

    4

    169

    15

    39

    253

    Z2-31

    225

    225

    74

    22

    50

    6

    24.2

    150

    345

    15

    145

    120

    255

    500

    270

    230

    150

    M10

    4

    169

    15

    55.5

    282

    Z2-32

    225

    260

    74

    22

    50

    6

    24.2

    150

    345

    15

    145

    120

    290

    535

    270

    230

    150

    M10

    4

    169

    15

    55.5

    282



    IMB35 Mounting

    motor
    type

     overall dimension

    A

    B

    C

    D

    E

    F

    g

    H

    K

    S

    n

    N

    M

    l5

    P

    h1

    h2

    h3

    b

    l

    l1

    h

    b1

    b2

    D3

    Z2-41

    240

    195

    111

    28

    60

    8

    30.5

    160

    15

    19

    8

    180

    215

    65

    250

    15

    15

    4

    290

    235

    530

    370

    250

    160

    305

    Z2-42

    240

    225

    113.5

    28

    60

    8

    30.5

    160

    15

    19

    8

    180

    215

    65

    250

    15

    15

    4

    290

    270

    565

    370

    250

    160

    305

    Z2-51

    264

    225

    125

    32

    80

    10

    34.8

    180

    19

    19

    8

    215

    255

    86.5

    300

    18

    15

    4

    345

    285

    630

    420

    295

    185

    355

    Z2-52

    264

    265

    125

    32

    80

    10

    34.8

    180

    19

    19

    8

    215

    255

    86.5

    300

    18

    15

    4

    345

    315

    670

    420

    295

    185

    355

    Z2-61

    300

    265

    121

    38

    80

    12

    40.8

    225

    19

    19

    8

    250

    300

    85.5

    350

    18

    18

    5

    370

    325

    675

    490

    330

    210

    410

    Z2-62

    300

    300

    121

    38

    80

    12

    40.8

    225

    19

    19

    8

    250

    300

    85.5

    350

    18

    18

    5

    370

    360

    710

    490

    330

    210

    410

    Z2-71

    410

    315

    149

    42

    110

    12

    44.8

    250

    24

    19

    4

    350

    400

    115

    470

    20

    20

    5

    500

    365

    840

    540

    355

    240

    445

    Z2-72

    410

    355

    149

    42

    110

    12

    44.8

    250

    24

    19

    4

    350

    400

    115

    470

    20

    20

    5

    500

    405

    880

    540

    355

    240

    445

    Z2-81

    460

    355

    149.5

    48

    110

    14

    51.2

    280

    24

    19

    4

    400

    465

    115

    530

    20

    20

    5

    560

    410

    900

    610

    380

    270

    510

    Z2-82

    460

    395

    147

    48

    110

    14

    51.2

    280

    24

    19

    4

    400

    465

    115

    530

    20

    20

    5

    560

    450

    935

    610

    380

    270

    510



    IMV1 Mounting

    motor type

      overall dimension
