YTSP200L-4TH 30 kW YTSP315M2-4 160 kW YVF2-355M1-6 160kW 380 V IC416 Variable Frequency Inverter Duty Motors were shipped for Iran Feb. 8
Update time：08th,Feb,2021
1 PC YTSP200L-4TH 30 kW1 PC YTSP315M2-4 160 kW
1 PC YVF2-355M1-6 160kW
380 V IC416 Variable Frequency Variable Speed Inverter Duty Motors were shipped for Bandar Abbas, Iran on Feb. 8th, 2021.

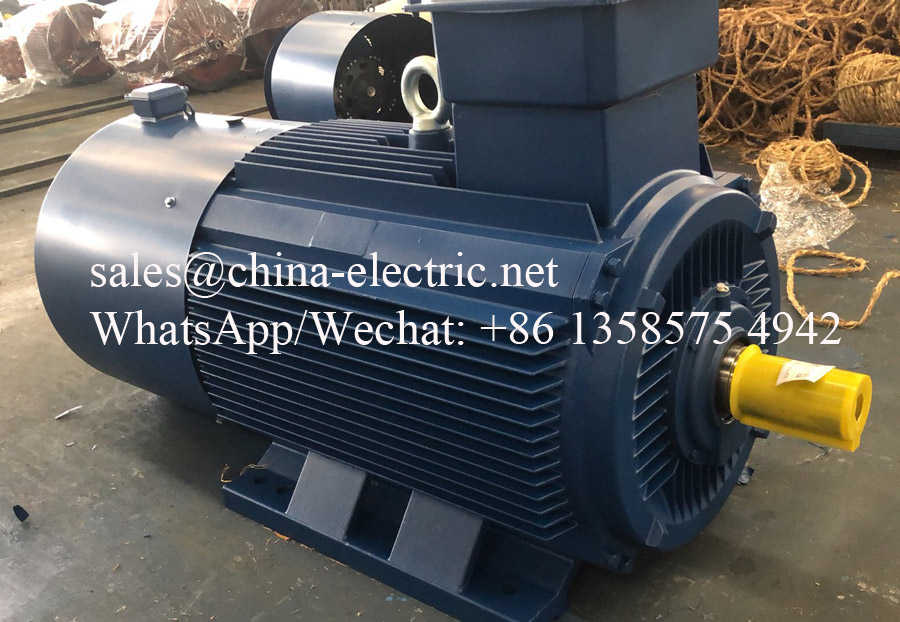

Main parameters for motor YVF2-355M1-6
Type: YVF2-355M1-6 Rated power 160 kW Rated voltage 380 V
Rated current 301.4 A Connection: delta Base frequency 50 Hz
Duty: S1 continuous Insulation class F Cooling: IC416
Enclosure protection IP55 Mounting: IMB3
Constant torque speed range: 3-50 Hz
Constant power frequency range: 50-100 Hz
Main parameters for motor YTSP315M2-4
Type: YTSP315M2-4 Rated power 160 kW Rated voltage 380 V
Rated current 292.32 A Connection: delta Base frequency 50 Hz
Duty: S1 continuous Insulation class F Cooling: IC416
Enclosure protection IP55 Mounting: IMB3
Constant torque speed range: 3-50 Hz
Constant power frequency range: 50-100 Hz

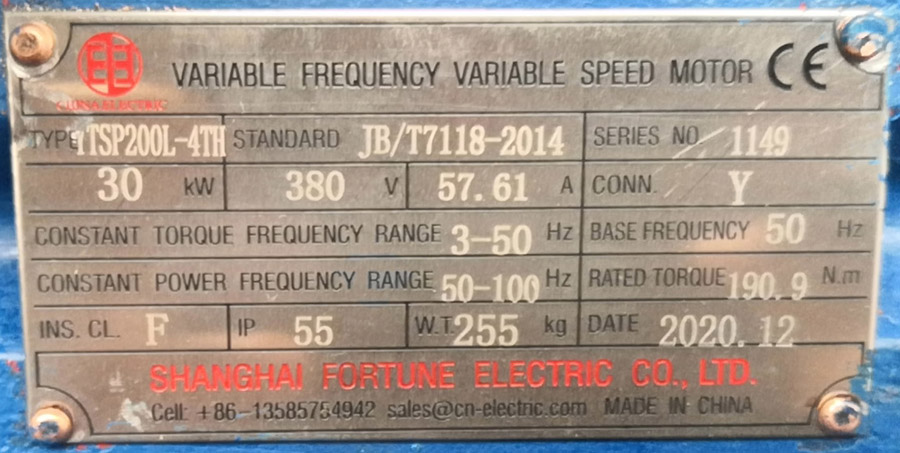

Main parameters for motor YTSP200L-4TH
Type: YTSP200L-4TH Rated power 30 kW Rated voltage 380 V
Rated current 57.61 A Connection: Y (star) Base frequency 50 Hz
Duty: S1 continuous Insulation class F Cooling: IC416
Enclosure protection IP55 Mounting: IMB3
Constant torque speed range: 3-50 Hz
Constant power frequency range: 50-100 Hz
