YRKK630-6 1200 kW 415 V 50 Hz 3 Phase IC611 IP54 Low Voltage Wound Rotor Slip Ring Motor for driving steel rolling rough mill stand was shipped for Pakistan on Aug. 21
Update time：21th,Aug,2021
1 PC YRKK630-6 1200 kW 415 V 50 Hz 3 Phase IC611 IP54 Low Voltage Wound Rotor Slip Ring Motor for driving steel rolling rough mill stand was shipped for Karachi, Pakistan on Aug. 21st, 2021.Main Parameters for YRKK630-6 1200 kW 415 V Low Voltage Wound Rotor Slip Ring Motor:
Type: YRKK630-6 Power factor: 0.90 Rated power: 1200 kW
Mounting: IMB3 (IM1001) Duty: S1 continuous Insulation class F
Stator voltage: 415 V Stator current: 1928.3 A Stator connection: Delta
Rotor voltage: 1556 V Rotor current: 467 A Rotor connection: Y star
Cooling type: IC611 Enclosure protection: IP54 Rated speed: 991 r/min
Bearing brand: FAG Rated frequency: 50 Hz
With 8 pcs PT100 in windings and bearings.
With 220 V 50 Hz single phase anti-condensation space heater

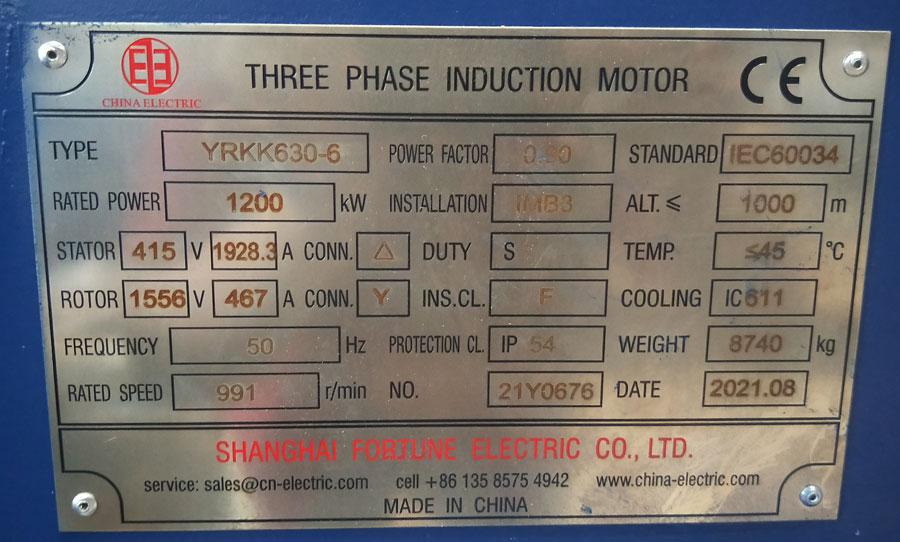

Nameplate for YRKK630-6 1200 kW 415 V Low Voltage Wound Rotor Slip Ring Motor
YRKK630-6 1200 kW 415 V Wound Rotor Slip Ring Motor for steel rolling rough mill stand
