YR710-12 1000 Kw 6 kV IC01 IP23 high voltage slip ring motor was shipped for Pakistan 9.29.17

Update time：29th,Sep,2017

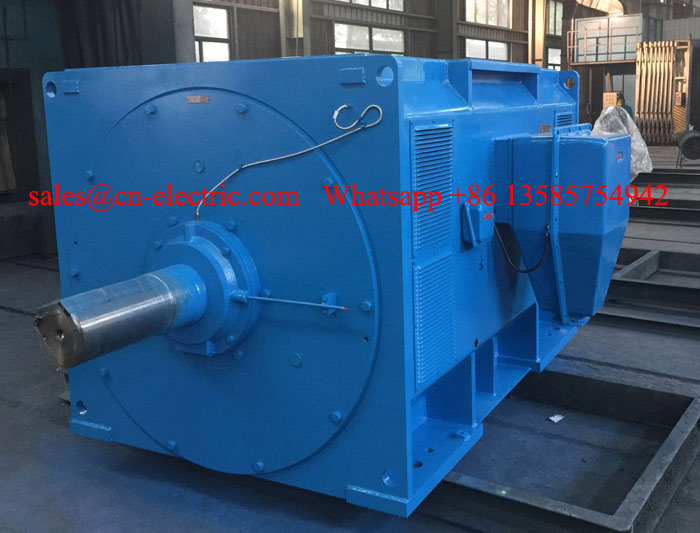

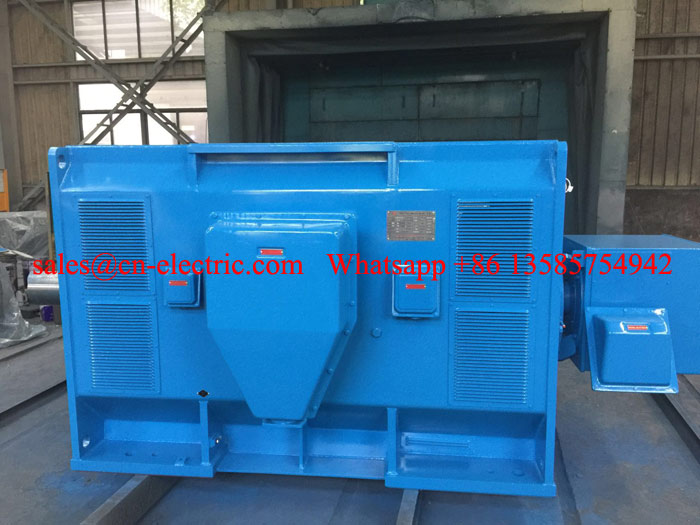

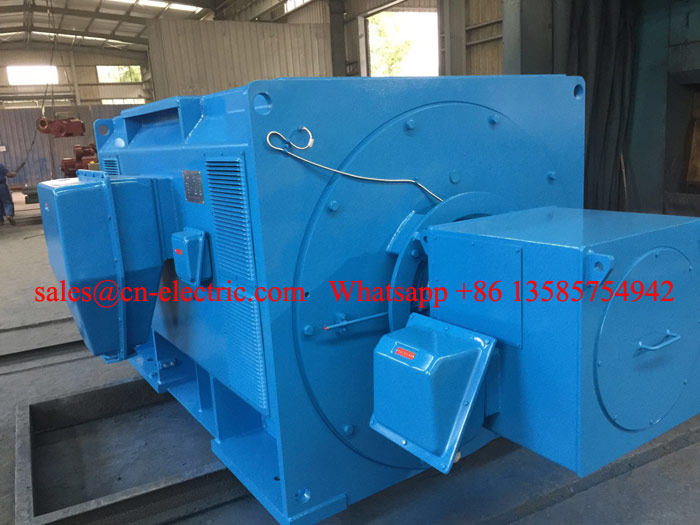

1 PC YR710-12 1000 Kw, stator 6000 V 50 Hz, IC01 ODP, IP23, YR series high voltage wound rotor slip ring motor was shipped for Karachi Pakistan on Sep. 29th, 2017

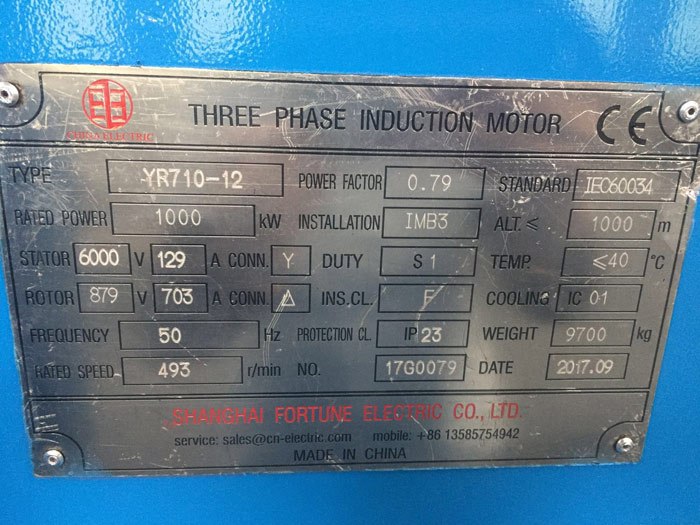

Main technical parameters:

Model: YR710-12                  Rated power: 1000 Kw              Stator voltage: 6000 V                  Stator current: 129 A

Frequency: 50 Hz                  Rated speed: 493 r/min             Duty: S1                                       Insulation class: F

Mounting: IMB3 (IM1001)      Cooling type: IC01 ODP            Bearing type: rolling bearing          Bearing brand: FAG

Protection rating: IP23           Altitude:  ≤1000 m                     Power factor: 0.79                         Application: steel rolling mill
