YR560-6 1000 kW YR560-6 1200 kW 6600 V 50 Hz 3 Phase IC01 IP23 High Voltage Wound Rotor Slip Ring Motors were shipped for Pakistan on Dec. 12

Update time：12th,Dec,2021

1 PC YR560-6 1000 kW 6600 V 50 Hz 3 Phase IC01 IP23 High Voltage Wound Rotor Slip Ring Motor
1 PC YR560-6 1200 kW 6600 V 50 Hz 3 Phase IC01 IP23 High Voltage Wound Rotor Slip Ring Motor
were shipped for Karachi, Pakistan on Dec. 12th, 2021.

Main Parameters for YR560-6 1000 kW 6600 V High Voltage Wound Rotor Slip Ring Motor:
Type: YR560-6 Power factor: 0.87 Rated power: 1000 kW
Mounting: IMB3 (IM1001) Duty: S1 continuous Insulation class F
Stator voltage: 6600 V Stator current: 106.0 A Stator connection: Y star
Rotor voltage: 1166 V Rotor current: 529 A Rotor connection: Y star
Cooling type: IC01 Enclosure protection: IP23 Rated speed: 987 r/min
Bearing brand: FAG Rated frequency: 50 Hz
With 8 pcs PT100 in windings and bearings.
With 220 V 50 Hz single phase anti-condensation space heater

Main Parameters for YR560-6 1200 kW 6600 V High Voltage Wound Rotor Slip Ring Motor:
Type: YR560-6 Power factor: 0.87 Rated power: 1200 kW
Mounting: IMB3 (IM1001) Duty: S1 continuous Insulation class F
Stator voltage: 6600 V Stator current: 126.9 A Stator connection: Y star
Rotor voltage: 1361 V Rotor current: 543 A Rotor connection: Y star
Cooling type: IC01 Enclosure protection: IP23 Rated speed: 987 r/min
Bearing brand: FAG Rated frequency: 50 Hz
With 8 pcs PT100 in windings and bearings.
With 220 V 50 Hz single phase anti-condensation space heater

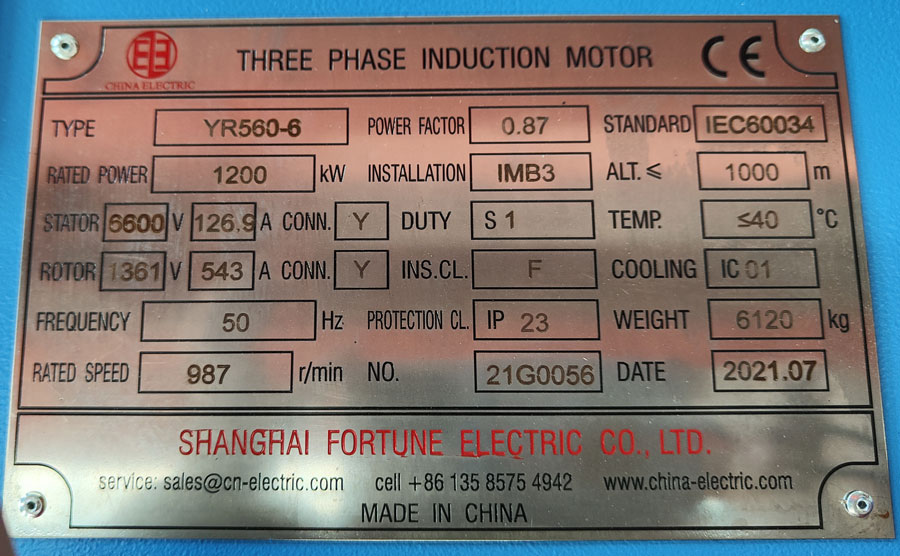

Nameplate for YR560-6 1200 kW 6600 V High Voltage Wound Rotor Slip Ring Motor

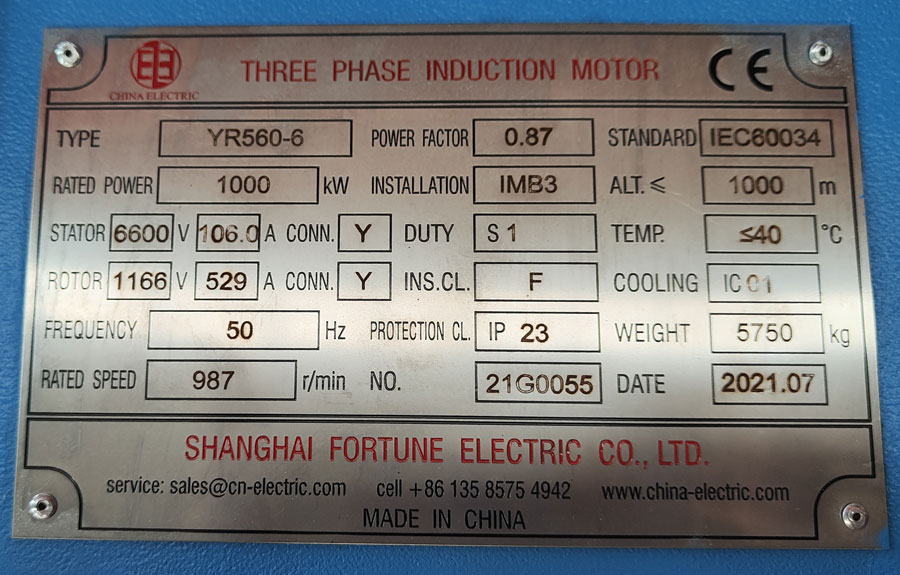

Nameplate for YR560-6 1000 kW 6600 V High Voltage Wound Rotor Slip Ring Motor
