YPKK630-4 2400 kW 6600 V Medium Voltage Variable Frequency Inverter Motor was shipped for Singapore
Update time：18th,Apr,2019
YPKK630-4 2400 kW 6600 V 50 Hz IC666 IP55 YPKK series Medium Voltage Variable Frequency Inverter Motor was shipped for Singapore on April 18th, 2019.Main Parameters:
Model: YPKK630-4 Rated voltage: 6600 V
Base frequency: 50 Hz Rated power: 2400 Kw
Rated speed: 1491 rpm Mounting: IM1002 horizontal/double shaft ends/ feet mounted
Insulation class F Enclosure protection: IP55
Bearing brand: SKF (world best) Bearing type: rolling bearing
Duty: S1 continuous Connection: Y (star)
Frequency range at constant torque: 5~50 Hz Speed range at constant torque: 150~1500 rpm
With 8 PCS PT100 in both bearings and windings for thermal protection
With 230 V 50 Hz single anti-condenstation space heater
Cooling type: IC666 totally enclosed air-air cooled by 415V 50Hz 3 phase independent internal & external cooling fans

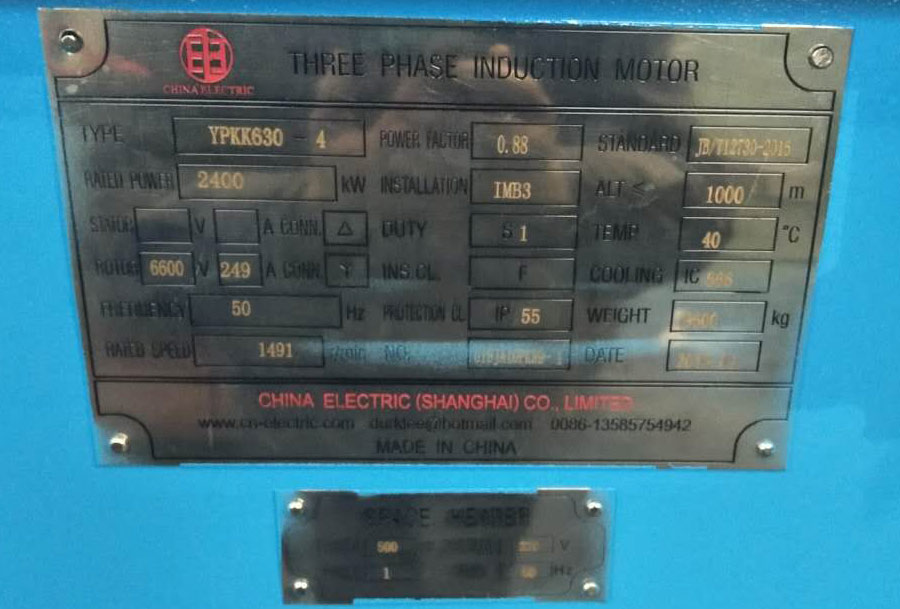

Nameplate of YPKK630-4 2400 kW 6.6 kV IC666 IP55 YPKK Medium Voltage Variable Frequency Inverter Motor

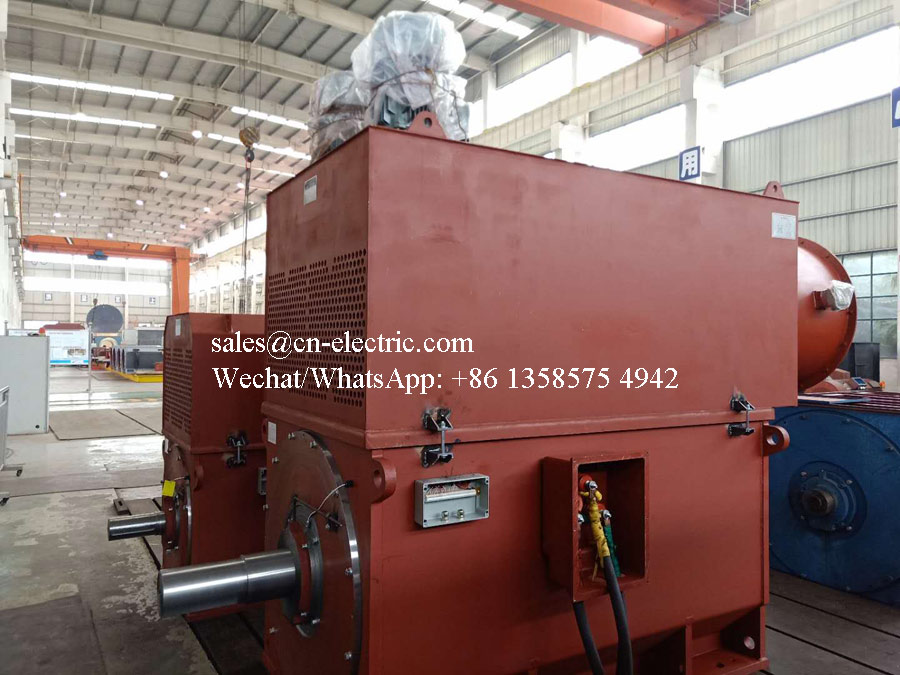

Whole piece YPKK630-4 2400 kW 6.6 kV 50 Hz IC666 IP55 Medium Voltage Variable Frequency Inverter Motor

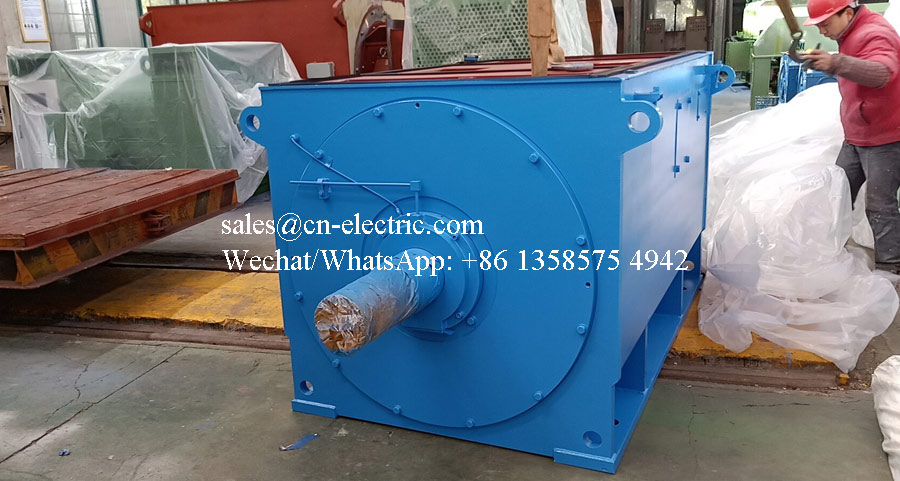

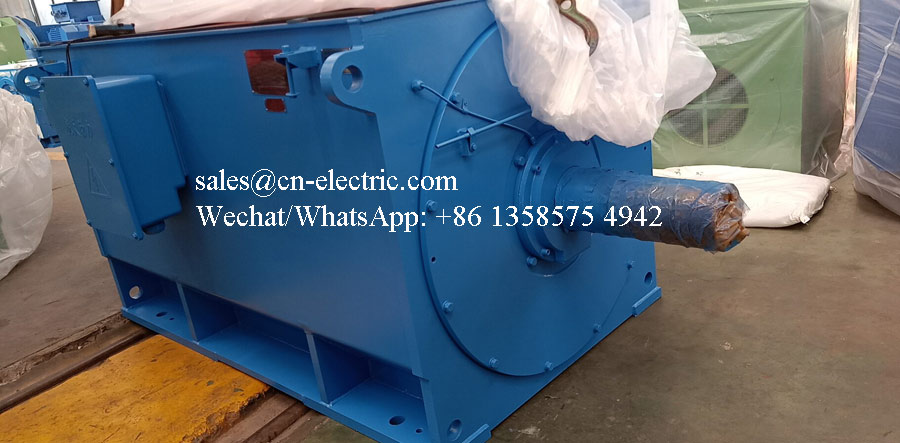

Main Motor Body of YPKK630-4 2400 kW 6.6 kV IC666 IP55 Medium Voltage Variable Frequency Inverter Motor

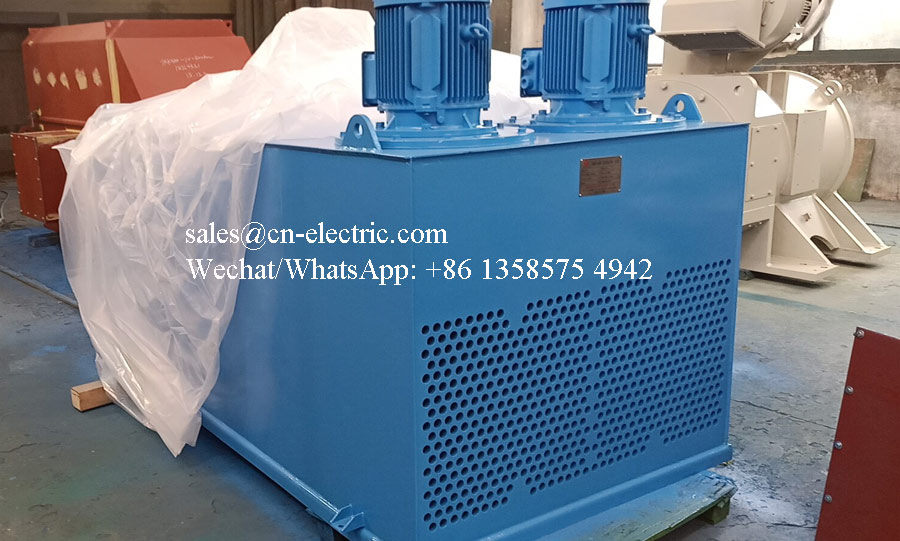

Air-Air Cooler for YPKK630-4 2400 kW 6.6 kV 50 Hz IC666 IP55 Medium Voltage Variable Frequency Inverter Motor

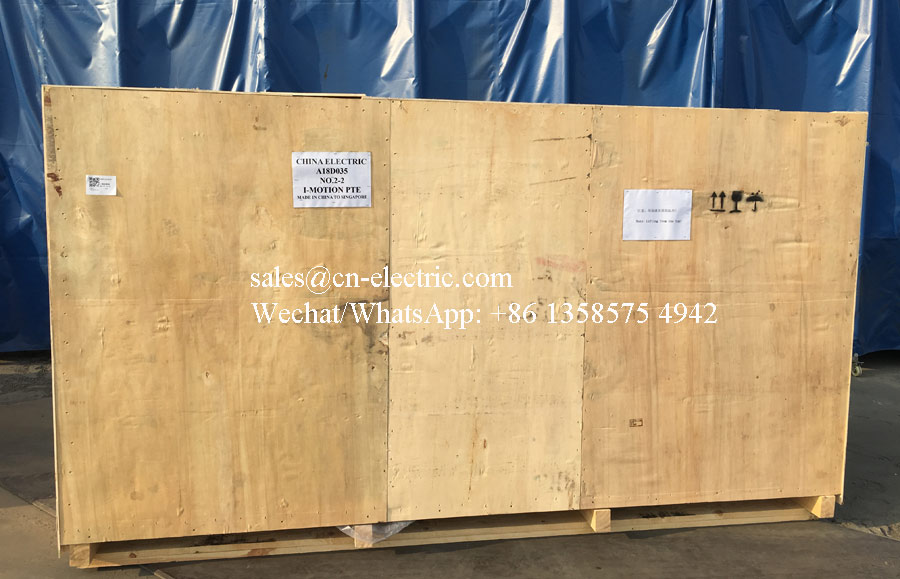

Package for Air-Air Cooler
