YJP Series IP23 IC06 Blower Cooled Variable Frequency Inverter Motor

  •  · Features and application
    YJP Series Variable Frequency Variable Speed Inverter Motors are suitable to various industrial fields with a novel and compact structure, exquisite appearance, reasonable technical design and economical cost.

    1.This type motor has high power density. Each frame has 4-5 output power levels. The motors are small frame size but big power.
    2.Square appearance. taking full use of materials. full laminated structure. unique and perfect ventilation system design wins the national patents.
    3.Comparing with the standard motors, this YJP series motors have 2~3 steps less frame size. This compact structure takes up less space.
    4.According to actual needs, set different base frequency to achieve different base speed;
    5.For the 4 pole and base frequency less than 25 Hz motors, the max speed at constant output power can be 4 times of the base speed or even higher.
    6.Due to Low inertia rotor, YJP series motors have wide speed range and fast response time. The motors are suitable for frequent starting and speed adjusting application.
    7.Motor maximum speed is able to reach 4500 r/min according to special requirements or situations.
    8.Motor adopts corona resistant enameled wire and special insulation structure which is suitable for variable frequency drives.
    9.In order to reduce the shaft current, grounding brushes are installed in the motors which have frame size bigger than 280 mm.
    10.Terminal box and cooling fan can be flexible installed in the places according to customers requirements.

    Main Specifications:

    Item

    Content

    Manufacturing and Inspecting Standard

    GB755-2008 rotate motor rated data and function ( IEC60034 ) ;

    GB10068-2008 vibration and its measurement, evaluation and limits above 56mm frame motor (IEC60034-14);

    GB/T 10069.3-2008 Rotation motor electrical noise measurement methods and limits Part 3: Noise limits

    Rated Voltage

    380 V, 660 V (or other voltage as customer’s request)

    Connection

    △/ Y

    Cooling type

    IC06 (with force ventilated blower)

    Base frequency

    25 Hz, 50 Hz

    (or other frequency 19.3 Hz, 33 Hz of 4 pole; 29.3 Hz, 37.5Hz of 6 pole)

    Insulation

    F

    Frame (mm)

    112, 132, 160, 180, 200, 225, 280, 355, 400

    Working duty

    S1 (S6 working duty refers to Form 2)

    Enclosure protection

    IP23

    Sea level

    ≤ 1000 m

    Ambient temperature

    -15~40oC

    Max. voltage tolerance

    ± 5%

    Couple type

    Direct coupling

    Relative humidity

    90%

    Thermometer in winding

    PTC 140 oC


    Form 2

    Duty cycle

    25%

    40%

    60%

    Service factor

    1.30

    1.20

    1.10


    Main applications:

    Suitable industry

    Driven equipment

    Iron and steel

    Rolling mill; Coiler; Balancer; Tension machine; Shear

    Hoisting, conveying

    Lifting; Rotary; Amplitude; Conveyor

    Lathe

    Main drive

    Water treatment

    Water supply and sewerage

    Oil

    Pumping; Oil and gas transmission; Drilling machine

    Fluid mechanics

    Fan and pump

    General machinery

    Boiler; Compressor; Wire and cable machinery

    Paper making

    Beater and extruder

    Variable speed

    System testing generator

    Cement

    Rotary kiln; Conveyor machine

    Rubber and plastic

    Rubber mixer; Plastic extruder

    Food

    Sugar mill


    Cooling bowers:

    Motor frame (mm)

    YJP160

    YJP180/200

    YJP225

    YJP280

    YJP355

    YJP400

    Blower model

    L064

    L064

    L08

    L09

    L11/L12

    L12

    Blower motor model

    80M2-2

    80M2-2

    100L-2

    112M2-2

    132S1-2

    132S1-2

    Blower motor output (kW)

    1.1

    1.1

    3

    4

    5.5

    5.5

    Blower power supply

    380 V/50 Hz (or else as customer’s request)


    Power-off brake (optional parts):

    Motor frame (mm)

    YJP160

    YJP180

    YJP225

    YJP280

    Brake model

    DZS3-200

    DZS3-450

    DZS3-600

    DZS3-1300

    Brake torque (N.m)

    300

    450

    600

    1300

    Rectifier supply voltage

    AC 380 V

    Rectifier output voltage

    DC 170 V

    Brake power (W)

    200

    200

    210

    400


    Bearing number:

    Motor frame (mm)

    Drive end

    Non-drive end

    YJP 112

    6308 ZZ C3

    6308 ZZ C3

    YJP 132

    6309 ZZ C3

    6309 ZZ C3

    YJP 160

    6312 ZZ C3

    6311 ZZ C3

    YJP 180

    6314 ZZ C3

    6214 ZZ C3

    YJP 200

    6316 ZZ C3

    6314 ZZ C3

    YJP 225

    6318 C3

    6315 ZZ C3

    YJP 280

    6222 C3/6224

    6222 C3

    YJP 355

    6226+NU226 C3

    NU226 C3

    YJP 400

    6228+NU228 C3

    NU228 C3


    Motor speed range (r/min)

    Motor frame

    Rated speed nn

    500

    600

    750

    1000

    1500

    YJP112
    YJP132

    YJP160
    YJP180
    YJP200

    Max. speed at constant output n1

    1000

    1200

    1500

    2000

    3000

    Max. speed nmax

    1200

    1400

    1800

    2400

    3600

    YJP225

    Max. speed at constant output n1

    850

    1000

    1500

    2000

    3000

    Max. speed nmax

    1200

    1400

    1800

    2400

    3000

    YJP280

    Max. speed at constant output n1

    850

    1000

    1500

    2000

    3000

    Max. speed nmax

    1200

    1400

    1800

    2400

    3000

    YJP355

    Max. speed at constant output n1

    1000

    1160

    1125

    1500

    2250

    Max. speed nmax

    1000

    1200

    1500

    1800

    2250

    YJP400

    Max. speed at constant output n1

    750

    870

    1125

    1500

    1800

    Max. speed nmax

    1000

    1000

    1200

    1500

    2000


         · Model explanation
    YJP180P-4 for example
    YJP----series number for IC06 IP23 low voltage inverter motor
    180----frame size 180 mm
    P------iron core length code (K/S/M/L/P/X)
    4------no. of poles


    Data Sheet:

    1500 r/min 4 pole 50 Hz



    1000 r/min
    6 Pole 50 Hz


    750 r/min 4 pole 25 Hz



    500 r/min 6 pole 25 Hz

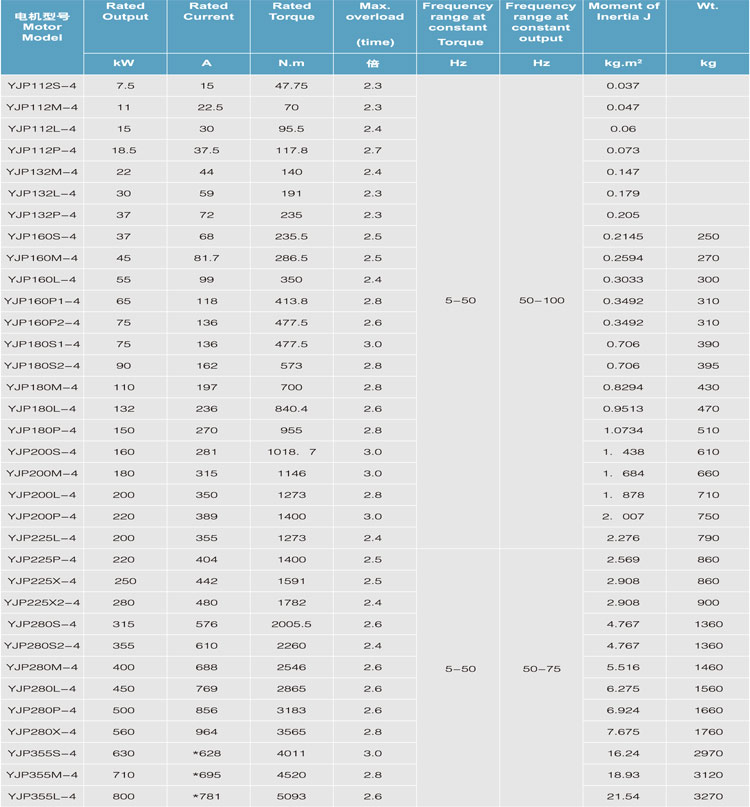

  • 1500 r/min 4 pole 50 Hz

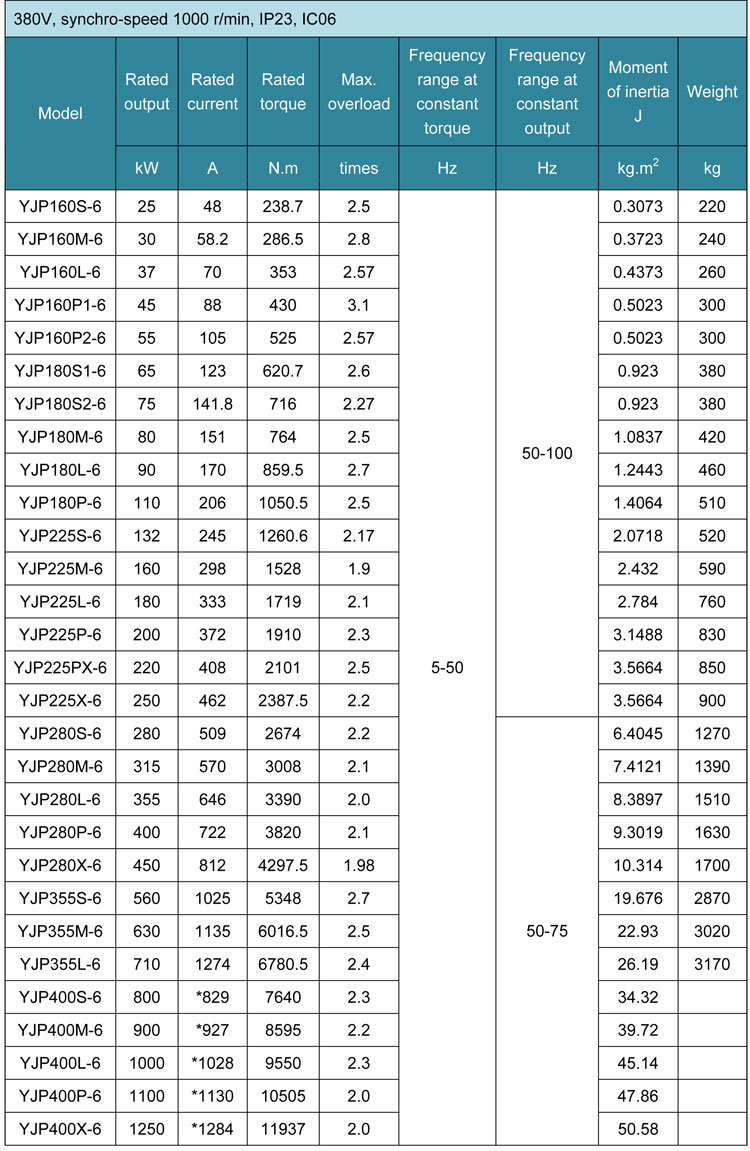

    1000 r/min 6 Pole 50 Hz

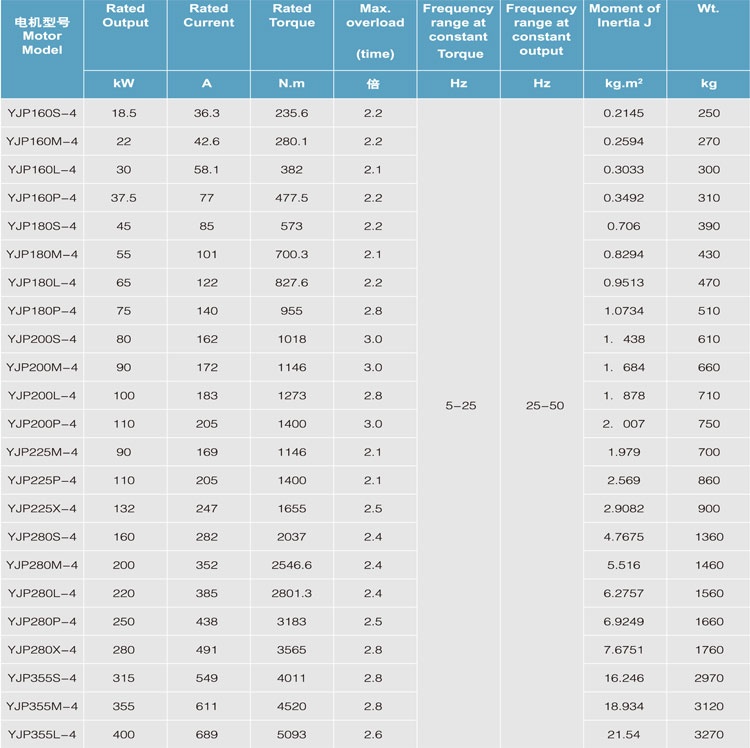

    750 r/min 4 pole 25 Hz

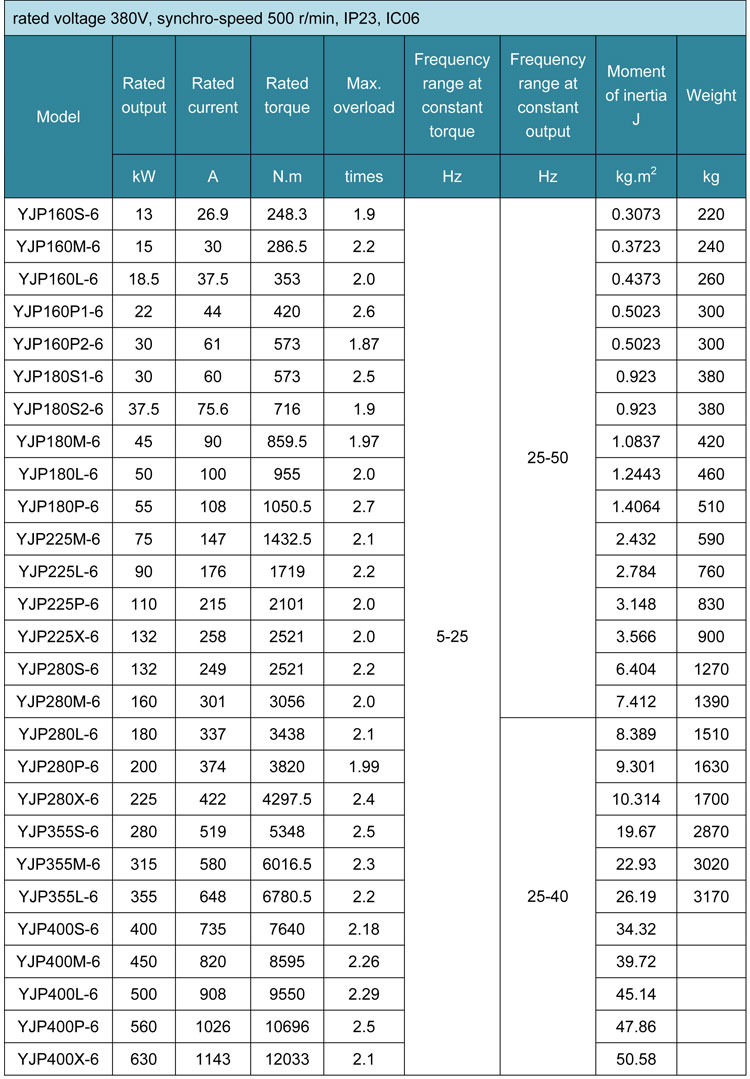

    500 r/min 6 pole 25 Hz

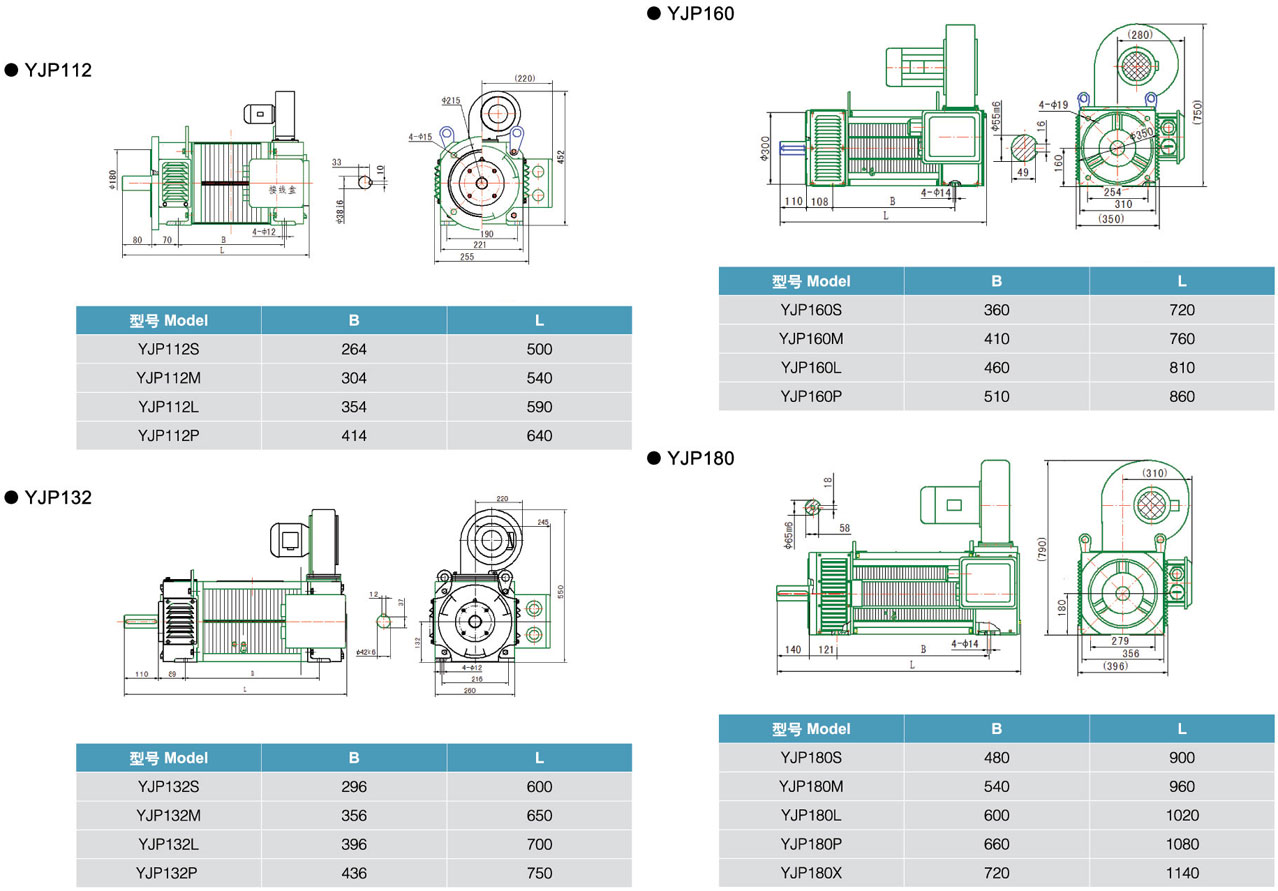

  • YJP112, YJP132, YJP160, YJP180

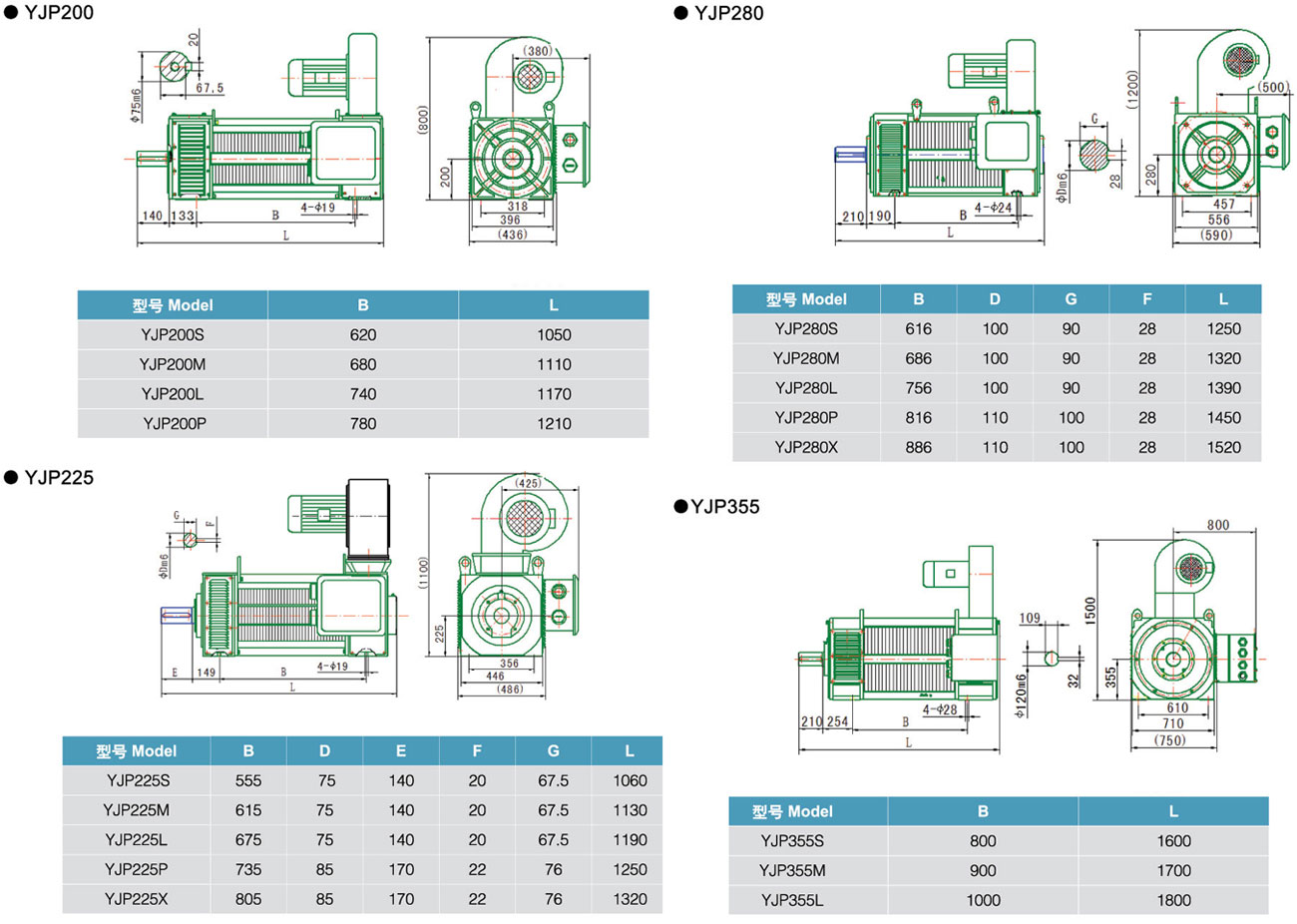

    YJP200, YJP225, YJP280, YJP355

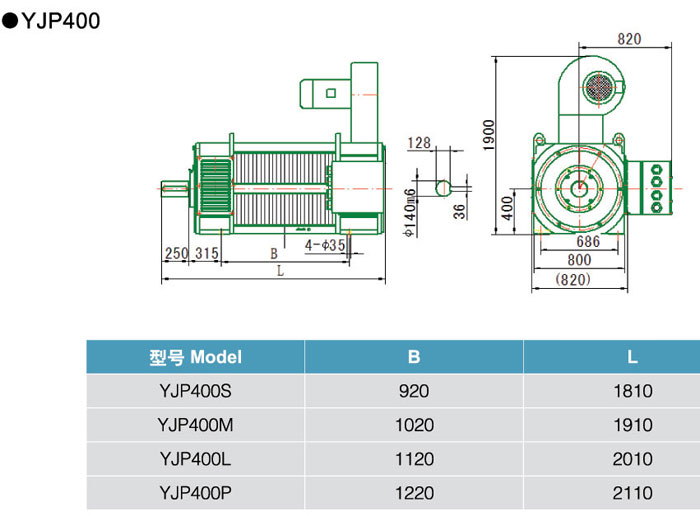

    YJP400
