YB3-355L2-4 315 kW 380/660 V ExdIIBT4Gb flameproof explosion proof squirrel cage ac motor was shipped for Uzbekistan Aug. 6

Update time：06th,Aug,2020

1 PC YB3-355L2-4 315 kW 380/660 V Exd II BT4 Gb YB3 Series flameproof explosion proof squirrel cage ac motor was shipped for Tashkent, Uzbekistan on Aug. 6th, 2020

Main Parameters:
Type: YB3-355L2-4                                     Power factor: 0.9                                           Rated power: 315 kW
Mounting: IMB3                                           Duty: S1 continuous                                      Insulation class F
Stator voltage: 380/660 V                          Stator current: 559/312.8 A                          Stator connection: ∆ delta/ Y star
Cooling type: IC411 TEFC                           Enclosure protection: IP55                            Rated speed: 1490 r/min
Rated frequency: 50 Hz                               Full load efficiency: 95.1%                             Explosive-proof grade: Exd II BT4 Gb

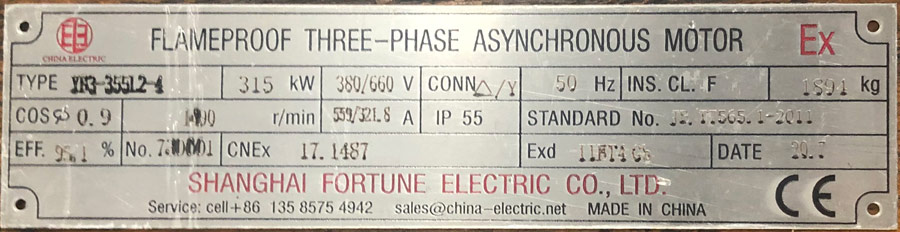

Nameplate of YB3-355L2-4 380/660 V 315 kW Flameproof three phase asynchronous motor

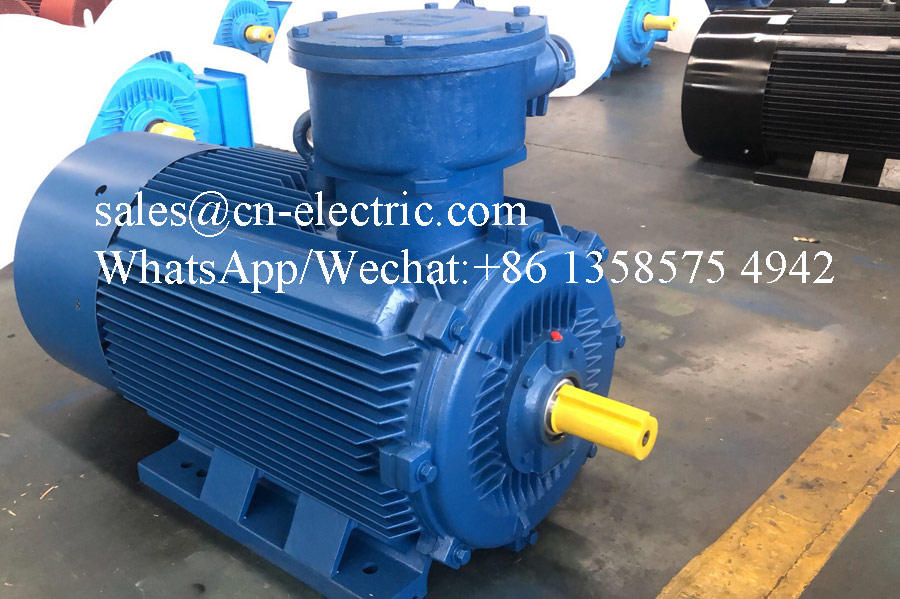

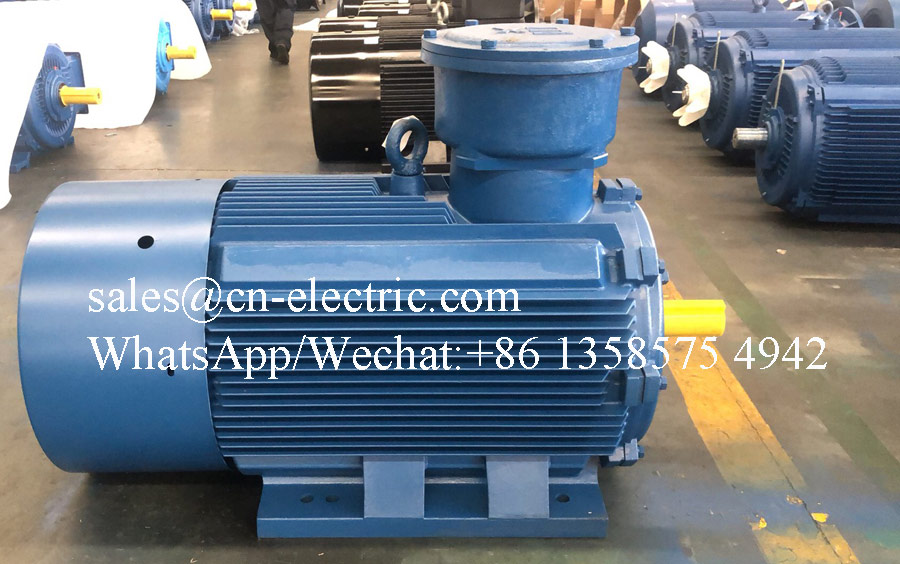

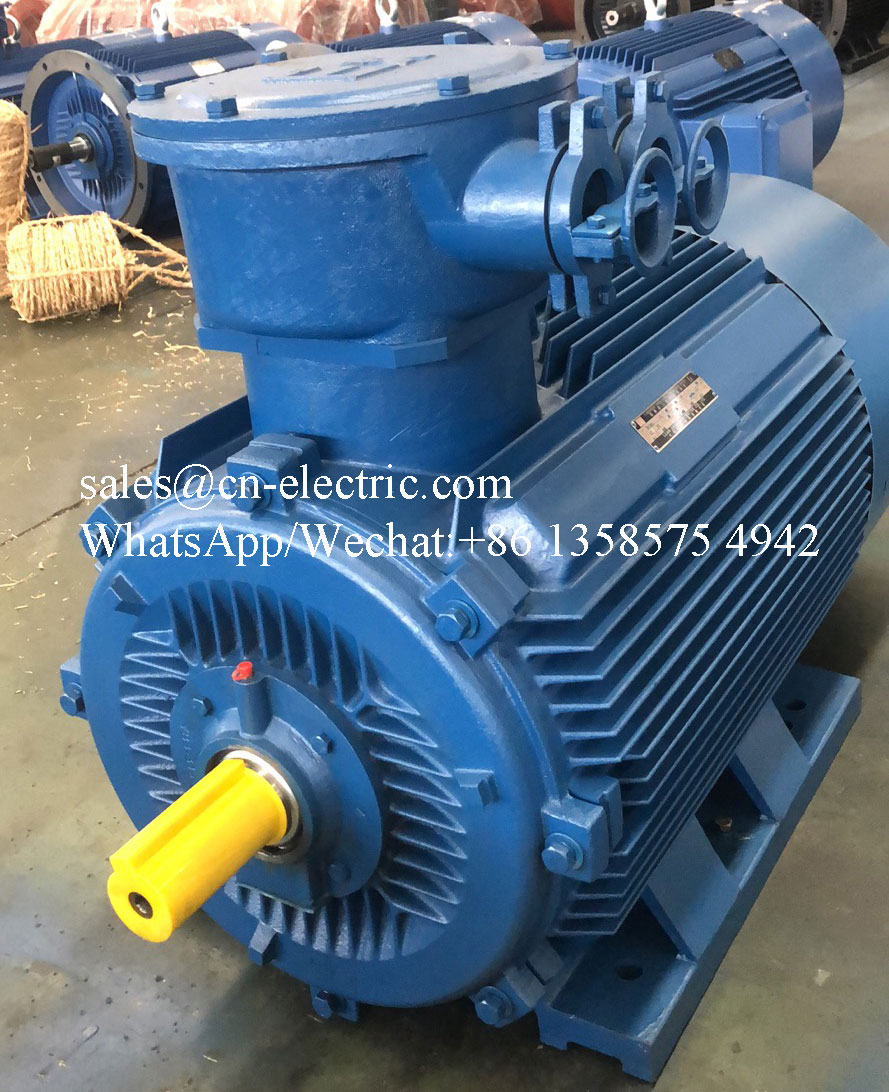

YB3-355L2-4 380/660 V 315 kW explosion proof three phase asynchronous motor

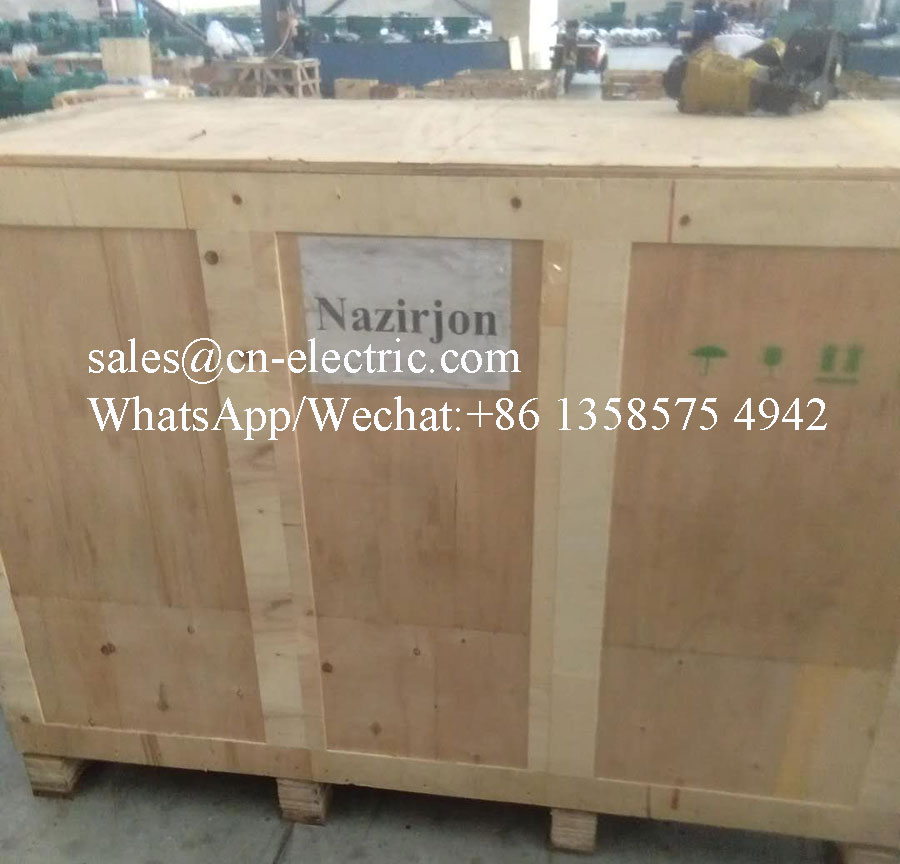

Package for YB3-355L2-4 380/660 V 315 kW explosion proof three phase asynchronous motor
