5 pcs VHS404TP-4-100S 100 HP 75 kW 380-440 V 60 Hz 1770 rpm IP23 WPI NEMA MG1 Vertical Hollow Shaft VHS Motors were shipped for PERU on July 15

Update time：15th,Jul,2020

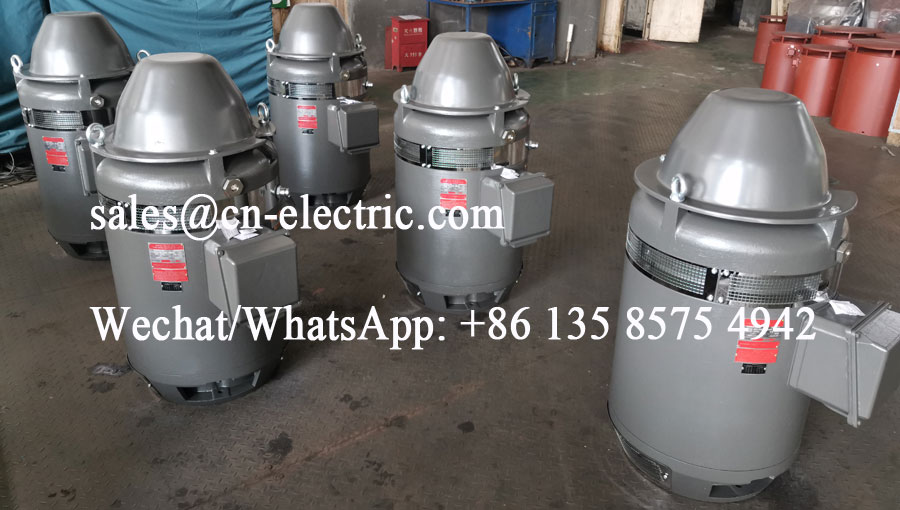

5 pcs VHS404TP-4-100S 100 HP 75 kW 380-440 V 60 Hz 4 poles 1770 rpm IP23 WPI NEMA MG1 standard Vertical Hollow Shaft VHS Motors were shipped for CALLAO, PERU on July 15th, 2020.

Main technical parameters:

Model: VHS404TP-4-100S              Rated power: 100 HP 75 kW             Rated voltage: 380-440 V

Connection: 4Y-2D                               Frequency: 60 Hz                                    Rated speed: 1770 r/min

Rated current:  139.5/120.8 A          Power factor: 0.87                                   Insulation class F

Protection rating: IP23 (WPI)           Duty rating: S1                                   Standard: MG 1

No. of poles: 4                                 Weight: 600 kgs

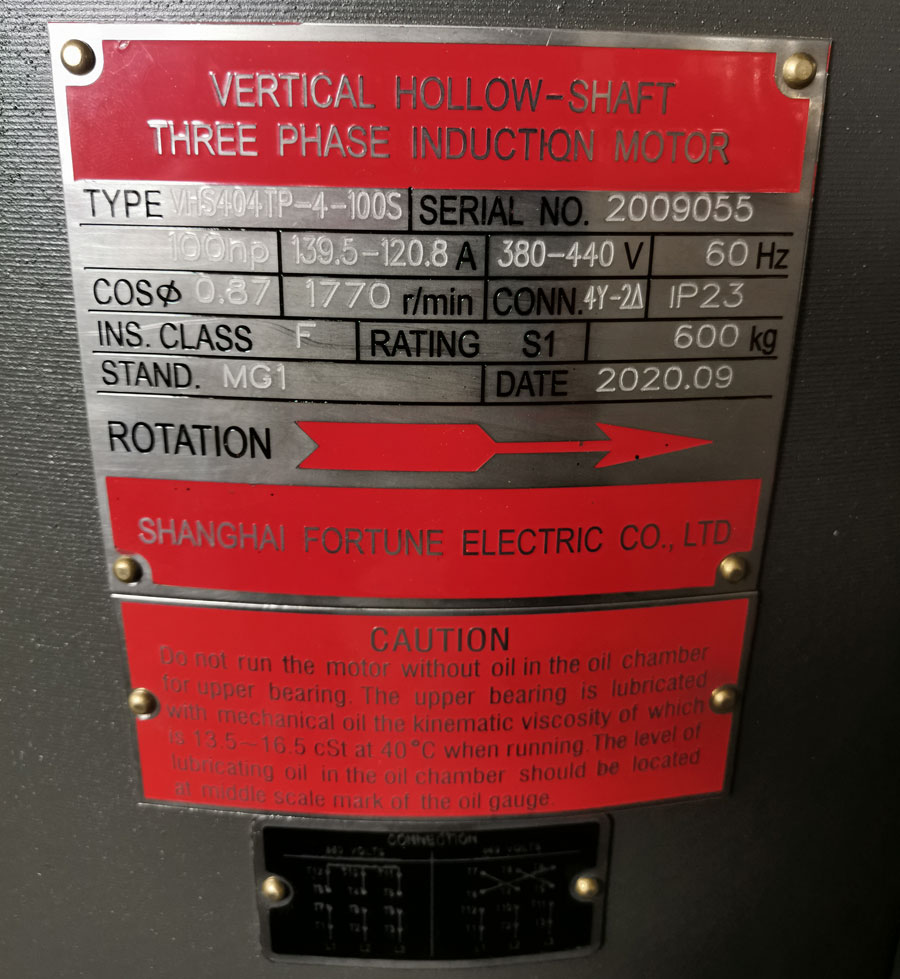

Nameplate for VHS404TP-4-100S 100 HP 75 kW Vertical Hollow Shaft Motor
