VHS280-1-4 150 HP 110 kW 380/660 V 50 Hz 4 poles 1480 rpm IP23 WP1 IEC standard Vertical Hollow Shaft Motors were shipped for Malaysia Oct. 7

Update time：07th,Oct,2020

2 pcs VHS280-1-4 150 HP 110 kW 380/660 V 50 Hz 4 poles 1480 rpm IP23 WP1 IEC standard Vertical Hollow Shaft VHS Motors were shipped for Port Kelang, Malaysia on Oct. 7th, 2020.

Main technical parameters:

Model: VHS280-1-4                     Rated power: 150 HP 110 kW           Rated voltage: 380/660 V

Connecton: delta/star                       Frequency: 50 Hz                                    Rated speed: 1480 r/min

Rated current:  202/116.6 A          Power factor: 0.88                                   Insulation class F

Protection rating: IP23 (WP1)       Duty rating: S1                                  Standard: IEC 60034-1

No. of poles: 4                              Weight: 840 kgs

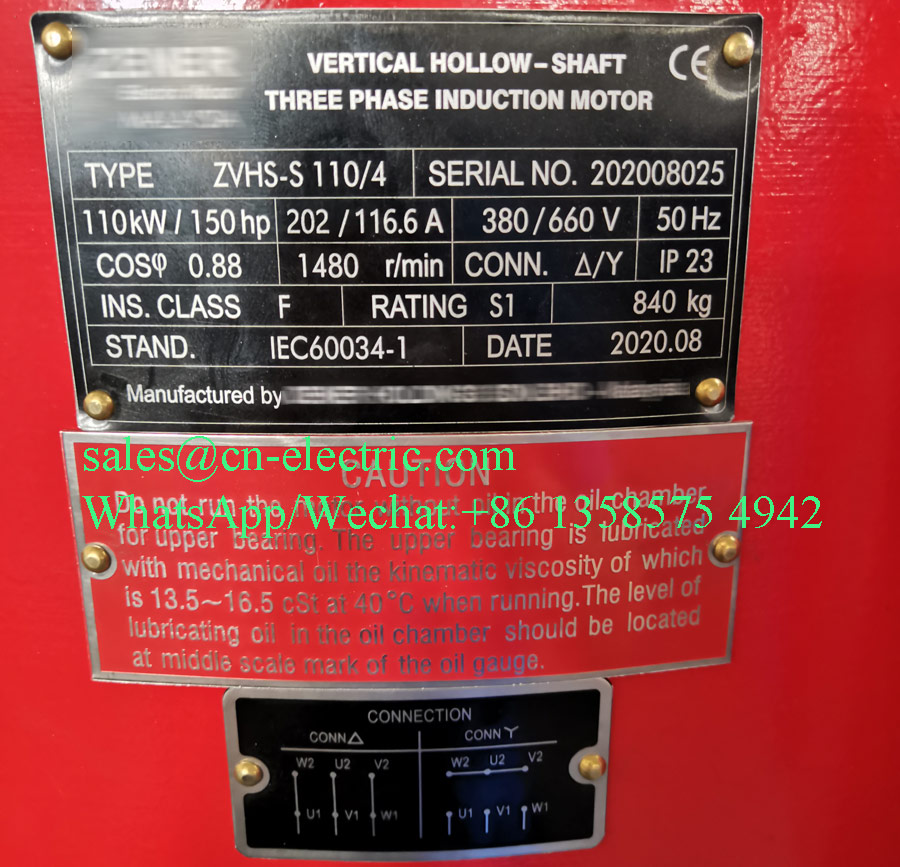

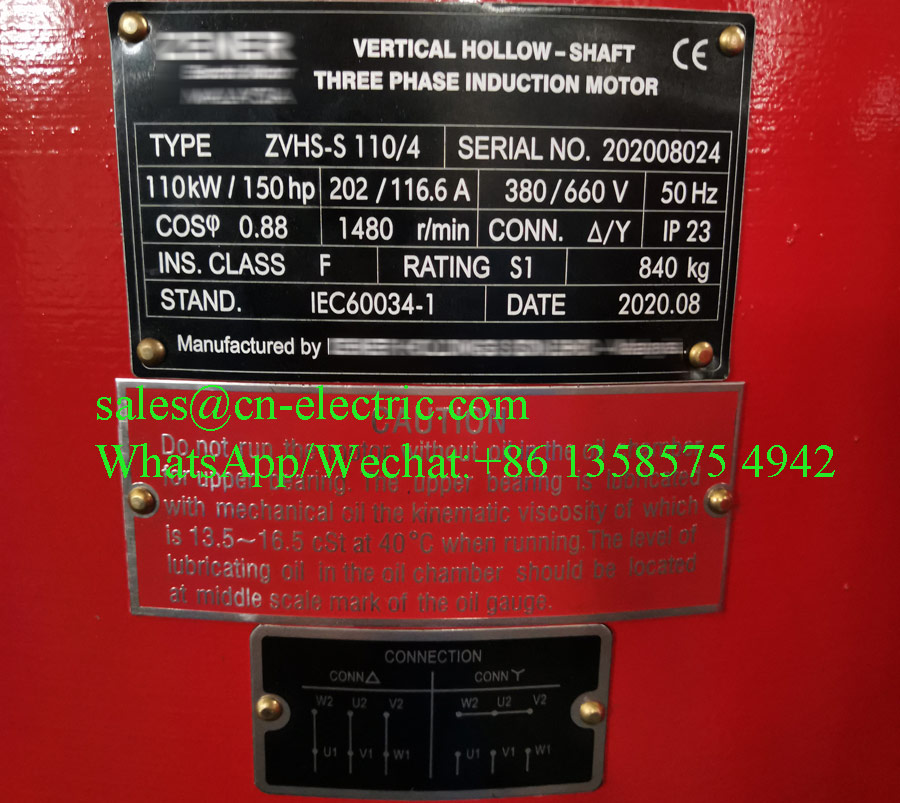

Nameplate for VHS280-1-4 150 HP 110 kW Vertical Hollow Shaft Motor

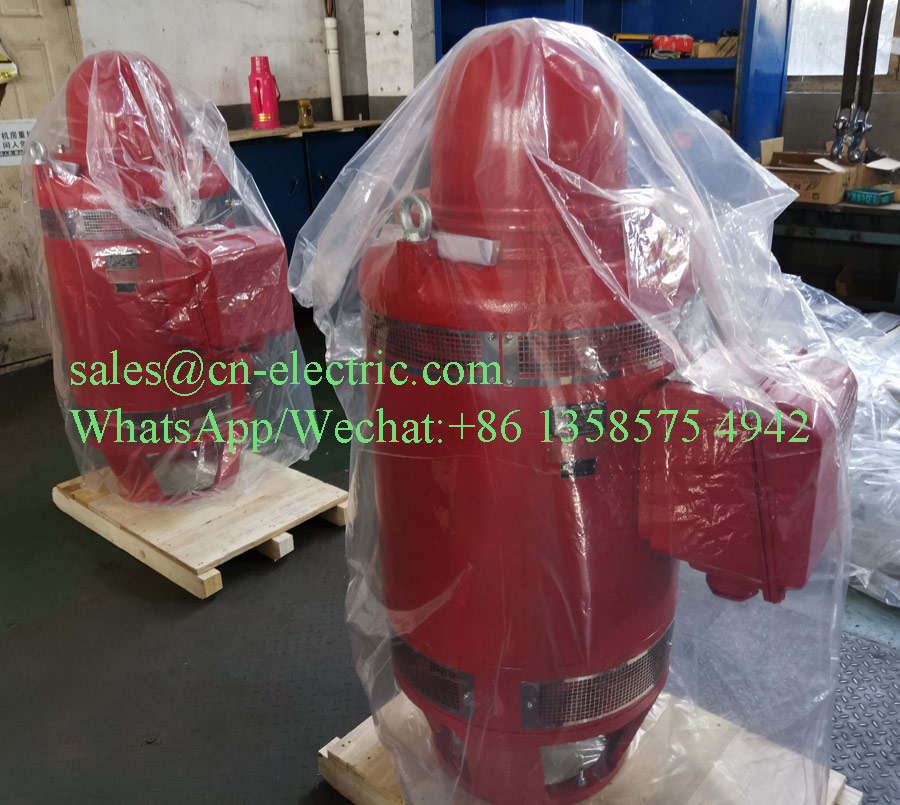

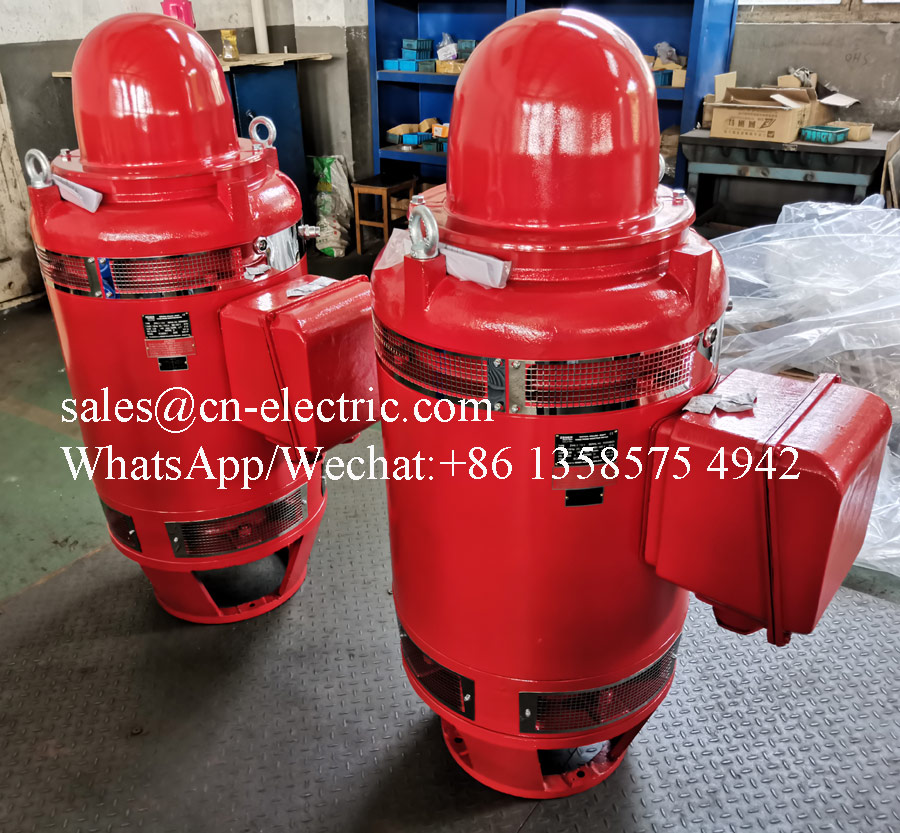

VHS280-1-4 150 HP 110 kW Vertical Hollow Shaft VHS Motor
