YR400-6 375kw Wound Rotor Slip Ring motor was shipped for Philippines Mar. 2015

Update time：19th,Mar,2015

YR400-6 375kw 500HP 440V 60Hz Wound Rotor Slip Ring Motor was shipped for Manila, Philippines on March 20, 2015

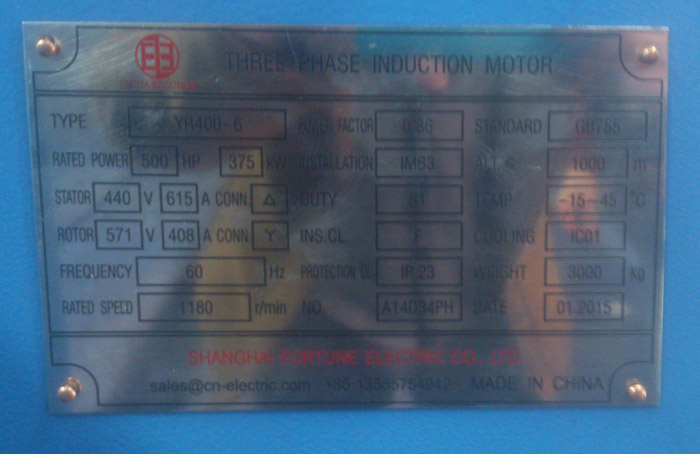

Technical parameters for this slip ring wound rotor motor:

Model: YR400-6                                  Rated power: 375 Kw / 500 HP                  Frequency: 60 Hz

Stator voltage: 440 VAC                     Stator current: 615 A                                   Connection: △

Rotor voltage: 571 VAC                      Rotor current: 408 A                                   Connection: Y

Rated speed: 1180 r/min                     Insulation class: F                                      Temperature rise B

Power factor: 0.86                               Duty: S1 continuous                                   Mounting: B3 (IM1001)

Cooling type: IC01                               Protection rating: IP23                               Bearing brand: SKF

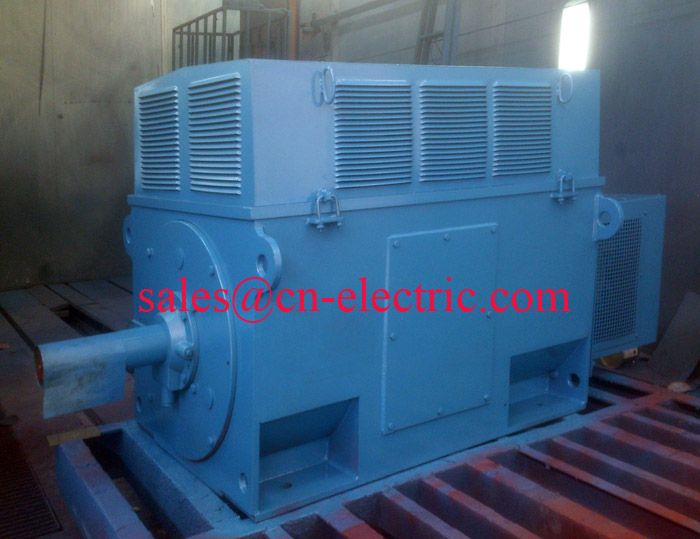

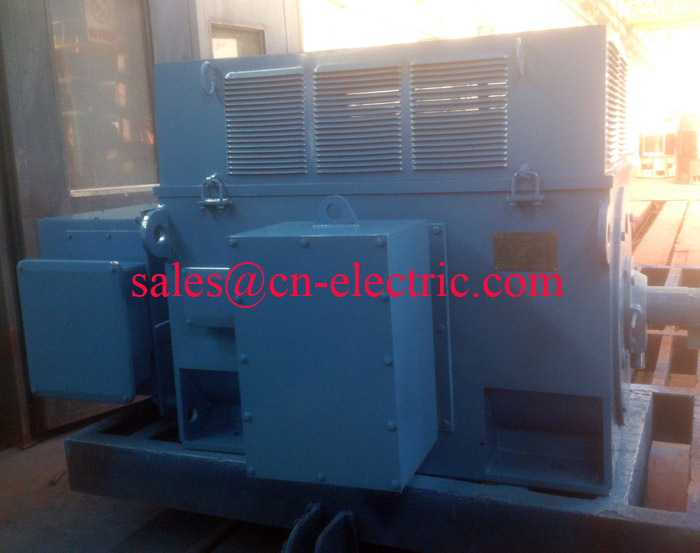

Pictures for YR400-6 500HP wound rotor slip ring motor
