350 kw 1700-2200 rpm DC Motor Z4-315-12 was shipped for Singapore on Jan 17,2015

Update time:16th,Jan,2015

1 set 350Kw DC Motor Z4-315-12 was shipped for Singapore on Jan. 17th, 2015

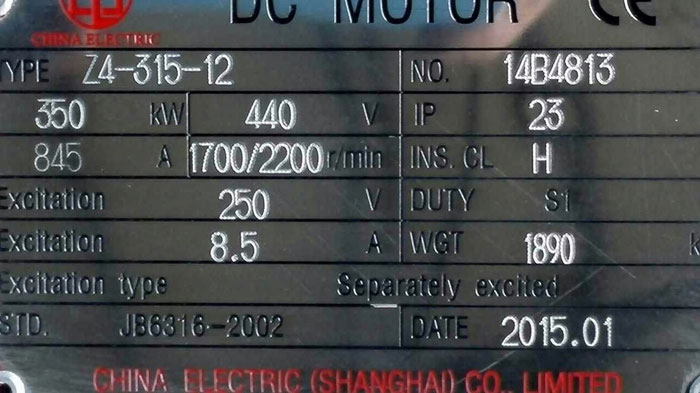

Some information about this DC motor is as below:

Model: Z4-315-12,                                         Rated Power: 350 Kw

Speed: 1700/2200 RPM,                                Armature voltage: 440 Vdc

Field Voltage: 250 Vdc                                   Cooling: IC06,with cooling fan & filter

Fan Power: 3phase,415 V,50 Hz,                    Protection: IP23,

Insulation class H, Temperature rise F            Mounting: B3 (foot mounted),

Duty: S1                                                        Ambient temp. 40oC,

Max. Altitude 1000 m                                     Windings & bearings with PT100 for thermal protection

NSK Bearing from Japan                               Encoder: TRD-J1000-RZ

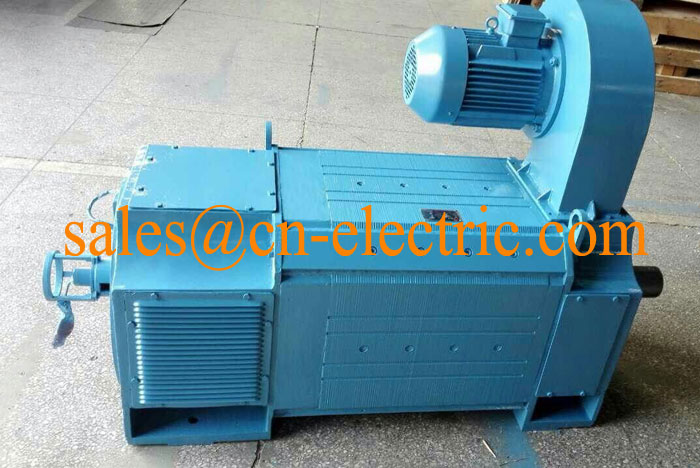

DC Motor Z4-315-12

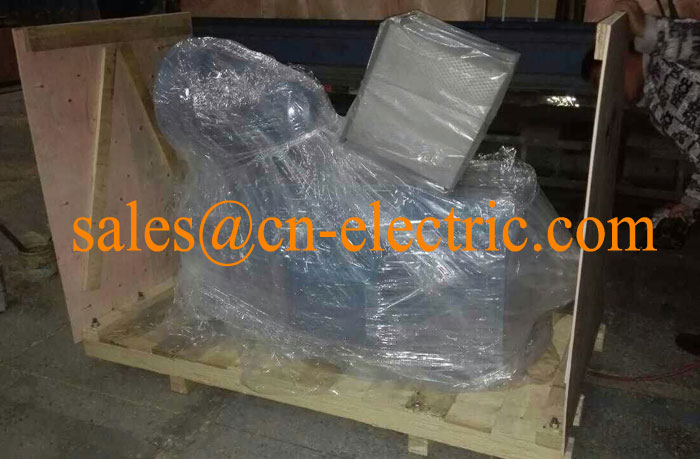

Packing
