Z4-112/4-2,13Kw,400V,2740/3600rpm DC Motor was shipped for Bangkok Aug 25,14

Update time：24th,Aug,2014

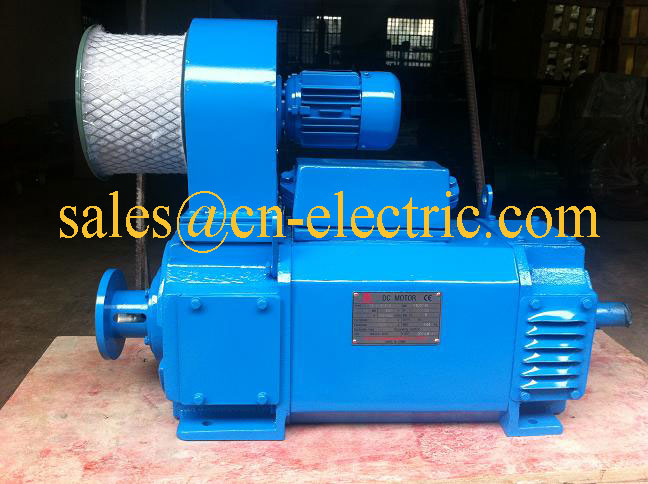

1pc of Z4-112/4-2, 13Kw, Armature voltage 400VDC, field voltage 220VDC, 2740/3600rpm DC Motor was shipped for Bangkok, Thailand on Aug. 25^th,2014

1. Insulation: class H, Temperature rise: F
2. Mounting Type: IMB3 (IM1001, Horizontal, foot mounted, without flange)
3. With PTC in all windings
4. With CE Certification
5. Prepare mounting for encoder feedback
6. Duty: S1
7. Protection rating: IP23

8. Cooling Method: IC06 (cooling by blower, with air inlet filter, mounted on top of Non-Driving End, power supply for blower:3phase/380V/50Hz)
9. Max. Ambient temperature 40^oC, Max. Altitude 1000m
10. Bearing: SKF from Sweden
11. Bearing type: rolling bearing
12. Overload capacity: 150% 60sec
13. Terminal box position: top of motor.
14. Rotation: Bi-direction
15. With Epoxy paint
16. Excitation type: separate excitation
17. Coupling type: Direct Coupling
18. Shaft extension: single cylindrical shaft extension
19. With space heater 220V
