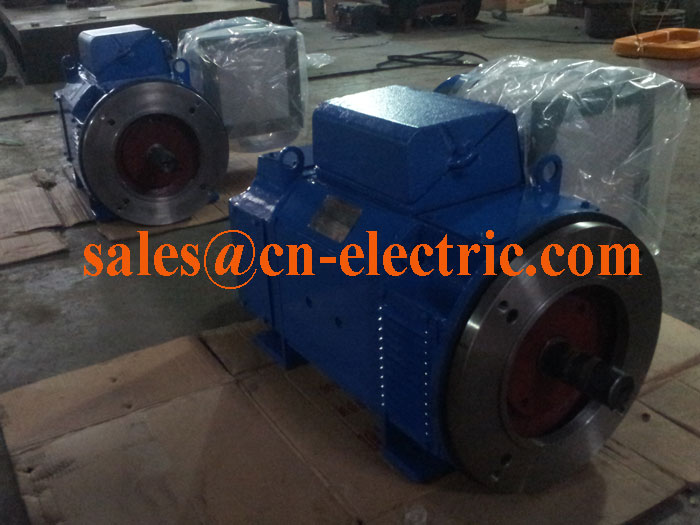

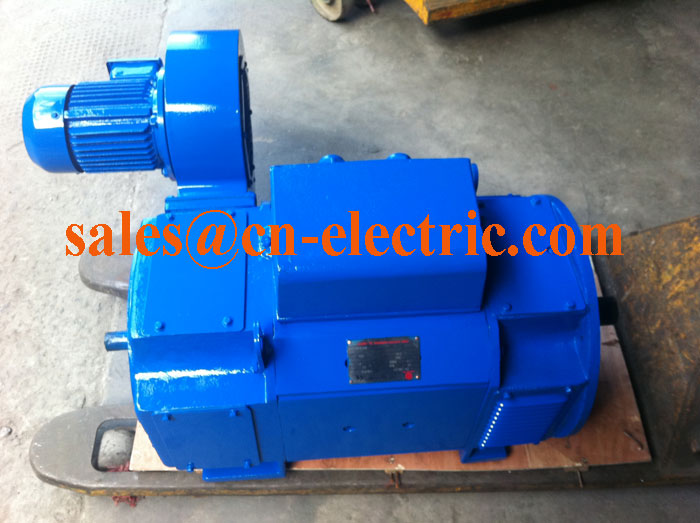

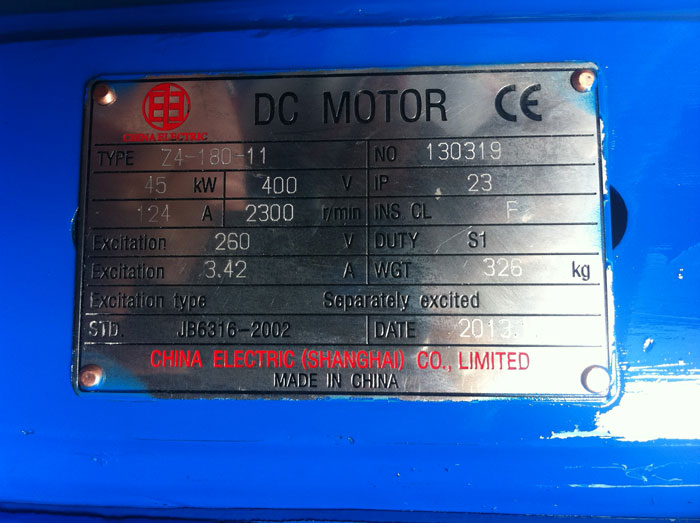

2pcs of 45kw, armature voltage 400VDC,Field voltage 260VDC, rated speed 2300rpm, DC Motor Z4-180-11 was shipped for PORT KELANG, Malaysia on Nov. 23, 2013

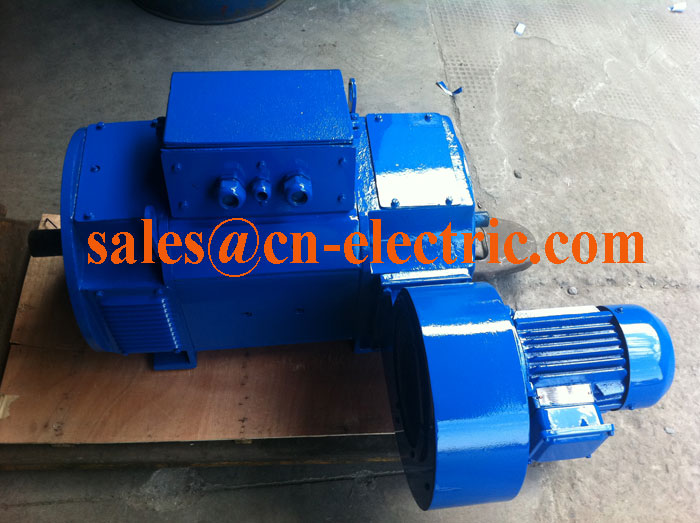

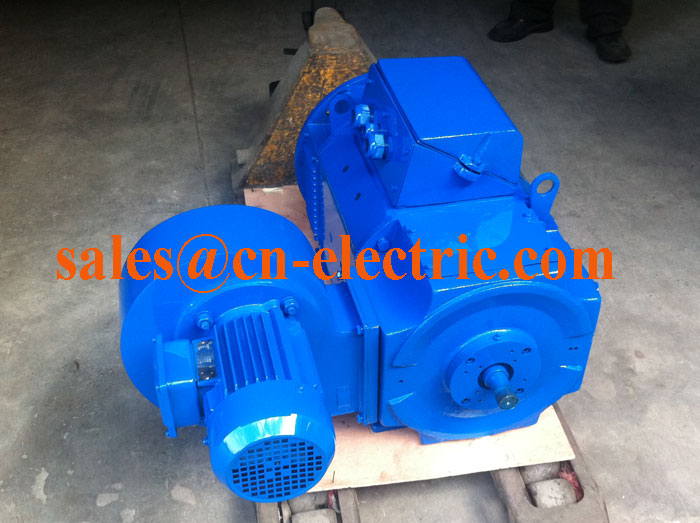

Cooling: IC06 (cooling by blower, with filter, power 3phase/415V/50Hz, blower mounted on right hand side of non-driving end seeing from driving end),

NSK bearing,

Insulation Class: F

with thermal protection for winding,

Mounting:IMB35 (horizontal,both flange & feet mounted),

IP23

flange mounted with 250mm PCD

48mm shaft diameter

Terminal box: top motor
