Update time：12th,Dec,2012

21PCS of Z4 series DC Motors for steel rolling were shipped for Bangkok-Thailand on DEC 13,2012

1. Z4-450-32 500KW, 500/1000RPM, Armature voltage:700VDC, FOR ROLLING MILL STAND: 4PCS

2. Z4-450-32 650KW, 750/1300RPM, Armature voltage:700VDC, FOR ROLLING MILL STAND: 6PCS

3. Z4-315-42 400KW, 1000/1500RPM, Armature voltage:700VDC, FOR ROLLING MILL STAND: 3PCS

4. Z4-355-42 600KW, 1000/1500RPM, Armature voltage:700VDC, FOR ROLLING MILL STAND: 3PCS

5. Z4-315-11 150KW, 600/1200RPM, Armature voltage:400VDC, FOR COOLING BED: 1PC

6. ZFQZ-315-11 150KW, 600/1200RPM, Armature voltage:400VDC, FOR FLYING SHEAR: 1PC

7. Z4-180-31 37KW, 1000/1500RPM, Armature voltage:400VDC, FOR PINCH ROLL: 3PCS

General Technical Specifications:

1. Insulation: class H, Temperature rise: F

2. Mounting Type: IMB3 ( IM1001 )

3. Winding with 4pcs PT100 for each motor. Each bearing with 1pc of PT100

4. With CE Certification

5. P+F encoder, model: RHI90N-OHAAAR61N-1024

6. Duty: S1

7. Protection rating: IP23

8. Cooling Method: IC06 (cooling by blower, with filter, power supply 380V/50Hz/3phase)

9. Max. Ambient temperature 40oC, Max. Altitude 1000m

10. Bearing: SKF Brand

11. With space heater (exclude Z4-180-31), power supply 220V/50Hz/single phase.

12. Terminal box: at right side see from the driving end

13. Overload capacity is 150% 60 sec.

14. Field Voltage of each motor: 310VDC

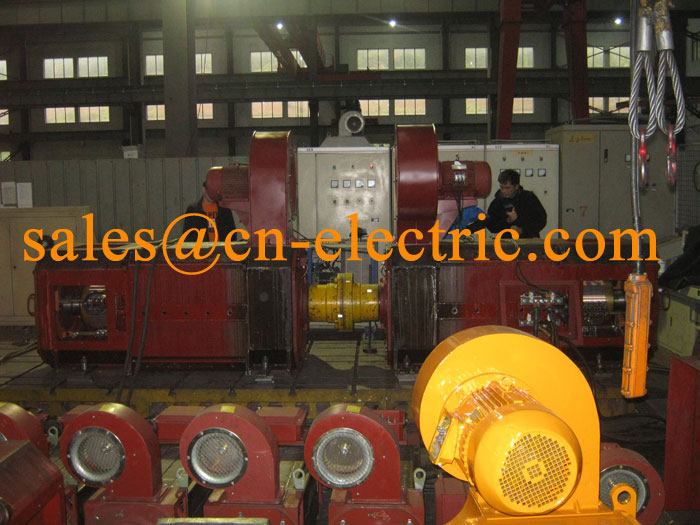

DC Motors in testing (before painting)

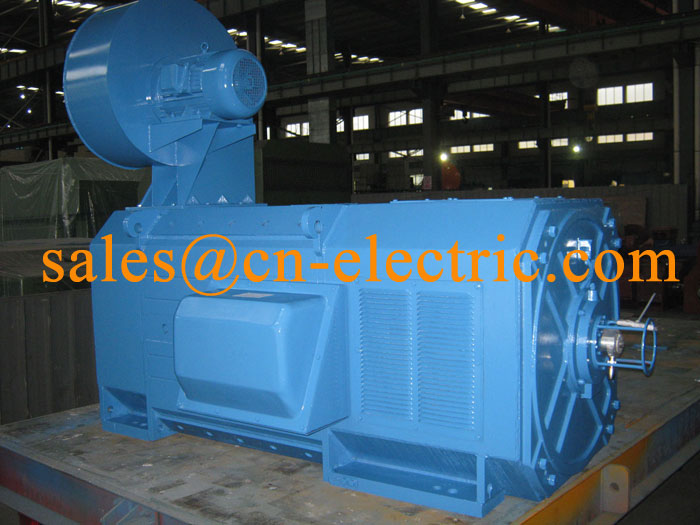

DC Motor Z4-450 (after painting)

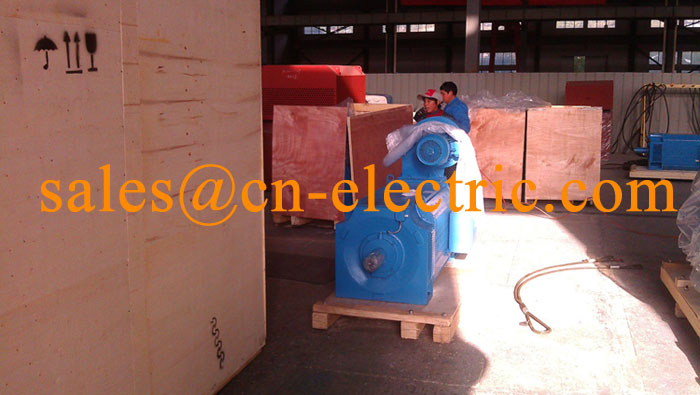

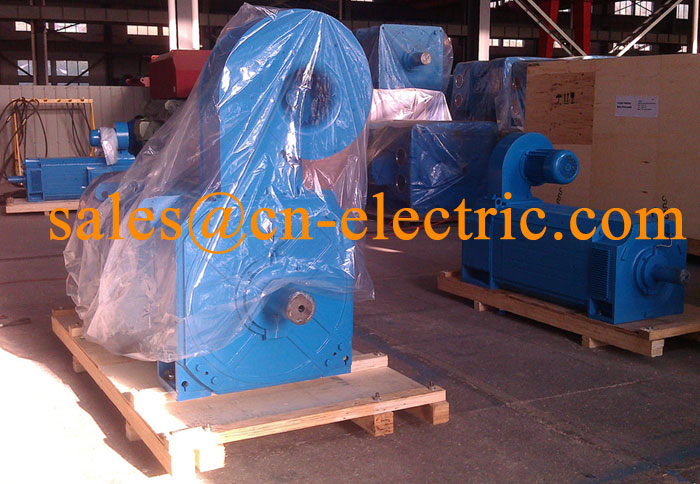

DC Motors during packing

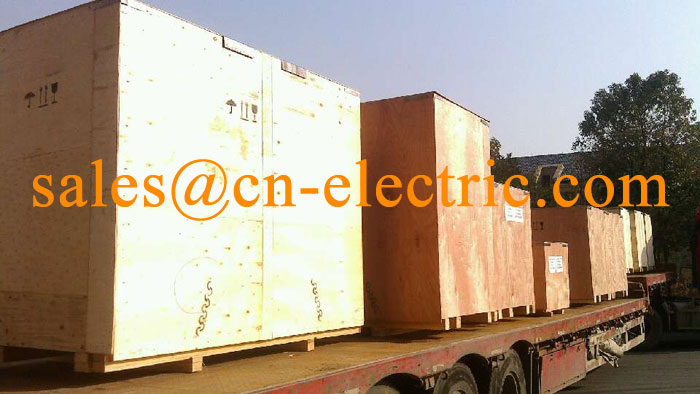

DC Motors left factory

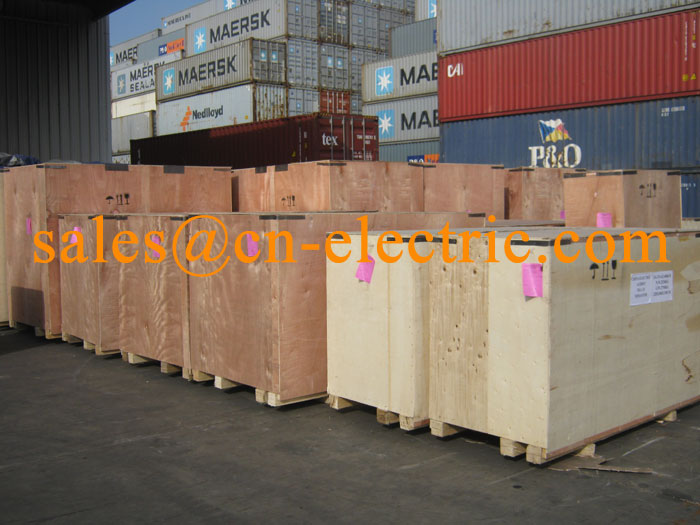

DC Motors in seaport warehose

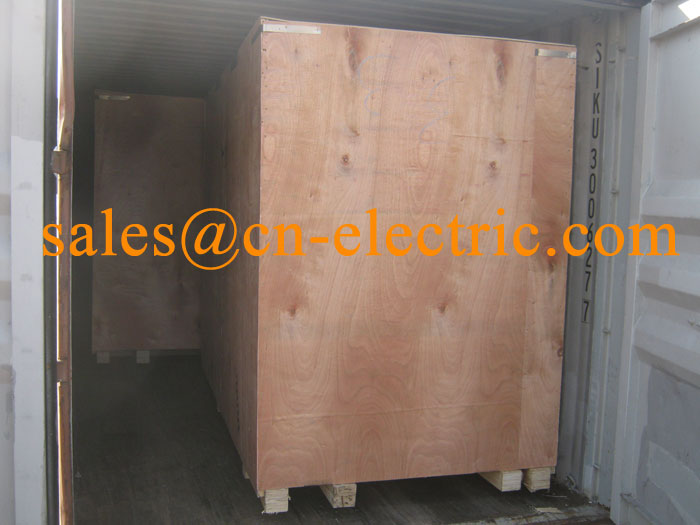

10pcs of DC Motors Z4-450 in 5pcs of 20GP containers (2ps each container)

11pcs of DC Motors in 40HQ containers

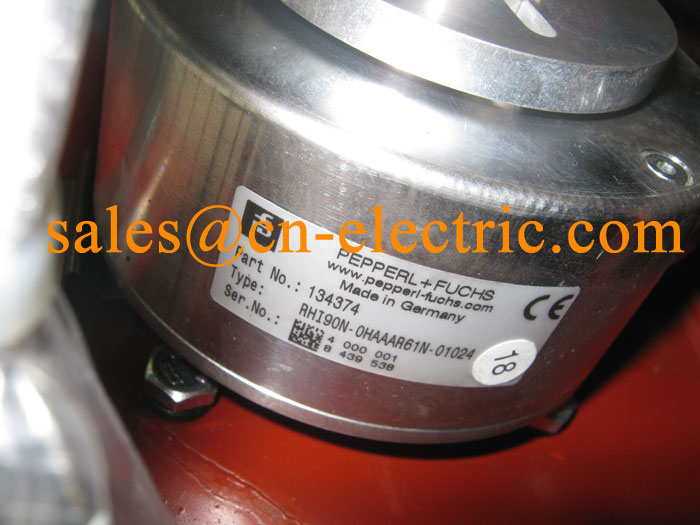

P+F encoder (model RHI90N-OHAAAR61N-01024)
