400Kw,ZYZJ-400-42 DC Motor with Parker DC Driver shipped for Vietnam Oct 27,2012

Update time：26th,Oct,2012

1pc 400kw ZYZJ series sugarcane mill type DC Motor ZYZJ-400-42 with matched 400Kw 2000A Parker brand DC Driver was shipped for Hochiminh-Vietnam on Oct 27th, 2012.

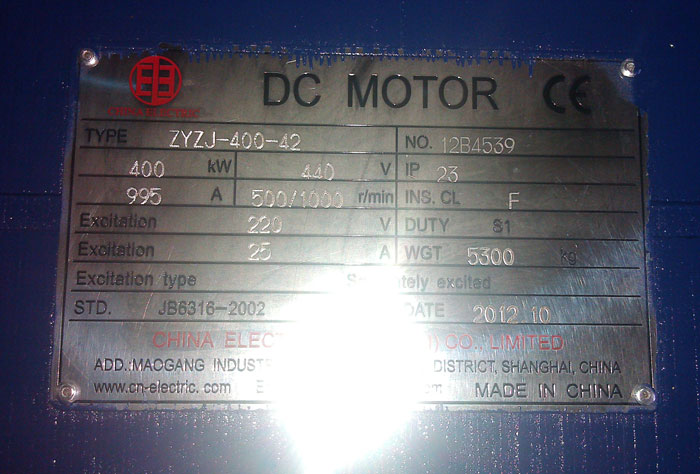

Information for the  ZYZJ series sugarcane mill  DC Motor:

Model: ZYZJ-400-42                   Rated power: 400Kw                Power source: 380VAC/50Hz/3phase

Armature voltage: 440VDC         Field voltage: 220VDC             Speed: 500/1000 RPM

Cooling method: IC06                Protection rating: IP23             Duty: S1

Insulation class: F                      Mounting: IM B3                       With KOYO encoder: TRD-J1000-RZ

With NSK rolling bearing            With PT100                               Application: sugarcane mill

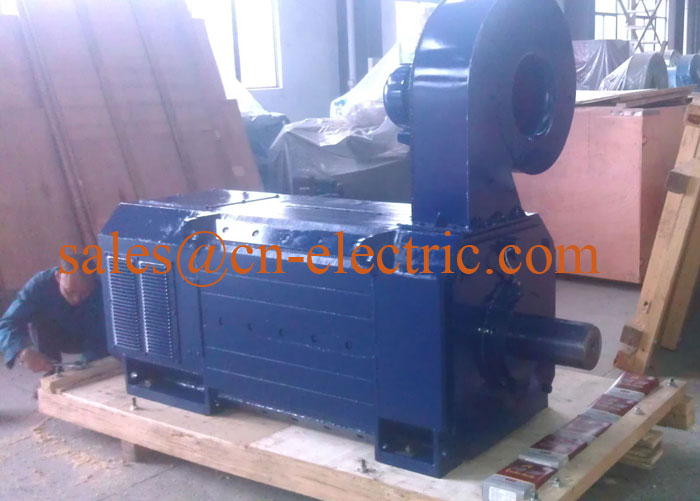

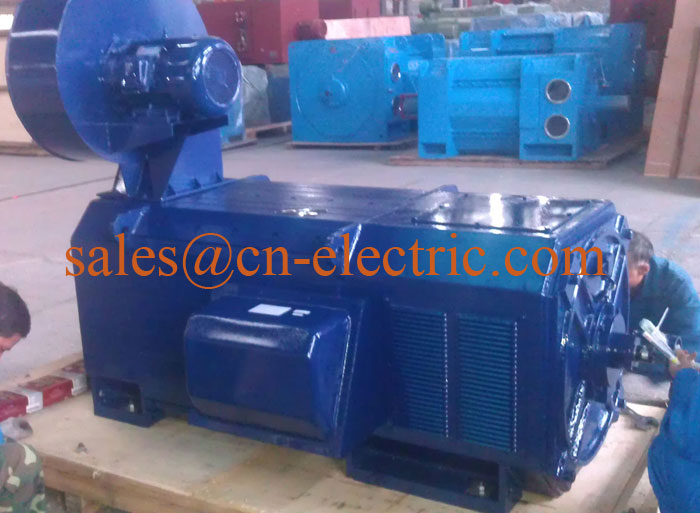

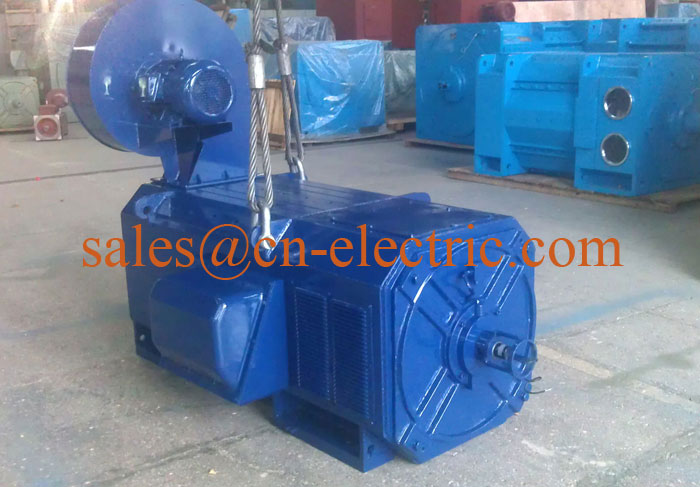

DC Motor

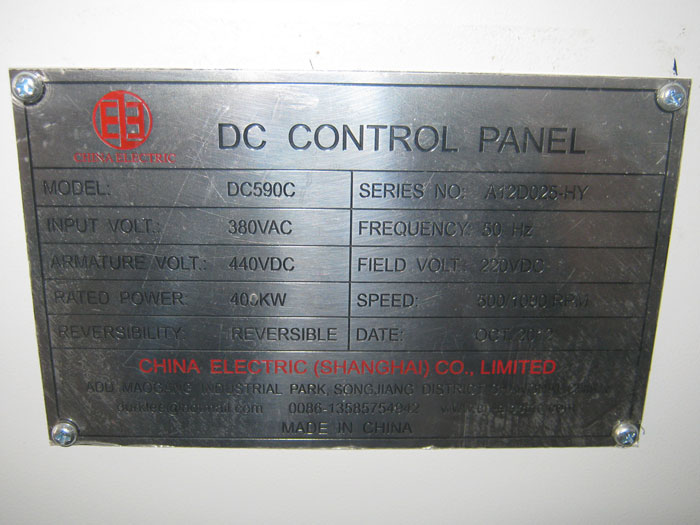

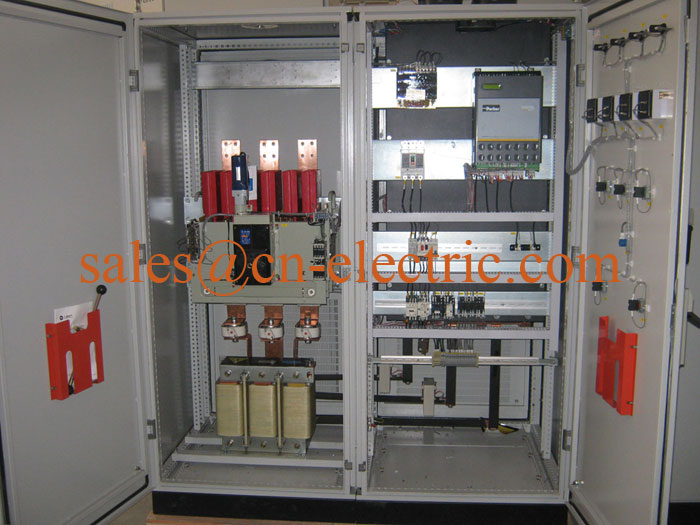

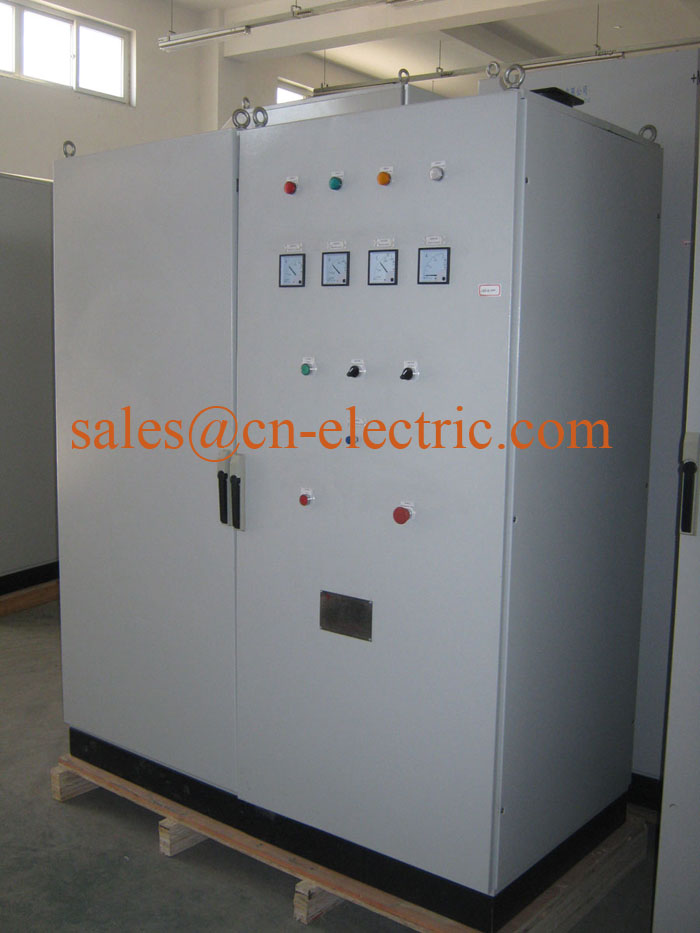

Parker DC Driver Cabinet, 2000A
