1PC 375KW DC MOTOR Model Z4-315-12 was shipped for Haiphong-Vietnam on Oct 1st, 2011

Some Information for this motor is as below:

Model: Z4-315-12, Rated Power:375Kw, Speed:1879/2500RPM
Armature Voltage: 460V, Field Voltage: 300V
Cooling: IC06, Protection: IP23, Insulation class H
Mounting: IM B3 (foot mounted)
Max. Ambient temperature 40oC, Max. Altitude 1000m
Terminal box: right side see from the driving end

375Kw DC Motor Z4-315-12

KOYO Encoder

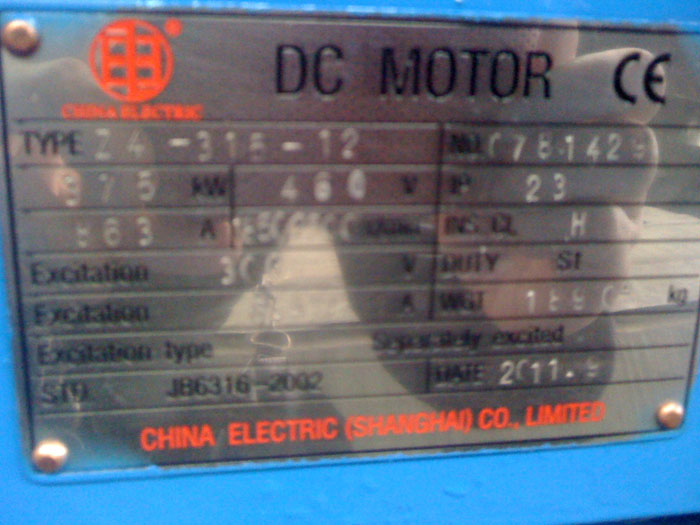

Nameplate
