6PCS 500 kw 670 HP 750/1500 rpm heavy duty steel rolling mill dc motors were shipped for Egypt 5.22.17

Update time:22th,May,2017

6 PCS Z4-400-32 500 kw 670 HP 750/1500 rpm heavy duty steel rolling mill drive dc motors were shipped for Alexandria Egypt on May 22nd, 2017.

All these motors are for steel rolling mill.

Main parameters for 500 kW 750/1500 rpm DC Motors:
Model: Z4-400-32                               Rated power: 500 kW 670 HP                          Armature voltage: 440 VDC
Armature current: 1220 A                   Speed: 750/1500 r/min                                    Field voltage: 220 VDC
Field current: 25.5 A                            Enclosure protection: IP23                              Insulation class: F
Duty: S1 continuous                            Mounting: B3 horizontal feet mounted           Cooling: IC06 blower cooled
Bearing brand: SKF
Thermal protection: windings with NTC thermistor, bearing with PT100

Speed feedback: DC tachogenerator, 60 V/1000 rpm, type ZYS-14A 12 W 120 VDC 100 mA, 0~2000 rpm

 Z4-400-32 500 kW 750/1500 rpm dc motors


2 pcs Z4-400-32 500 kW 750/1500 rpm dc motors in test

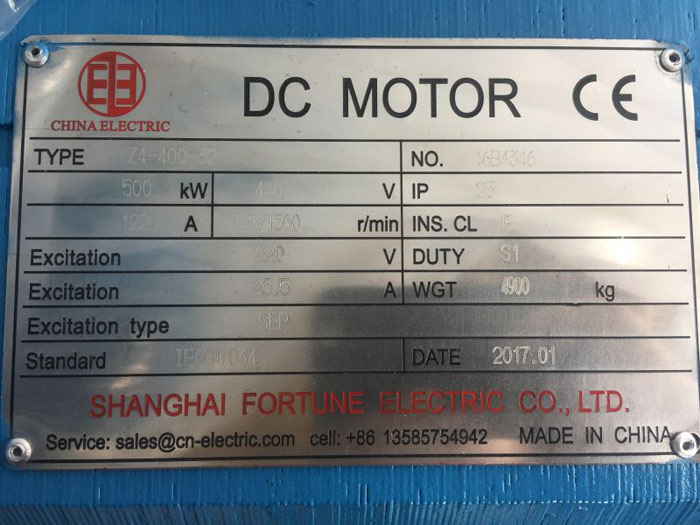

Z4-400-32 500kW 750/1500rpm dc motor, no 16B4346

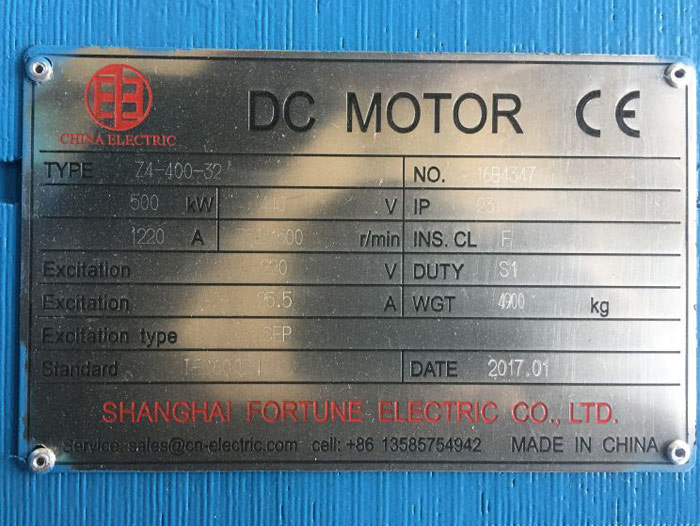

Z4-400-32 500kW 750/1500rpm dc motor, no 16B4347

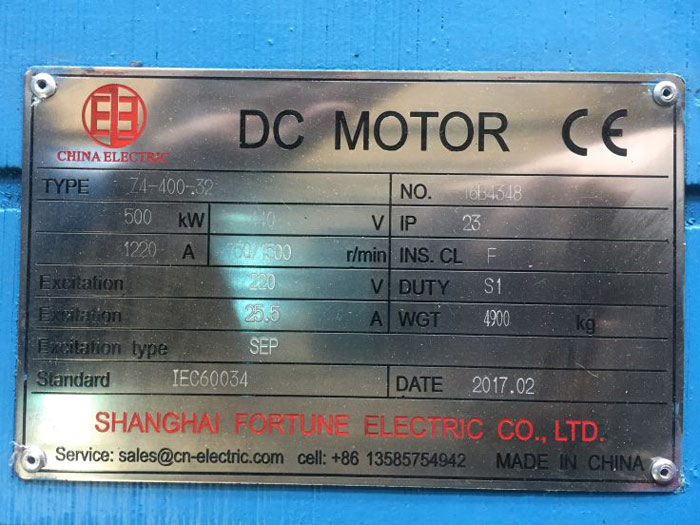

Z4-400-32 500kW 750/1500rpm dc motor, no 16B4348

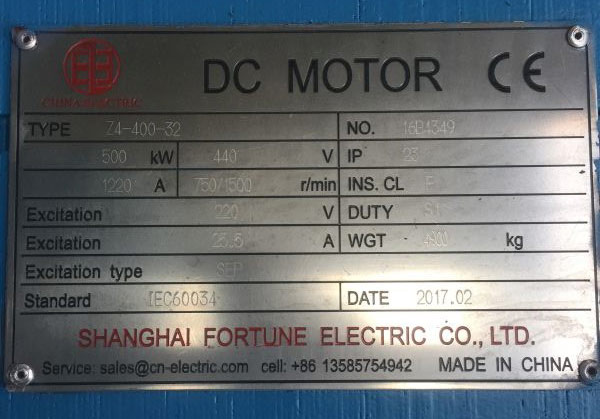

Z4-400-32 500kW 750/1500rpm dc motor, no 16B4349

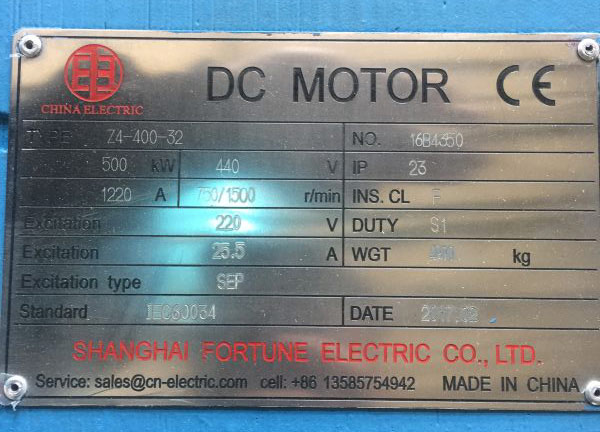

Z4-400-32 500kW 750/1500rpm dc motor, no 16B4350

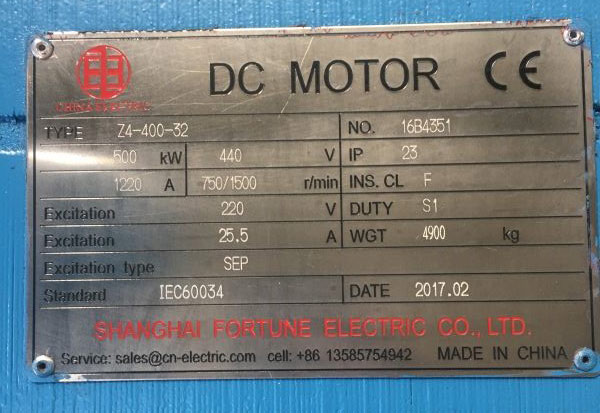

Z4-400-32 500kW 750/1500rpm dc motor, no 16B4351

3 pcs Z4-400-32 500kW 750/1500rpm dc motors & 1 pc YRKK630-8 1500 kW 750 rpm slip ring motor in truck

6 pcs Z4-400-32 500kW 750/1500rpm dc motors & 1 pc YRKK630-8 1500 kW 750 rpm slip ring motor in container
