300 kg 200 kw Iron Steel Melting Medium Frequency Induction Furnace was shipped for Nigeria Apr.11,2017

Update time:10th,Apr,2017

300 kg iron/ steel melting, 200 kw Coreless Medium Frequency Induction Furnace was shipped for Tincan Island, Nigeria on April 11th, 2017.

Main techncial parameters:

Furnace model: GW-0.3-200/1JJ                          Rated capacity: 300 kg

Furnace body quantity:2 pcs                               Power system model: KGPS-200-1S

Rated power: 200 Kw                                         Working frequency: 1000 Hz

Power input: 415 V 50 Hz 3 phase                       Furnace enclosure: cast aluminum

Tilting type: electromechanical tilting (tilt by electric motor & gear box)

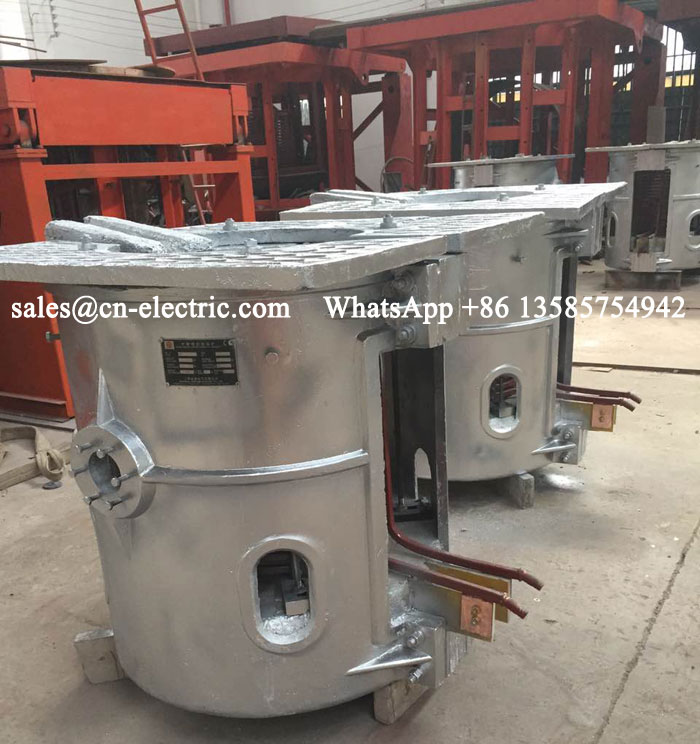

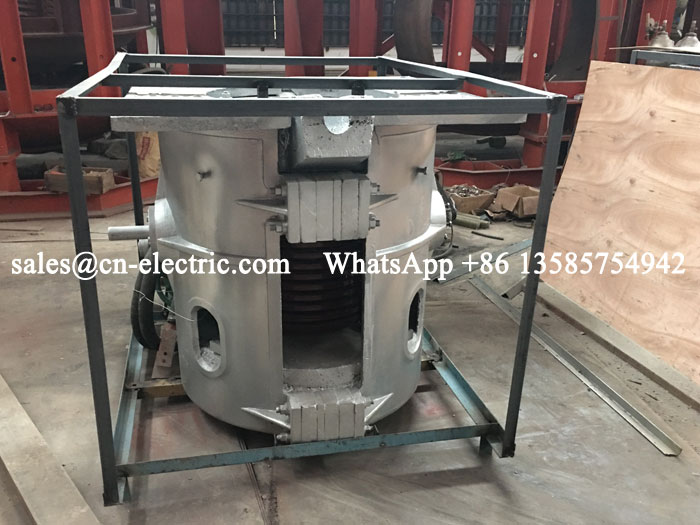

300 kg induction melting furnace body

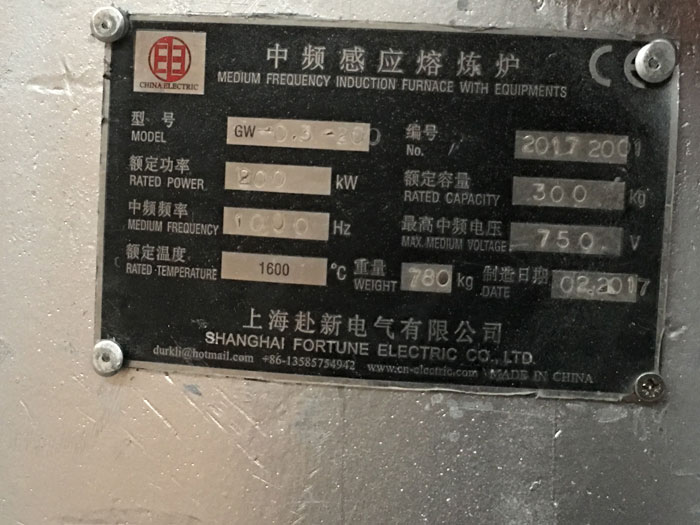

Nameplate for 300 kg induction melting furnace body

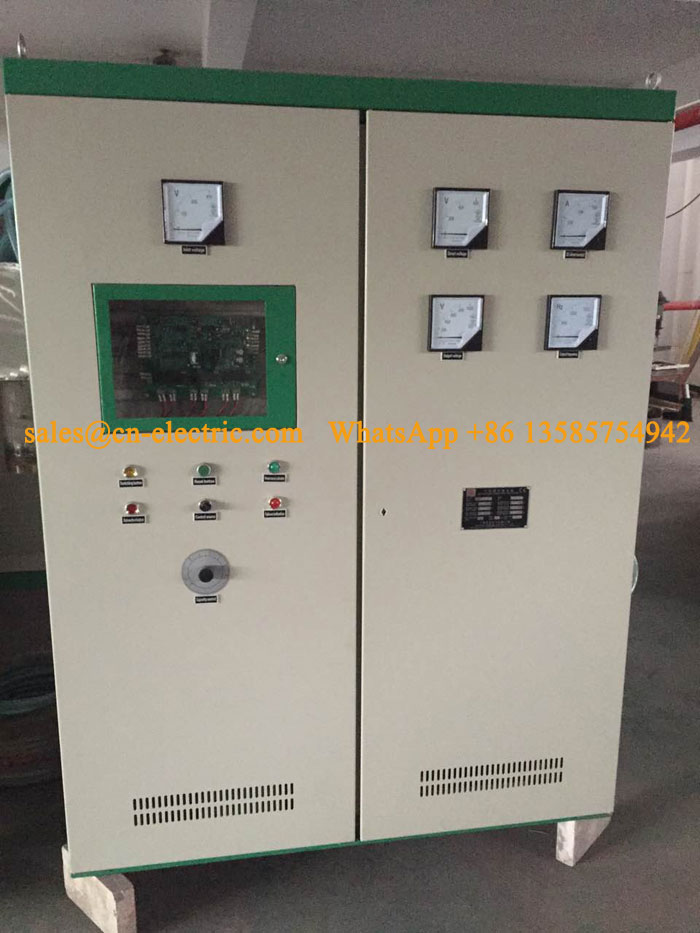

200 kW 1000 Hz medium frequency power supply cabinet

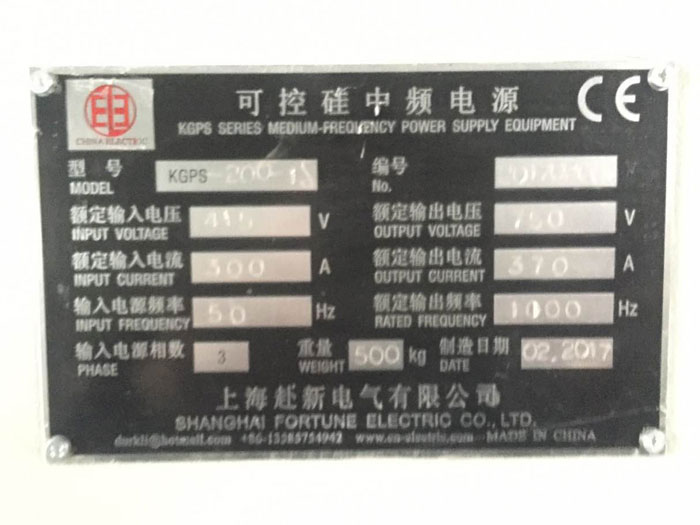

Nameplate for 200 kW 1000 Hz medium frequency power supply cabinet

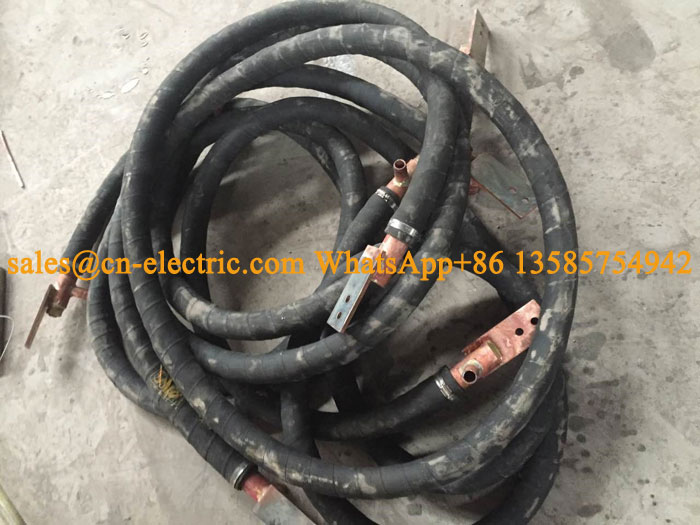

Water Cooling Cables


300 kg 200 kw induction melting furnace in container
