200 kw 415 V YVF2-355M3-6 IP55 Low Voltage Variable Frequency Inverter Drive Motors With CARLEN 1024 ppr Encoders were shipped for Pakistan Sep. 19

Update time：19th,Sep,2020

2 PCS 200 kw 415 V 50 Hz YVF2-355M3-6 IP55 3 Phase Low Voltage Variable Frequency Inverter Drive Motors With Germany CARLEN 1024 ppr Encoders were shipped for Karachi, Pakistan on September 19th, 2020.
The motor flange, shaft, cooling method are specially designed as customer's requirements.

Main Parameters:
Type: YVF2-355M3-6                                             Output: 200 kW 270 HP                      Voltage: 415 V
Base frequency: 50 Hz                                            Energy level: IE2                                 Current: 336.5 A
Power factor: 0.86                                                   Protection rating: IP55                      Altitude: 1000 m
Insulation class F                                                    Base speed: 990 r/min                      Cooling: IC416
Connection: delta                                                    Duty: S1 continuous                           Ambient temperature: 40^oC
Mounting: V1 IM3011 vertical flange mounted    Bearing brand: SKF

With encoder, world famous "CARLEN" brand from Germany, type: CC1500-4T14-65-1024-26-S002, 1024 ppr, 5~30 VDC, HTL

Windings with PTCs for thermal protection

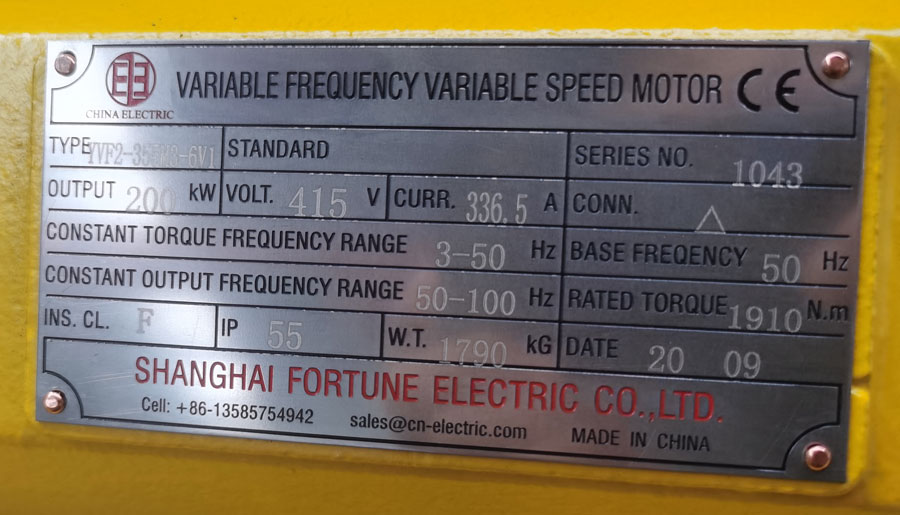

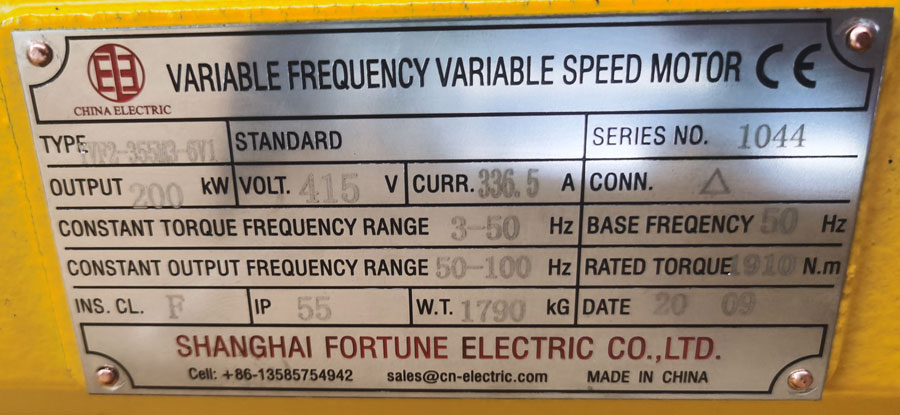

Nameplates 200 kw 415 V YVF2-355M3-6 IP55 3 Phase Low Voltage Variable Frequency Inverter Drive Motor

200 kw 415 V YVF2-355M3-6 IP55 3 Phase Low Voltage Variable Frequency Inverter Drive Motors

Encoder, "CARLEN" brand from Germany, type CC1500-4T14-65-1024-26-S002 1024 ppr 5~30 VDC HTL

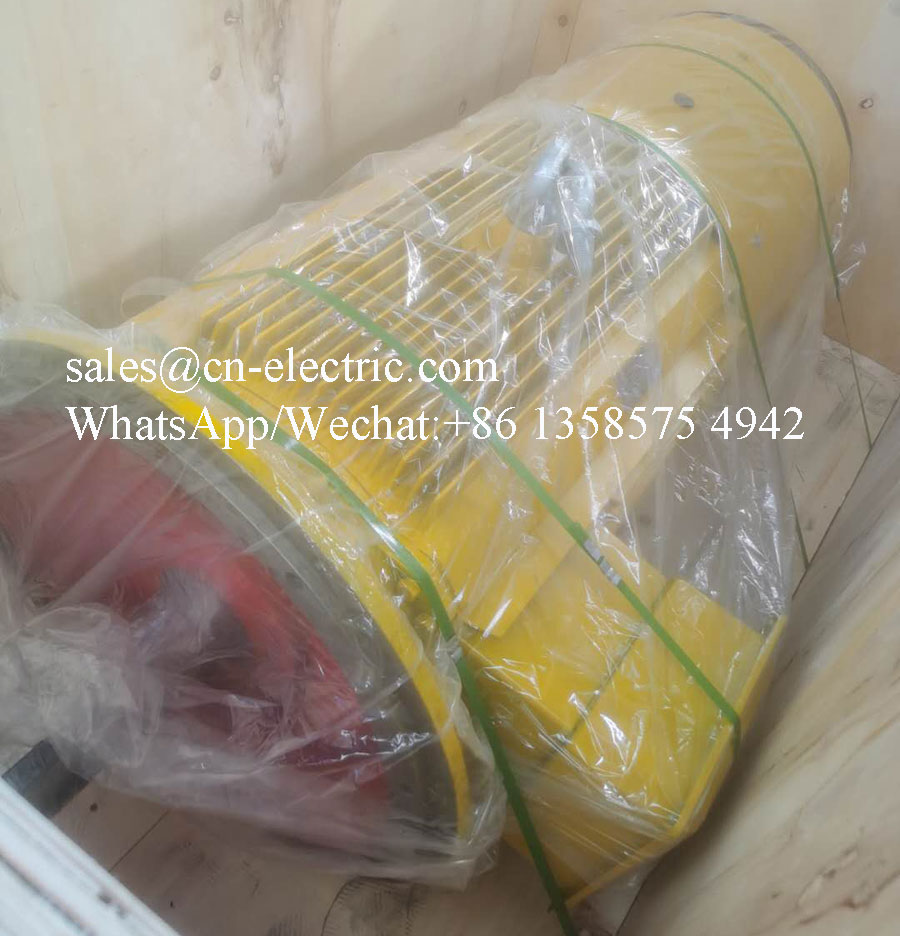

Package for YVF2-355M3-6 IP55 3 Phase Low Voltage Variable Frequency Inverter Drive Motors
