2pcs 1000 KW YRKK560-6 390 V IC611 steel rolling mill slip ring motors were shipped for Pakistan Apr.7

Update time：07th,Apr,2016

2 pcs 1000 KW 390 V YRKK560-6 steel rolling mill driving YRKK series wound rotor slip ring motors were shipped for Karachi, Pakistan on April 7th, 2016.

Main data of these two 1000 Kw slip ring motors:

Rated power: 1000 kw,                                  Cooling: IC611 TEAAC                               Protection: IP54

Stator voltage: 390 VAC                                Stator current: 1735 A                                Connection: delta

Rotor voltage: 1275 VAC                               Rotor current: 483 A                                   Connection: star

Frequency: 50 Hz                                          Duty: S1                                                     Insulation class: F

Rated speed: 991 r/min                                 Power factor: 0.9                                        Mounting: IMB3

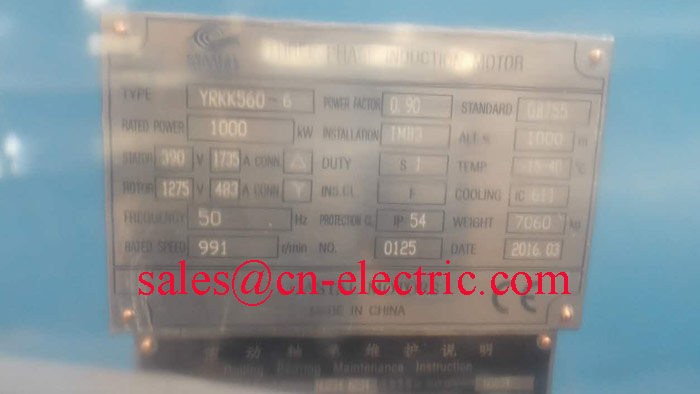

Nameplate of YRKK560-6 1000 kw wound rotor slip ring motor

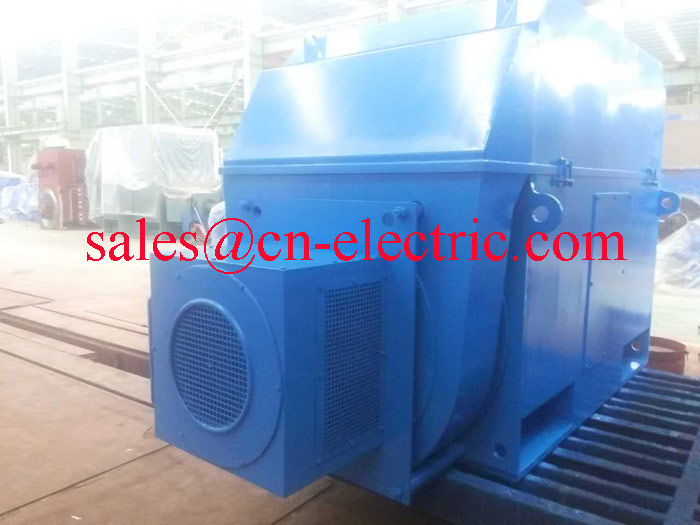

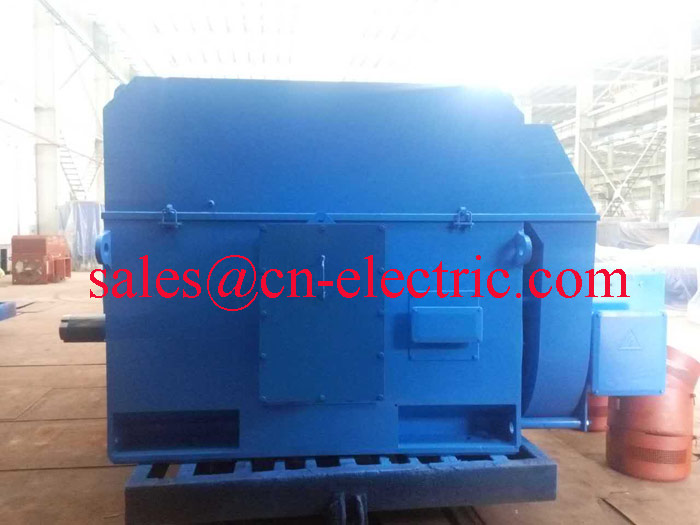

YRKK560-6 1000 kw wound rotor slip ring motor

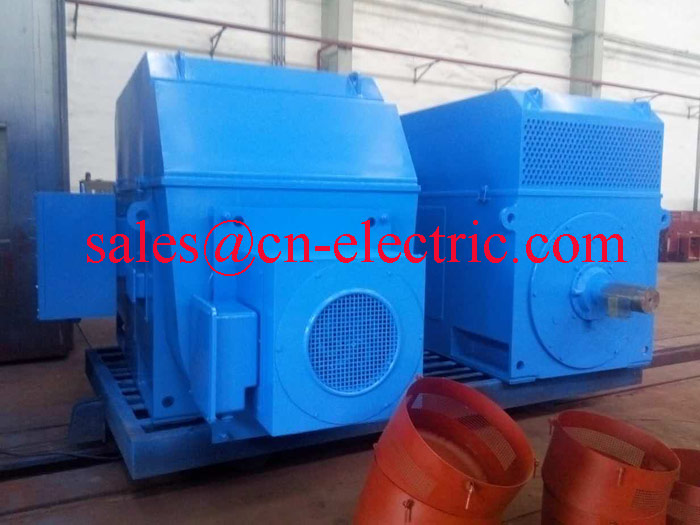

2 pcs YRKK560-6 1000 kw wound rotor slip ring motors

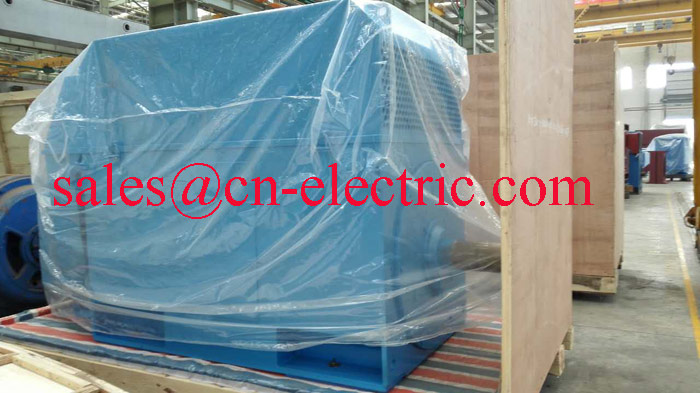

YRKK560-6 1000 kw wound rotor slip ring motors during packing

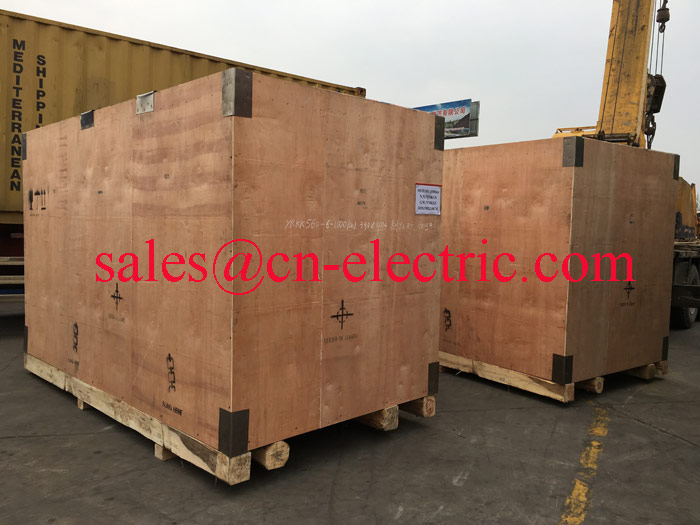

2 pcs YRKK560-6 wound rotor slip ring motors in container yard

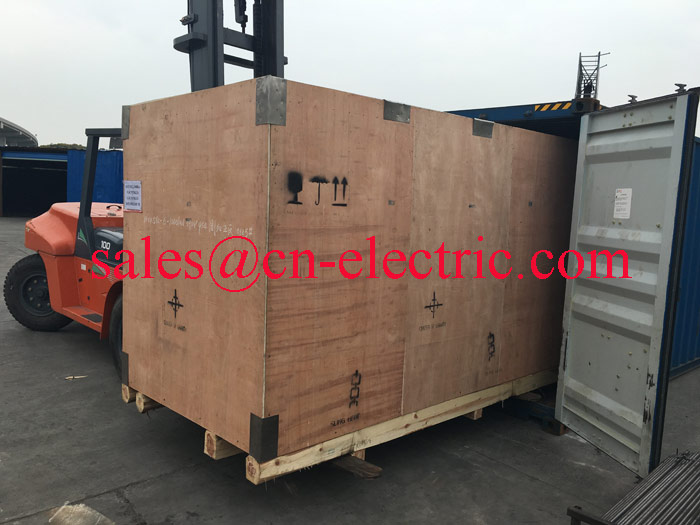

YRKK560-6 wound rotor slip ring motors in loading 40HC container
